QATM提供用于金相样品制备和分析的全系列高品质耗材。所有的耗材都经过全面测试和选择，完美匹配QATM设备。

在这个页面你可以申请报价。

请选择您想包括的项添加到你的询价单。你可以选择项目从任何产品页面。 你的询价单将会显示在网站的右上角。

通用咨询

不确定您需要那些项目或者您想要一个总报价?

给我们发送一般性咨询

Area
Category
Abrasive material
Diameter
Thickness
Bond
Type
Grit
Reset search

碳化硅精密切割轮

• for non-ferrous metals

Ø

厚度

内径

粘结剂

95017765

100 mm

0.5 mm

12.7 mm

树脂

5 pcs

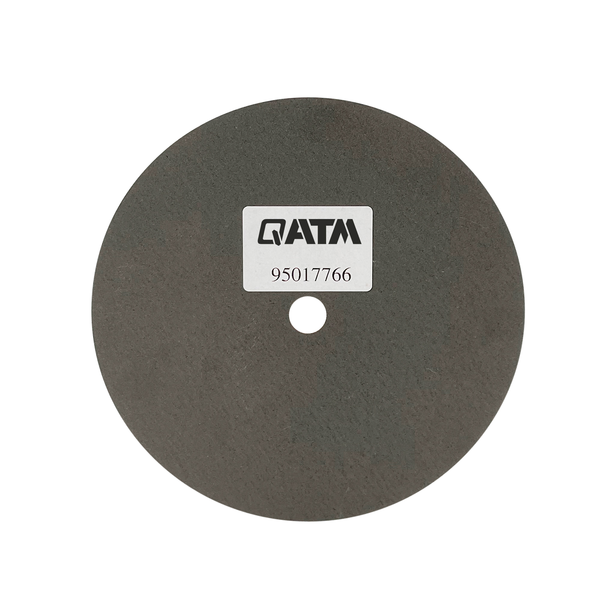

95017766

150 mm

0.8 mm

12.7 mm

树脂

5 pcs

92004998

150 mm

1 mm

12.7 mm

树脂

5 pcs

92004155

200 mm

1.5 mm

12.7 mm

树脂

5 pcs

* 每个订单可获取一个变径环

变径环

氧化铝精密切割轮

Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

Ø

厚度

内径

粘结剂

粒度

92002643

100 mm

0.25 mm

12.7 mm

Rubber

Fine grid

5 pcs

92002645

100 mm

0.4 mm

12.7 mm

Rubber

Fine grid

5 pcs

92002644

125 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

92002769

150 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

95014126

200 mm

0.45 mm

12.7 mm

Rubber

Fine grid

5 pcs

Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

Ø

厚度

内径

粘结剂

粒度

92002646

125 mm

0.8 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92002770

150 mm

0.6 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92002647

200 mm

0.8 mm

12.7 mm

Rubber

Coarse grid

5 pcs

92004159

150 mm

1 mm

12.7 mm

树脂

Coarse grid

5 pcs

Diamond precision cut-off wheels
Bond: Bronze

• for universal application and carbides

Ø

厚度

内径

粘结剂

粒度

92002397

75 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002401

100 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002405

125 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92002409

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

95016591

175 mm

0.65 mm

12.7 mm

Bronze

D213

1 pc

95004814

200 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

• for glass, minerals as well as brittle and hard ceramic materials

Ø

厚度

内径

粘结剂

粒度

92002398

75 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002402

100 mm

0.3 mm

12.7 mm

Bronze

D181

1 pc

92002406

125 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92002410

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

92006368

200 mm

0.6 mm

12.7 mm

Bronze

D213

1 pc

• for hard metals and hard ceramic materials

Ø

厚度

内径

粘结剂

粒度

95010518

150 mm

0.5 mm

12.7 mm

Bronze

D213

1 pc

95008773

150 mm

0.5 mm

12.7 mm

树脂

D213

1 pc

95015121

200 mm

1.0 mm

12.7 mm

Bronze

D151

1 pc

• for assembled printed circuit boards and filigree component geometries

Ø

厚度

内径

粘结剂

粒度

92002400

75 mm

0.3 mm

12.7 mm

Bronze

D91/107

1 pc

92002404

100 mm

0.3 mm

12.7 mm

Bronze

D91/107

1 pc

92002408

125 mm

0.5 mm

12.7 mm

Bronze

D91/107

1 pc

92002412

150 mm

0.5 mm

12.7 mm

Bronze

D91/107

1 pc

• for mounted samples, composites, CFRP, GFRP and plastics

Ø

厚度

内径

粘结剂

粒度

95012928

200 mm

1.0 mm

12.7 mm

Galvanic

D64

1 pc

95007077

200 mm

1.2 mm

12.7 mm

Galvanic

D126

1 pc

CBN精密切割轮
粘结剂: 青铜

• for composites and rigid materials

Ø

厚度

内径

92002444

125 mm

0.5 mm

12.7 mm

1 pc

92002445

150 mm

0.65 mm

12.7 mm

1 pc

92002446

175 mm

0.9 mm

12.7 mm

1 pc

92006419

200 mm

0.5 mm

12.7 mm

1 pc

其他尺寸需求，请致电垂询

Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

Ø

厚度

内径

95009083

150 mm

1.4 mm

12.7 mm

Premium silicon carbide cut-off wheels
Bond: Resin

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

Ø

厚度

内径

粘结剂

95012531

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012538

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012545

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012552

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012566

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012573

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

Ø

厚度

内径

粘结剂

92002417

230 mm

1.5 mm

32 mm

树脂

10 pcs

95012530

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012537

300 mm

2.0 mm

32 mm

树脂

10 pcs

92002427

350 mm

2.5 mm

32 mm

树脂

10 pcs

92002428

400 mm

3.0 mm

32 mm

树脂

10 pcs

for cut-off wheels with Ø 230 mm and 400 mm for titanium and titanium alloys, see type F aluminum oxide cut-off wheels

Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Ø

厚度

内径

粘结剂

95012529

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012536

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012543

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012550

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012564

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012571

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Ø

厚度

内径

粘结剂

95012528

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012535

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012542

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012549

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012563

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012570

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

Ø

厚度

内径

粘结剂

95017540

250 mm

1.5 mm

32 mm

树脂

10 pcs

95017541

300 mm

2.0 mm

32 mm

树脂

10 pcs

95017542

350 mm

2.5 mm

32 mm

树脂

10 pcs

95017543

400 mm

3.0 mm

32 mm

树脂

10 pcs

Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

Ø

厚度

内径

粘结剂

95012527

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012534

300 mm

2.2 mm

32 mm

树脂

10 pcs

95012541

350 mm

2.2 mm

32 mm

树脂

10 pcs

95012548

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012562

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012569

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

Ø

厚度

内径

粘结剂

95012526

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012533

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012540

350 mm

2.5 mm

32 mm

树脂

10 pcs

95012547

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012561

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012568

600 mm

4.5 mm

32 mm

树脂

5 pcs

Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

Ø

厚度

内径

粘结剂

95012525

250 mm

1.5 mm

32 mm

树脂

10 pcs

95012532

300 mm

2.0 mm

32 mm

树脂

10 pcs

95012539

350 mm

2.2 mm

32 mm

树脂

10 pcs

95012546

400 mm

3.0 mm

32 mm

树脂

10 pcs

95012560

500 mm

4.0 mm

32 mm

树脂

5 pcs

95012567

600 mm

4.5 mm

40 mm

树脂

5 pcs

Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

Ø

厚度

内径

粘结剂

92002413

229 mm

0.8 mm

32 mm

Rubber

10 pcs

92002599

254 mm

1.0 mm

32 mm

Rubber

10 pcs

92002441

305 mm

1.0 mm

32 mm

Rubber

10 pcs

92002436

356 mm

1.6 mm

32 mm

Rubber

10 pcs

92002439

400 mm

1.6 mm

32 mm

Rubber

10 pcs

92008537

500 mm

2.4 mm

32 mm

Rubber

10 pcs

92004007

600 mm

4.3 mm

40 mm

Rubber

10 pcs

Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Ø

厚度

内径

粘结剂

92002414

229 mm

1.6 mm

32 mm

Rubber

10 pcs

92002600

254 mm

1.6 mm

32 mm

Rubber

10 pcs

92002434

305 mm

1.6 mm

32 mm

Rubber

10 pcs

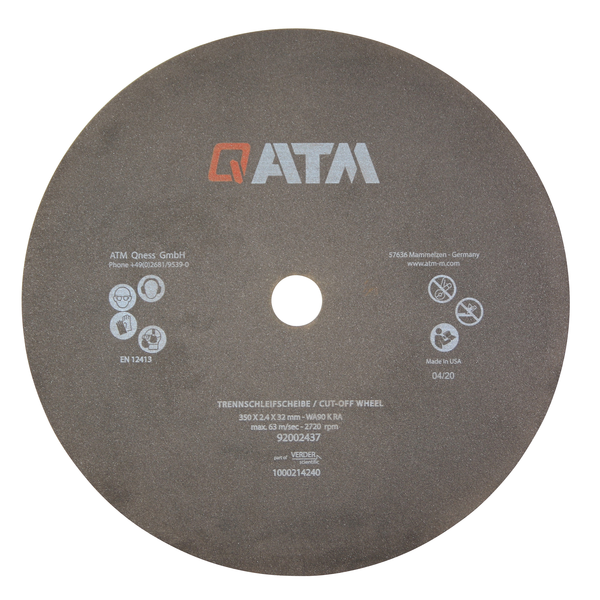

92002437

356 mm

2.4 mm

32 mm

Rubber

10 pcs

92002440

400 mm

2.4 mm

32 mm

Rubber

10 pcs

92008874

500 mm

3.0 mm

32 mm

Rubber

10 pcs

Premium diamond cut-off wheels
Bond: Bronze

• for ceramic materials

Ø

厚度

内径

粘结剂

粒度

92002452

250 mm

1.2 mm

32 mm

Bronze

D181

1 pc

92002453

300 mm

1.6 mm

32 mm

Bronze

D181

1 pc

95003433

350 mm

1.6 mm

32 mm

Bronze

D181

1 pc

92008751

400 mm

2.4 mm

32 mm

Bronze

D181/213

1 pc

• for composite materials (hard/soft combinations)

Ø

厚度

内径

粘结剂

粒度

95002102

250 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

92004719

300 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

92008619

350 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

95006793

400 mm

1.3 mm

32 mm

Bronze

D126/151

1 pc

其他尺寸需求，请致电垂询

Premium diamond cut-off wheels
Bond: Resin

• for hard metals, for materials with high hardness (>700 HV)

Ø

厚度

内径

粘结剂

粒度

92002451

250 mm

1.2 mm

32 mm

树脂

D126/151

1 pc

92002454

300 mm

1.6 mm

32 mm

树脂

D126

1 pc

95003049

350 mm

1.6 mm

32 mm

树脂

D126

1 pc

95010131

400 mm

1.6 mm

32 mm

树脂

D126

1 pc

其他尺寸需求，请致电垂询

优质CBN切割轮
粘结剂: 青铜

• for Nickel and Cobald based alloys

Ø

厚度

内径

粘结剂

92002456

250 mm

1.6 mm

32 mm

Bronze

1 pc

92002457

300 mm

1.6 mm

32 mm

Bronze

1 pc

95005025

350 mm

1.6 mm

32 mm

Bronze

1 pc

92004473

400 mm

1.6 mm

32 mm

Bronze

1 pc

Aluminum oxide cut-off wheels
Bond: Resin

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Ø

厚度

内径

粘结剂

92001554

250 mm

1.5 mm

32 mm

树脂

10 pcs

92001558

300 mm

2 mm

32 mm

树脂

10 pcs

92001669

350 mm

2 mm

32 mm

树脂

10 pcs

92001783

400 mm

3 mm

32 mm

树脂

10 pcs

Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Ø

厚度

内径

粘结剂

92001555

250 mm

1.5 mm

32 mm

树脂

10 pcs

92001559

300 mm

2 mm

32 mm

树脂

10 pcs

92001670

350 mm

2 mm

32 mm

树脂

10 pcs

92001784

400 mm

3 mm

32 mm

树脂

10 pcs

Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

Ø

厚度

内径

粘结剂

92006066

250 mm

1.6 mm

32 mm

树脂

10 pcs

92005863

300 mm

2 mm

32 mm

树脂

10 pcs

92005862

350 mm

2.5 mm

32 mm

树脂

10 pcs

92008504

400 mm

3 mm

32 mm

树脂

10 pcs

ATM-CoolCut, environment- and user-friendly

混合比例 1:25 (4%) – 1:17 (6%) /折射计: 2.0%/°Bx

• for steel, cast iron, light and non-ferrous metal, glass and ceramics, composites
• free of oil, boron, nitride and formaldehyde
• optimized anti-corrosion protection and cutting properties

95004145

ATM-CoolCut, 浓缩型

1 l

95004146

ATM-CoolCut, 浓缩型

5 l

95004147

ATM-CoolCut, 浓缩型

10 l

适用于聚合物和复合材料的防腐冷却液

混合比例: 1:66 (1.5%) - 1:33 (3%) / 折射计: 2.4%/°Bx

• optimized for polymers and composites
• free of nitride and oil
• also suitable for steels, non-ferrous metals, ceramics and glasses

95007864

浓缩型

1 l

防腐蚀冷却液，标准

混合比例 1:35 / 折射计: 1.4%/°Bx

• for steel, cast iron, non-ferrous metal

95014280

浓缩型

1 l

95014281

浓缩型

5 l

95014282

浓缩型

10 l

冷却液添加剂

ATM-CoolAdd CU

95008731

ATM-CoolAdd CU, additive for Cu/non-ferrous metal processing (0.05-0.2% dosage in ATM-CoolCut)
• reduces heavy metal ions concentration, protects surfaces, promotes filterability
• supports machine functionality	1 l

消泡剂

95014584 消泡剂,水基冷却液添加剂
水冷剂的混合浓度约为0.005-0.05% 清

95014583 消泡剂,水基冷却液添加剂
水冷剂的混合浓度约为0.005-0.05% 清

ATM-PreClean

92006502 ATM-PreClean, 清洁浓缩液/用于循环冷却系统和切割机的系统清洁剂

冷却剂维护保养附件

维护和测试套装

95007866

维护和测试防腐冷却液的套装(装有手持式折光仪，抽取样品的塑料杯，试纸和温度计的盒子)

1 pc

维护和测试套装的附件

92005616

PH试纸

100 pcs

92005613

硝酸盐试纸

100 pcs

92005614

亚硝酸盐试纸

100 pcs

95007865

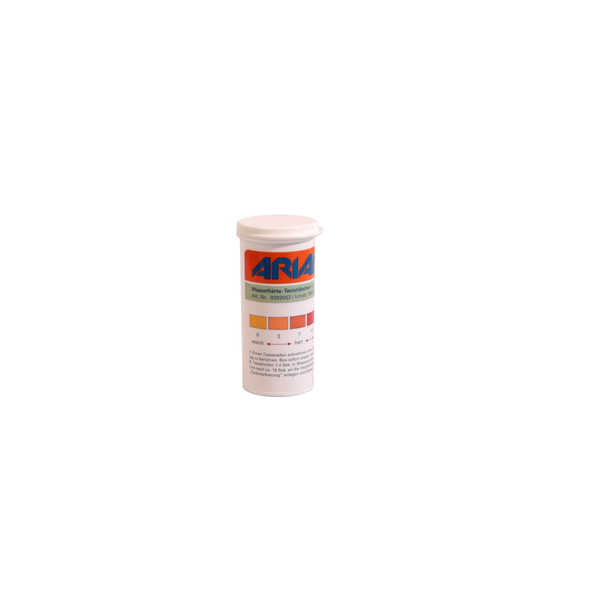

水硬度试纸

100 pcs

切割机维护保养所需附件

防腐护理喷雾

95016408

防腐护理喷雾，全方位无硅防腐油，适用于金属表面（例如夹具）

400 ml

防雾护理喷雾

95008900

防雾护理喷雾（预防因冷却液溅射而导致视窗雾化）

100 ml

切割轮附件

磨刀石

92002460

适用于金刚石切割轮，CBN切割轮和研磨杯轮的磨刀石

1 pc

过滤袋

适用于Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 /
Qcut 500 A (Brillant 275) / Brillant 280

尺寸

网孔尺寸

95017301

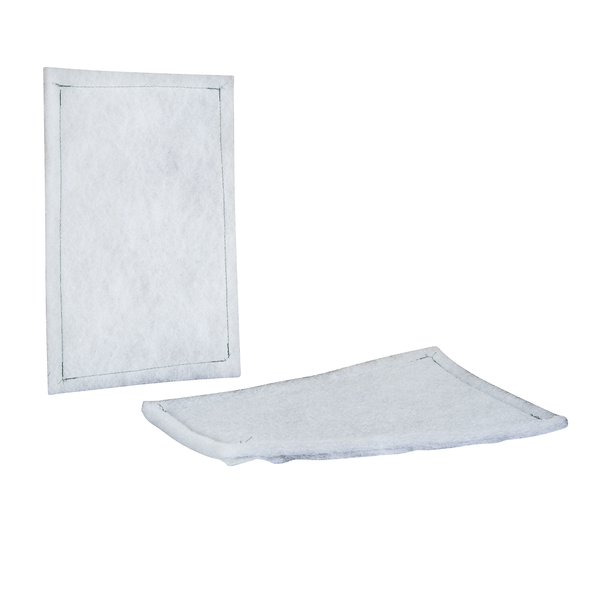

过滤棉片

490 x 290 x 190 mm

60 µm

5 pcs

95017302

过滤棉片

490 x 290 x 190 mm

100 µm

5 pcs

95017303

过滤棉片

490 x 290 x 190 mm

800 µm

5 pcs

for recirculation cooling system 45 Ltr.
(until year of construction 2012)

尺寸

网孔尺寸

95017304

过滤棉片

290 x 150 x 190 mm

60 µm

(until year of construction 2012)

5 pcs

95017305

过滤棉片

290 x 150 x 190 mm

100 µm

(until year of construction 2012)

5 pcs

95017306

过滤棉片

290 x 150 x 190 mm

800 µm

(until year of construction 2012)

5 pcs

for recirculation cooling system 45 Ltr.
(from year of construction 2013)

尺寸

网孔尺寸

95017307

过滤棉片

250 x 200 x 155 mm

60 µm

(as of year of construction 2013)

5 pcs

95017308

过滤棉片

250 x 200 x 155 mm

100 µm

(as of year of construction 2013)

5 pcs

95017309

过滤棉片

250 x 200 x 155 mm

800 µm

(as of year of construction 2013)

5 pcs

过滤篮

hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

尺寸(宽x高x深)

Z5800008

过滤篮

140 x 80 x 200 mm

1 pc

带式过滤系统所用滤网

适用于带式过滤系统 BFA 285

长 x 宽

92008780

滤网卷，粗孔，150μm

100 m x 710 mm

1 pc

适用于带式过滤系统 BFA 100/130

长 x 宽

95001696

滤网卷，粗孔，150μm

100 m x 420 mm

1 pc

其他尺寸需求请致电咨询

过滤棉片用于循环
冷却系统

适用于Qcut 800 A (Brillant 2000)

长 x 宽

95016233

过滤棉片

940 x 720 mm

5 pcs

适用于Qcut 600 A (Brillant 285)

长 x 宽

95016231

过滤棉片

724 x 720 mm

5 pcs

for recirculation cooling system 15 Ltr.

长 x 宽

95017314

过滤棉片

235 x 148 mm

5 pcs

耗材 用于完美的金相样品制备

在这个页面你可以申请报价。

通用咨询

碳化硅精密切割轮

• for non-ferrous metals

变径环

氧化铝精密切割轮

Fine-grained• for universal application of materials of higher hardness• precise cuts and high surface quality• optimal for delicate samples and sensitive materials

Coarse-grained• for universal use with lower hardness materials• ideal for rough geometries and mounted sample material• fast and efficient cuts

Diamond precision cut-off wheelsBond: Bronze

• for universal application and carbides

• for glass, minerals as well as brittle and hard ceramic materials

• for hard metals and hard ceramic materials

• for assembled printed circuit boards and filigree component geometries

• for mounted samples, composites, CFRP, GFRP and plastics

CBN精密切割轮粘结剂: 青铜

• for composites and rigid materials

Saw blade precision cut-off wheel

• for plastics, non-ferrous metals

Premium silicon carbide cut-off wheelsBond: Resin

Type NF-A, Purple• for non-ferrous metals (30-300HV)

Type Ti-A, Pink • for titanium and alloys, refractory metals (30-300 HV)

Type FS-A, Red• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Type FS-B, Orange • for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Type FS-FR, fabric reinforced• for medium soft to hard steels (250-600 HV)• > 30% wear reduction• ideal for manual cutting

Type FS-C, Yellow• for medium hard steel (300-550HV), case hardened, nitrided steels

Type FS-D, Green • for hard steels (400-700HV), annealed, carburised steels

Type FS-E, Blue • for very hard steels (>650 HV), e.g., CrV, manganese steel

Type A, Brown• universal wheel, soft and hard metals, superalloys (50-500 HV)

Type B, Black • for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Premium diamond cut-off wheelsBond: Bronze

• for ceramic materials

• for composite materials (hard/soft combinations)

Premium diamond cut-off wheelsBond: Resin

• for hard metals, for materials with high hardness (>700 HV)

优质CBN切割轮粘结剂: 青铜

• for Nickel and Cobald based alloys

Aluminum oxide cut-off wheelsBond: Resin

Type C• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Type D• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Type I • ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

ATM-CoolCut, environment- and user-friendly

适用于聚合物和复合材料的防腐冷却液

防腐蚀冷却液，标准

冷却液添加剂

ATM-CoolAdd CU

消泡剂

ATM-PreClean

冷却剂维护保养附件

维护和测试套装

维护和测试套装的附件

切割机维护保养所需附件

防腐护理喷雾

防雾护理喷雾

切割轮附件

磨刀石

过滤袋

适用于Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 / Qcut 500 A (Brillant 275) / Brillant 280

for recirculation cooling system 45 Ltr. (until year of construction 2012)

for recirculation cooling system 45 Ltr. (from year of construction 2013)

过滤篮

hanging basket made of stainless steel for the collection of the chip abrasion• can be hooked into 45 liter recirculating cooling unit

带式过滤系统所用滤网

适用于带式过滤系统 BFA 285

适用于带式过滤系统 BFA 100/130

过滤棉片用于循环冷却系统

适用于Qcut 800 A (Brillant 2000)

适用于Qcut 600 A (Brillant 285)

for recirculation cooling system 15 Ltr.

耗材用于完美的金相样品制备

Fine-grained
• for universal application of materials of higher hardness
• precise cuts and high surface quality
• optimal for delicate samples and sensitive materials

Coarse-grained
• for universal use with lower hardness materials
• ideal for rough geometries and mounted sample material
• fast and efficient cuts

Diamond precision cut-off wheels
Bond: Bronze

CBN精密切割轮
粘结剂: 青铜

Premium silicon carbide cut-off wheels
Bond: Resin

Type NF-A, Purple
• for non-ferrous metals (30-300HV)

Type Ti-A, Pink
• for titanium and alloys, refractory metals (30-300 HV)

Type FS-A, Red
• for soft steel (30-300HV), non-ferrous metals, polymer (e.g., PMMA, PEEK, PTFE) due to hard bonding

Type FS-B, Orange
• for medium soft steel (200-450HV) e.g. unalloyed structural steels and low-alloy steels

Type FS-FR, fabric reinforced
• for medium soft to hard steels (250-600 HV)
• > 30% wear reduction
• ideal for manual cutting

Type FS-C, Yellow
• for medium hard steel (300-550HV), case hardened, nitrided steels

Type FS-D, Green
• for hard steels (400-700HV), annealed, carburised steels

Type FS-E, Blue
• for very hard steels (>650 HV), e.g., CrV, manganese steel

Type A, Brown
• universal wheel, soft and hard metals, superalloys (50-500 HV)

Type B, Black
• for high-speed steels, heat-treated steels, non-corrosive steels (400-700 HV)

Premium diamond cut-off wheels
Bond: Bronze

Premium diamond cut-off wheels
Bond: Resin

优质CBN切割轮
粘结剂: 青铜

Aluminum oxide cut-off wheels
Bond: Resin

Type C
• universally applicable for materials of high and very high hardness (>600 HV), e.g., martensitic stainless steels, WC-Co, carbide

Type D
• universally applicable for medium material hardness and case-hardened steels (350-600 HV), e.g., tempered steel 42CrMo4, CuSn8

Type I
• ideal for cutting structural steel (e.g., S235JR, S355J2, C45) and cast materials (e.g., ductile iron, gray cast iron, cast steel) (60-350 HV)

适用于Brillant 255 / Qcut 400 A (Brillant 265) / Brillant 270 /
Qcut 500 A (Brillant 275) / Brillant 280

for recirculation cooling system 45 Ltr.
(until year of construction 2012)

for recirculation cooling system 45 Ltr.
(from year of construction 2013)

hanging basket made of stainless steel for the collection of the chip abrasion
• can be hooked into 45 liter recirculating cooling unit

过滤棉片用于循环
冷却系统
