硬度测试耗材 用于完美的金相样品制备

联系我们资料下载
生成PDF

语言:

通过QPREP，QATM提供用于金相样品制备和分析的全系列高品质耗材。所有的耗材都经过全面测试和选择，完美匹配QATM设备。

在这个页面你可以申请报价。

请选择您想包括的项添加到你的询价单。你可以选择项目从任何产品页面。 你的询价单将会显示在网站的右上角。

通用咨询

不确定您需要那些项目或者您想要一个总报价?

给我们发送一般性咨询
  • Reset search


布氏标准硬度块
(DIN EN ISO 6506-3, ASTM E10)



根据ASTM E10标准的额外证书需支付附加费

Test procedureTest method材质HardnessDimensions (mm)


HBW 10 / 500

HB1005080A
布氏HBW 10/500铝HW approx. 80150x100x16


HBW 10 / 1000

HB1010080A
布氏HBW 10/1000铝HW approx. 80150x100x16
HB1010110A
布氏HBW 10/1000铝HW approx. 110150x100x16
HB1010130A
布氏HBW 10/1000铝HW approx. 130150x100x16
HB1010170A
布氏HBW 10/1000铝HW approx. 170150x100x16
HB1010200A
布氏HBW 10/1000钢HW approx. 200150x100x16


HBW 10 / 1500

HB1015080A
布氏HBW 10/1500铝HW approx. 80150x100x16
HB1015110A
布氏HBW 10/1500铝HW approx. 110150x100x16
HB1015130A
布氏HBW 10/1500铝HW approx. 130150x100x16
HB1015170A
布氏HBW 10/1500铝HW approx. 170150x100x16
HB1015200A
布氏HBW 10/1500钢HW approx. 200150x100x16
HB1015250A
布氏HBW 10/1500钢HW approx. 250150x100x16
HB1015300A
布氏HBW 10/1500钢HW approx. 300150x100x16


HBW 10 / 3000

HB1030110A
布氏HBW 10/3000铝HW approx. 110150x100x16
HB1030130A
布氏HBW 10/3000铝HW approx. 130150x100x16
HB1030170A
布氏HBW 10/3000铝HW approx. 170150x100x16
HB1030200A
布氏HBW 10/3000钢HW approx. 200150x100x16
HB1030250A
布氏HBW 10/3000钢HW approx. 250150x100x16
HB1030300A
布氏HBW 10/3000钢HW approx. 300150x100x16
HB1030350A
布氏HBW 10/3000钢HW approx. 350150x100x16
HB1030400A
布氏HBW 10/3000钢HW approx. 400150x100x16
HB1030450A
布氏HBW 10/3000钢HW approx. 450150x100x16
HB1030500A
布氏HBW 10/3000钢HW approx. 500150x100x16
HB1030550A
布氏HBW 10/3000钢HW approx. 550150x100x16
HB1030600A
布氏HBW 10/3000钢HW approx. 600150x100x16
HB1030650A
布氏HBW 10/3000钢HW approx. 650150x100x16


HBW 5 / 125

HB0505080A
布氏HBW 5/125铝HW approx. 80150x100x16


根据ASTM E10标准的额外证书需支付附加费

HBW材质HW Dimensions (mm)


HBW 5 / 250

HB0510080A布氏, HBW 5/250, 铝, HW approx. 80, 150x100x16
HB0510110A布氏, HBW 5/250, 铝, HW approx. 110, 150x100x16
HB0510130A布氏, HBW 5/250, 铝, HW approx. 130, 150x100x16
HB0510170A布氏, HBW 5/250, 铝, HW approx. 170, 150x100x16
HB0510200A布氏, HBW 5/250, 钢, HW approx. 200, 150x100x16


HBW 5 / 750

HB0530110A布氏, HBW 5/750, 铝, HW approx. 110, 150x100x16
HB0530130A布氏, HBW 5/750, 铝, HW approx. 130, 150x100x16
HB0530170A布氏, HBW 5/750, 铝, HW approx. 170, 150x100x16
HB0530200A布氏, HBW 5/750, 钢, HW approx. 200, 150x100x16
HB0530250A布氏, HBW 5/750, 钢, HW approx. 250, 150x100x16
HB0530300A布氏, HBW 5/750, 钢, HW approx. 300, 150x100x16
HB0530350A布氏, HBW 5/750, 钢, HW approx. 350, 150x100x16
HB0530400A布氏, HBW 5/750, 钢, HW approx. 400, 150x100x16
HB0530450A布氏, HBW 5/750, 钢, HW approx. 450, 150x100x16
HB0530500A布氏, HBW 5/750, 钢, HW approx. 500, 150x100x16
HB0530550A布氏, HBW 5/750, 钢, HW approx. 550, 150x100x16
HB0530600A布氏, HBW 5/750, 钢, HW approx. 600, 150x100x16
HB0530650A布氏, HBW 5/750, 钢, HW approx. 650, 150x100x16


HBW 2.5 / 31.25

HB2505080C
布氏HBW 2.5/31.25铝HW approx. 8060x60x16


HBW 2.5 / 62.5

HB2510080C
布氏HBW 2.5/62.5铝HW approx. 8060x60x16
HB2510110C
布氏HBW 2.5/62.5铝HW approx. 11060x60x16
HB2510130C
布氏HBW 2.5/62.5铝HW approx. 13060x60x16
HB2510170C
布氏HBW 2.5/62.5铝HW approx. 17060x60x16
HB2510200C
布氏HBW 2.5/62.5钢HW approx. 20060x60x16


HBW 2.5 / 187.5

HB2530110C
布氏HBW 2.5/187.5铝HW approx. 11060x60x16
HB2530130C
布氏HBW 2.5/187.5铝HW approx. 13060x60x16
HB2530170C
布氏HBW 2.5/187.5铝HW approx. 17060x60x16
HB2530200C
布氏HBW 2.5/187.5钢HW approx. 20060x60x16
HB2530250C
布氏HBW 2.5/187.5钢HW approx. 25060x60x16
HB2530300C
布氏HBW 2.5/187.5钢HW approx. 30060x60x16
HB2530350C
布氏HBW 2.5/187.5钢HW approx. 35060x60x16
HB2530400C
布氏HBW 2.5/187.5钢HW approx. 40060x60x16
HB2530450C
布氏HBW 2.5/187.5钢HW approx. 45060x60x16
HB2530500C
布氏HBW 2.5/187.5钢HW approx. 50060x60x16
HB2530550C
布氏HBW 2.5/187.5钢HW approx. 55060x60x16
HB2530600C
布氏HBW 2.5/187.5钢HW approx. 60060x60x16
HB2530650C
布氏HBW 2.5/187.5钢HW approx. 65060x60x16


根据ASTM E10标准的额外证书需支付附加费



HBW 1 / 5

HB0105080C
布氏HBW 1/5铝HW approx. 8060x60x16


HBW 1 / 10

HB0110080C
布氏HBW 1/10铝HW approx. 8060x60x16
HB0110110C
布氏HBW 1/10铝HW approx. 11060x60x16
HB0110130C
布氏HBW 1/10铝HW approx. 13060x60x16
HB0110170C
布氏HBW 1/10铝HW approx. 17060x60x16
HB0110200C
布氏HBW 1/10钢HW approx. 20060x60x16


HBW 1 / 30

HB0130110C
布氏HBW 1/30铝HW approx. 11060x60x16
HB0130130C
布氏HBW 1/30铝HW approx. 13060x60x16
HB0130170C
布氏HBW 1/30铝HW approx. 17060x60x16
HB0130200C
布氏HBW 1/30钢HW approx. 20060x60x16
HB0130250C
布氏HBW 1/30钢HW approx. 25060x60x16
HB0130300C
布氏HBW 1/30钢HW approx. 30060x60x16
HB0130350C
布氏HBW 1/30钢HW approx. 35060x60x16
HB0130400C
布氏HBW 1/30钢HW approx. 40060x60x16
HB0130450C
布氏HBW 1/30钢HW approx. 45060x60x16
HB0130500C
布氏HBW 1/30钢HW approx. 50060x60x16
HB0130550C
布氏HBW 1/30钢HW approx. 55060x60x16
HB0130600C
布氏HBW 1/30钢HW approx. 60060x60x16
HB0130650C
布氏HBW 1/30钢HW approx. 65060x60x16


努氏标准硬度块
(DIN EN ISO 4545-3, ASTM E92)



根据ASTM E10标准的额外证书需支付附加费

Test procedureTest method材质HardnessDimensions (mm)


HK 0.01

HKG010200E
努氏HK 0.01钢HW approx. 20030x30x6
HKG010250E
努氏HK 0.01钢HW approx. 25030x30x6
HKG010300E
努氏HK 0.01钢HW approx. 30030x30x6
HKG010350E
努氏HK 0.01钢HW approx. 35030x30x6


HK 0.015

HKG015200E
努氏HK 0.015钢HW approx. 20030x30x6
HKG015250E
努氏HK 0.015钢HW approx. 25030x30x6
HKG015300E
努氏HK 0.015钢HW approx. 30030x30x6
HKG015350E
努氏HK 0.015钢HW approx. 35030x30x6
HKG015400E
努氏HK 0.015钢HW approx. 40030x30x6
HKG015450E
努氏HK 0.015钢HW approx. 45030x30x6
HKG015500E
努氏HK 0.015钢HW approx. 50030x30x6


HK 0.02

HKG020200E
努氏HK 0.02钢HW approx. 20030x30x6
HKG020250E
努氏HK 0.02钢HW approx. 25030x30x6
HKG020300E
努氏HK 0.02钢HW approx. 30030x30x6
HKG020350E
努氏HK 0.02钢HW approx. 35030x30x6
HKG020400E
努氏HK 0.02钢HW approx. 40030x30x6
HKG020450E
努氏HK 0.02钢HW approx. 45030x30x6
HKG020500E
努氏HK 0.02钢HW approx. 50030x30x6
HKG020550E
努氏HK 0.02钢HW approx. 55030x30x6
HKG020600E
努氏HK 0.02钢HW approx. 60030x30x6
HKG020650E
努氏HK 0.02钢HW approx. 65030x30x6
HKG020700E
努氏HK 0.02钢HW approx. 70030x30x6


HK 0.025

HKG025200E
努氏HK 0.025钢HW approx. 20030x30x6
HKG025250E
努氏HK 0.025钢HW approx. 25030x30x6
HKG025300E
努氏HK 0.025钢HW approx. 30030x30x6
HKG025350E
努氏HK 0.025钢HW approx. 35030x30x6
HKG025400E
努氏HK 0.025钢HW approx. 40030x30x6
HKG025450E
努氏HK 0.025钢HW approx. 45030x30x6
HKG025500E
努氏HK 0.025钢HW approx. 50030x30x6
HKG025550E
努氏HK 0.025钢HW approx. 55030x30x6
HKG025600E
努氏HK 0.025钢HW approx. 60030x30x6
HKG025650E
努氏HK 0.025钢HW approx. 65030x30x6
HKG025700E
努氏HK 0.025钢HW approx. 70030x30x6
HKG025750E
努氏HK 0.025钢HW approx. 75030x30x6
HKG025800E
努氏HK 0.025钢HW approx. 80030x30x6
HKG025850E
努氏HK 0.025钢HW approx. 85030x30x6


根据ASTM E10标准的额外证书需支付附加费



HK 0.05

HKG050200E
努氏HK 0.05钢HW approx. 20030x30x6
HKG050250E
努氏HK 0.05钢HW approx. 25030x30x6
HKG050300E
努氏HK 0.05钢HW approx. 30030x30x6
HKG050350E
努氏HK 0.05钢HW approx. 35030x30x6
HKG050400E
努氏HK 0.05钢HW approx. 40030x30x6
HKG050450E
努氏HK 0.05钢HW approx. 45030x30x6
HKG050500E
努氏HK 0.05钢HW approx. 50030x30x6
HKG050550E
努氏HK 0.05钢HW approx. 55030x30x6
HKG050600E
努氏HK 0.05钢HW approx. 60030x30x6
HKG050650E
努氏HK 0.05钢HW approx. 65030x30x6
HKG050700E
努氏HK 0.05钢HW approx. 70030x30x6
HKG050750E
努氏HK 0.05钢HW approx. 75030x30x6
HKG050800E
努氏HK 0.05钢HW approx. 80030x30x6
HKG050850E
努氏HK 0.05钢HW approx. 85030x30x6
HKG050900E
努氏HK 0.05钢HW approx. 90030x30x6


HK 0.1

HKG100200E
努氏HK 0.1钢HW approx. 20030x30x6
HKG100250E
努氏HK 0.1钢HW approx. 25030x30x6
HKG100300E
努氏HK 0.1钢HW approx. 30030x30x6
HKG100350E
努氏HK 0.1钢HW approx. 35030x30x6
HKG100400E
努氏HK 0.1钢HW approx. 40030x30x6
HKG100450E
努氏HK 0.1钢HW approx. 45030x30x6
HKG100500E
努氏HK 0.1钢HW approx. 50030x30x6
HKG100550E
努氏HK 0.1钢HW approx. 55030x30x6
HKG100600E
努氏HK 0.1钢HW approx. 60030x30x6
HKG100650E
努氏HK 0.1钢HW approx. 65030x30x6
HKG100700E
努氏HK 0.1钢HW approx. 70030x30x6
HKG100750E
努氏HK 0.1钢HW approx. 75030x30x6
HKG100800E
努氏HK 0.1钢HW approx. 80030x30x6
HKG100850E
努氏HK 0.1钢HW approx. 85030x30x6
HKG100900E
努氏HK 0.1钢HW approx. 90030x30x6


HK 0.2

HKG200200E
努氏HK 0.2钢HW approx. 20030x30x6
HKG200250E
努氏HK 0.2钢HW approx. 25030x30x6
HKG200300E
努氏HK 0.2钢HW approx. 30030x30x6
HKG200350E
努氏HK 0.2钢HW approx. 35030x30x6
HKG200400E
努氏HK 0.2钢HW approx. 40030x30x6
HKG200450E
努氏HK 0.2钢HW approx. 45030x30x6
HKG200500E
努氏HK 0.2钢HW approx. 50030x30x6
HKG200550E
努氏HK 0.2钢HW approx. 55030x30x6
HKG200600E
努氏HK 0.2钢HW approx. 60030x30x6
HKG200650E
努氏HK 0.2钢HW approx. 65030x30x6
HKG200700E
努氏HK 0.2钢HW approx. 70030x30x6
HKG200750E
努氏HK 0.2钢HW approx. 75030x30x6
HKG200800E
努氏HK 0.2钢HW approx. 80030x30x6
HKG200850E
努氏HK 0.2钢HW approx. 85030x30x6
HKG200900E
努氏HK 0.2钢HW approx. 90030x30x6


根据ASTM E10标准的额外证书需支付附加费



HK 0.3

HKG300200E
努氏HK 0.3钢HW approx. 20030x30x6
HKG300250E
努氏HK 0.3钢HW approx. 25030x30x6
HKG300300E
努氏HK 0.3钢HW approx. 30030x30x6
HKG300350E
努氏HK 0.3钢HW approx. 35030x30x6
HKG300400E
努氏HK 0.3钢HW approx. 40030x30x6
HKG300450E
努氏HK 0.3钢HW approx. 45030x30x6
HKG300500E
努氏HK 0.3钢HW approx. 50030x30x6
HKG300550E
努氏HK 0.3钢HW approx. 55030x30x6
HKG300600E
努氏HK 0.3钢HW approx. 60030x30x6
HKG300650E
努氏HK 0.3钢HW approx. 65030x30x6
HKG300700E
努氏HK 0.3钢HW approx. 70030x30x6
HKG300750E
努氏HK 0.3钢HW approx. 75030x30x6
HKG300800E
努氏HK 0.3钢HW approx. 80030x30x6
HKG300850E
努氏HK 0.3钢HW approx. 85030x30x6
HKG300900E
努氏HK 0.3钢HW approx. 90030x30x6


HK 0.5

HKG500200E
努氏HK 0.5钢HW approx. 20030x30x6
HKG500250E
努氏HK 0.5钢HW approx. 25030x30x6
HKG500300E
努氏HK 0.5钢HW approx. 30030x30x6
HKG500350E
努氏HK 0.5钢HW approx. 35030x30x6
HKG500400E
努氏HK 0.5钢HW approx. 40030x30x6
HKG500450E
努氏HK 0.5钢HW approx. 45030x30x6
HKG500500E
努氏HK 0.5钢HW approx. 50030x30x6
HKG500550E
努氏HK 0.5钢HW approx. 55030x30x6
HKG500600E
努氏HK 0.5钢HW approx. 60030x30x6
HKG500650E
努氏HK 0.5钢HW approx. 65030x30x6
HKG500700E
努氏HK 0.5钢HW approx. 70030x30x6
HKG500750E
努氏HK 0.5钢HW approx. 75030x30x6
HKG500800E
努氏HK 0.5钢HW approx. 80030x30x6
HKG500850E
努氏HK 0.5钢HW approx. 85030x30x6
HKG500900E
努氏HK 0.5钢HW approx. 90030x30x6


根据ASTM E10标准的额外证书需支付附加费



HK 1

HKK001200E
努氏HK 1钢HW approx. 20030x30x6
HKK001250E
努氏HK 1钢HW approx. 25030x30x6
HKK001300E
努氏HK 1钢HW approx. 30030x30x6
HKK001350E
努氏HK 1钢HW approx. 35030x30x6
HKK001400E
努氏HK 1钢HW approx. 40030x30x6
HKK001450E
努氏HK 1钢HW approx. 45030x30x6
HKK001500E
努氏HK 1钢HW approx. 50030x30x6
HKK001550E
努氏HK 1钢HW approx. 55030x30x6
HKK001600E
努氏HK 1钢HW approx. 60030x30x6
HKK001650E
努氏HK 1钢HW approx. 65030x30x6
HKK001700E
努氏HK 1钢HW approx. 70030x30x6
HKK001750E
努氏HK 1钢HW approx. 75030x30x6
HKK001800E
努氏HK 1钢HW approx. 80030x30x6
HKK001850E
努氏HK 1钢HW approx. 85030x30x6
HKK001900E
努氏HK 1钢HW approx. 90030x30x6


HK 2

HKK002200E
努氏HK 2钢HW approx. 20030x30x6
HKK002250E
努氏HK 2钢HW approx. 25030x30x6
HKK002300E
努氏HK 2钢HW approx. 30030x30x6
HKK002350E
努氏HK 2钢HW approx. 35030x30x6
HKK002400E
努氏HK 2钢HW approx. 40030x30x6
HKK002450E
努氏HK 2钢HW approx. 45030x30x6
HKK002500E
努氏HK 2钢HW approx. 50030x30x6
HKK002550E
努氏HK 2钢HW approx. 55030x30x6
HKK002600E
努氏HK 2钢HW approx. 60030x30x6
HKK002650E
努氏HK 2钢HW approx. 65030x30x6
HKK002700E
努氏HK 2钢HW approx. 70030x30x6
HKK002750E
努氏HK 2钢HW approx. 75030x30x6
HKK002800E
努氏HK 2钢HW approx. 80030x30x6
HKK002850E
努氏HK 2钢HW approx. 85030x30x6
HKK002900E
努氏HK 2钢HW approx. 90030x30x6


洛氏标准硬度块
(DIN EN ISO 6508-3, ASTM E18)



根据ASTM E10标准的额外证书需支付附加费

Test procedureTest method材质HardnessDimensions (mm)


HRA

HR0HRA029C
洛氏HRA铝HW approx. 2960x60x16
HR0HRA040C
洛氏HRA铝HW approx. 4060x60x16
HR0HRA045C
洛氏HRA铝HW approx. 4560x60x16
HR0HRA053C
洛氏HRA铝HW approx. 5360x60x16
HR0HRA057C
洛氏HRA钢HW approx. 5760x60x16
HR0HRA060C
洛氏HRA钢HW approx. 6060x60x16
HR0HRA062C
洛氏HRA钢HW approx. 6260x60x16
HR0HRA066C
洛氏HRA钢HW approx. 6660x60x16
HR0HRA069C
洛氏HRA钢HW approx. 6960x60x16
HR0HRA071C
洛氏HRA钢HW approx. 7160x60x16
HR0HRA073C
洛氏HRA钢HW approx. 7360x60x16
HR0HRA075C
洛氏HRA钢HW approx. 7560x60x16
HR0HRA077C
洛氏HRA钢HW approx. 7760x60x16
HR0HRA079C
洛氏HRA钢HW approx. 7960x60x16
HR0HRA080C
洛氏HRA钢HW approx. 8060x60x16
HR0HRA081C
洛氏HRA钢HW approx. 8160x60x16
HR0HRA082C
洛氏HRA钢HW approx. 8260x60x16
HR0HRA083C
洛氏HRA钢HW approx. 8360x60x16
HR0HRA084C
洛氏HRA钢HW approx. 8460x60x16
HR0HRA085C
洛氏HRA钢HW approx. 8560x60x16


HRB

HR0HRB032C
洛氏HRB铝HW approx. 3260x60x16
HR0HRB060C
洛氏HRB铝HW approx. 6060x60x16
HR0HRB072C
洛氏HRB铝HW approx. 7260x60x16
HR0HRB086C
洛氏HRB铝HW approx. 8660x60x16
HR0HRB094C
洛氏HRB钢HW approx. 9460x60x16
HR0HRB098C
洛氏HRB钢HW approx. 9860x60x16


HRC

HR0HRC015C
洛氏HRC钢HW approx. 1560x60x16
HR0HRC019C
洛氏HRC钢HW approx. 1960x60x16
HR0HRC024C
洛氏HRC钢HW approx. 2460x60x16
HR0HRC031C
洛氏HRC钢HW approx. 3160x60x16
HR0HRC037C
洛氏HRC钢HW approx. 3760x60x16
HR0HRC041C
洛氏HRC钢HW approx. 4160x60x16
HR0HRC046C
洛氏HRC钢HW approx. 4660x60x16
HR0HRC049C
洛氏HRC钢HW approx. 4960x60x16
HR0HRC052C
洛氏HRC钢HW approx. 5260x60x16
HR0HRC055C
洛氏HRC钢HW approx. 5560x60x16
HR0HRC058C
洛氏HRC钢HW approx. 5860x60x16
HR0HRC060C
洛氏HRC钢HW approx. 6060x60x16
HR0HRC062C
洛氏HRC钢HW approx. 6260x60x16
HR0HRC063C
洛氏HRC钢HW approx. 6360x60x16
HR0HRC064C
洛氏HRC钢HW approx. 6460x60x16
HR0HRC065C
洛氏HRC钢HW approx. 6560x60x16
HR0HRC066C
洛氏HRC钢HW approx. 6660x60x16
HR0HRC068C
洛氏HRC钢HW approx. 6860x60x16


根据ASTM E10标准的额外证书需支付附加费



HRD

HR0HRD045C
洛氏HRD铝HW approx. 4560x60x16
HR0HRD059C
洛氏HRD铝HW approx. 5960x60x16
HR0HRD065C
洛氏HRD钢HW approx. 6560x60x16
HR0HRD069C
洛氏HRD钢HW approx. 6960x60x16
HR0HRD072C
洛氏HRD钢HW approx. 7260x60x16


HRE

HR0HRE088C
洛氏HRE铝HW approx. 8860x60x16
HR0HRE100C
洛氏HRE铝HW approx. 10060x60x16


HRF

HR0HRF077C
洛氏HRF铝HW approx. 7760x60x16
HR0HRF092C
洛氏HRF铝HW approx. 9260x60x16
HR0HRF098C
洛氏HRF铝HW approx. 9860x60x16


HR15N

HR015N070C
洛氏HR15N钢HW approx. 7060x60x16
HR015N075C
洛氏HR15N钢HW approx. 7560x60x16
HR015N078C
洛氏HR15N钢HW approx. 7860x60x16
HR015N081C
洛氏HR15N钢HW approx. 8160x60x16
HR015N083C
洛氏HR15N钢HW approx. 8360x60x16
HR015N085C
洛氏HR15N钢HW approx. 8560x60x16
HR015N086C
洛氏HR15N钢HW approx. 8660x60x16
HR015N088C
洛氏HR15N钢HW approx. 8860x60x16
HR015N089C
洛氏HR15N钢HW approx. 8960x60x16
HR015N090C
洛氏HR15N钢HW approx. 9060x60x16
HR015N091C
洛氏HR15N钢HW approx. 9160x60x16
HR015N092C
洛氏HR15N钢HW approx. 9260x60x16
HR015N093C
洛氏HR15N钢HW approx. 9360x60x16


HR15T

HR015T072C
洛氏HR15T铝HW approx. 7260x60x16
HR015T080C
洛氏HR15T铝HW approx. 8060x60x16
HR015T084C
洛氏HR15T铝HW approx. 8460x60x16
HR015T088C
洛氏HR15T铝HW approx. 8860x60x16
HR015T090C
洛氏HR15T钢HW approx. 9060x60x16
HR015T091C
洛氏HR15T钢HW approx. 9160x60x16
HR015T092C
洛氏HR15T钢HW approx. 9260x60x16
HR015T094C
洛氏HR15T钢HW approx. 9460x60x16


根据ASTM E10标准的额外证书需支付附加费



HR30N

HR030N043C
洛氏HR30N钢HW approx. 4360x60x16
HR030N050C
洛氏HR30N钢HW approx. 5060x60x16
HR030N056C
洛氏HR30N钢HW approx. 5660x60x16
HR030N060C
洛氏HR30N钢HW approx. 6060x60x16
HR030N064C
洛氏HR30N钢HW approx. 6460x60x16
HR030N067C
洛氏HR30N钢HW approx. 6760x60x16
HR030N070C
洛氏HR30N钢HW approx. 7060x60x16
HR030N073C
洛氏HR30N钢HW approx. 7360x60x16
HR030N075C
洛氏HR30N钢HW approx. 7560x60x16
HR030N077C
洛氏HR30N钢HW approx. 7760x60x16
HR030N079C
洛氏HR30N钢HW approx. 7960x60x16
HR030N080C
洛氏HR30N钢HW approx. 8060x60x16
HR030N081C
洛氏HR30N钢HW approx. 8160x60x16
HR030N082C
洛氏HR30N钢HW approx. 8260x60x16
HR030N083C
洛氏HR30N钢HW approx. 8360x60x16


HR30T

HR030T040C
洛氏HR30T铝HW approx. 4060x60x16
HR030T057C
洛氏HR30T铝HW approx. 5760x60x16
HR030T064C
洛氏HR30T铝HW approx. 6460x60x16
HR030T073C
洛氏HR30T铝HW approx. 7360x60x16
HR030T077C
洛氏HR30T钢HW approx. 7760x60x16
HR030T080C
洛氏HR30T钢HW approx. 8060x60x16
HR030T082C
洛氏HR30T钢HW approx. 8260x60x16


HR45N

HR045N023C
洛氏HR45N钢HW approx. 2360x60x16
HR045N031C
洛氏HR45N钢HW approx. 3160x60x16
HR045N039C
洛氏HR45N钢HW approx. 3960x60x16
HR045N044C
洛氏HR45N钢HW approx. 4460x60x16
HR045N049C
洛氏HR45N钢HW approx. 4960x60x16
HR045N054C
洛氏HR45N钢HW approx. 5460x60x16
HR045N057C
洛氏HR45N钢HW approx. 5760x60x16
HR045N060C
洛氏HR45N钢HW approx. 6060x60x16
HR045N063C
洛氏HR45N钢HW approx. 6360x60x16
HR045N066C
洛氏HR45N钢HW approx. 6660x60x16
HR045N068C
洛氏HR45N钢HW approx. 6860x60x16
HR045N069C
洛氏HR45N钢HW approx. 6960x60x16
HR045N071C
洛氏HR45N钢HW approx. 7160x60x16
HR045N072C
洛氏HR45N钢HW approx. 7260x60x16
HR045N073C
洛氏HR45N钢HW approx. 7360x60x16
HR045N074C
洛氏HR45N钢HW approx. 7460x60x16


HR45T

HR045T009C
洛氏HR45T铝HW approx. 960x60x16
HR045T034C
洛氏HR45T铝HW approx. 3460x60x16
HR045T045C
洛氏HR45T铝HW approx. 4560x60x16
HR045T059C
洛氏HR45T铝HW approx. 5960x60x16
HR045T065C
洛氏HR45T钢HW approx. 6560x60x16
HR045T069C
洛氏HR45T钢HW approx. 6960x60x16
HR045T072C
洛氏HR45T钢HW approx. 7260x60x16


维氏标准硬度块
(DIN EN ISO 6507-3, ASTM E92)



根据ASTM E10标准的额外证书需支付附加费

Test procedureTest method材质HardnessDimensions (mm)


HV 0.01

HVG010200E
维氏HV 0.010钢HW approx. 20030x30x6


HV 0.015

HVG015200E
维氏HV 0.015钢HW approx. 20030x30x6
HVG015250E
维氏HV 0.015钢HW approx. 25030x30x6


HV 0.02

HVG020200E
维氏HV 0.02钢HW approx. 20030x30x6
HVG020250E
维氏HV 0.02钢HW approx. 25030x30x6
HVG020300E
维氏HV 0.02钢HW approx. 30030x30x6
HVG020350E
维氏HV 0.02钢HW approx. 35030x30x6


HV 0.025

HVG025200E
维氏HV 0.025钢HW approx. 20030x30x6
HVG025250E
维氏HV 0.025钢HW approx. 25030x30x6
HVG025300E
维氏HV 0.025钢HW approx. 30030x30x6
HVG025350E
维氏HV 0.025钢HW approx. 35030x30x6
HVG025400E
维氏HV 0.025钢HW approx. 40030x30x6
HVG025450E
维氏HV 0.025钢HW approx. 45030x30x6


HV 0.05

HVG050200E
维氏HV 0.05钢HW approx. 20030x30x6
HVG050250E
维氏HV 0.05钢HW approx. 25030x30x6
HVG050300E
维氏HV 0.05钢HW approx. 30030x30x6
HVG050350E
维氏HV 0.05钢HW approx. 35030x30x6
HVG050400E
维氏HV 0.05钢HW approx. 40030x30x6
HVG050450E
维氏HV 0.05钢HW approx. 45030x30x6
HVG050500E
维氏HV 0.05钢HW approx. 50030x30x6
HVG050550E
维氏HV 0.05钢HW approx. 55030x30x6
HVG050600E
维氏HV 0.05钢HW approx. 60030x30x6
HVG050650E
维氏HV 0.05钢HW approx. 65030x30x6
HVG050700E
维氏HV 0.05钢HW approx. 70030x30x6
HVG050750E
维氏HV 0.05钢HW approx. 75030x30x6
HVG050800E
维氏HV 0.05钢HW approx. 80030x30x6
HVG050850E
维氏HV 0.05钢HW approx. 85030x30x6
HVG050900E
维氏HV 0.05钢HW approx. 90030x30x6


根据ASTM E10标准的额外证书需支付附加费



HV 0.1

HVG100200E
维氏HV 0.1钢HW approx. 20030x30x6
HVG100250E
维氏HV 0.1钢HW approx. 25030x30x6
HVG100300E
维氏HV 0.1钢HW approx. 30030x30x6
HVG100350E
维氏HV 0.1钢HW approx. 35030x30x6
HVG100400E
维氏HV 0.1钢HW approx. 40030x30x6
HVG100450E
维氏HV 0.1钢HW approx. 45030x30x6
HVG100500E
维氏HV 0.1钢HW approx. 50030x30x6
HVG100550E
维氏HV 0.1钢HW approx. 55030x30x6
HVG100600E
维氏HV 0.1钢HW approx. 60030x30x6
HVG100650E
维氏HV 0.1钢HW approx. 65030x30x6
HVG100700E
维氏HV 0.1钢HW approx. 70030x30x6
HVG100750E
维氏HV 0.1钢HW approx. 75030x30x6
HVG100800E
维氏HV 0.1钢HW approx. 80030x30x6
HVG100850E
维氏HV 0.1钢HW approx. 85030x30x6
HVG100900E
维氏HV 0.1钢HW approx. 90030x30x6


HV 0.2

HVG200200E
维氏HV 0.2钢HW approx. 20030x30x6
HVG200250E
维氏HV 0.2钢HW approx. 25030x30x6
HVG200300E
维氏HV 0.2钢HW approx. 30030x30x6
HVG200350E
维氏HV 0.2钢HW approx. 35030x30x6
HVG200400E
维氏HV 0.2钢HW approx. 40030x30x6
HVG200450E
维氏HV 0.2钢HW approx. 45030x30x6
HVG200500E
维氏HV 0.2钢HW approx. 50030x30x6
HVG200550E
维氏HV 0.2钢HW approx. 55030x30x6
HVG200600E
维氏HV 0.2钢HW approx. 60030x30x6
HVG200650E
维氏HV 0.2钢HW approx. 65030x30x6
HVG200700E
维氏HV 0.2钢HW approx. 70030x30x6
HVG200750E
维氏HV 0.2钢HW approx. 75030x30x6
HVG200800E
维氏HV 0.2钢HW approx. 80030x30x6
HVG200850E
维氏HV 0.2钢HW approx. 85030x30x6
HVG200900E
维氏HV 0.2钢HW approx. 90030x30x6


HV 0.3

HVG300200E
维氏HV 0.3钢HW approx. 20030x30x6
HVG300250E
维氏HV 0.3钢HW approx. 25030x30x6
HVG300300E
维氏HV 0.3钢HW approx. 30030x30x6
HVG300350E
维氏HV 0.3钢HW approx. 35030x30x6
HVG300400E
维氏HV 0.3钢HW approx. 40030x30x6
HVG300450E
维氏HV 0.3钢HW approx. 45030x30x6
HVG300500E
维氏HV 0.3钢HW approx. 50030x30x6
HVG300550E
维氏HV 0.3钢HW approx. 55030x30x6
HVG300600E
维氏HV 0.3钢HW approx. 60030x30x6
HVG300650E
维氏HV 0.3钢HW approx. 65030x30x6
HVG300700E
维氏HV 0.3钢HW approx. 70030x30x6
HVG300750E
维氏HV 0.3钢HW approx. 75030x30x6
HVG300800E
维氏HV 0.3钢HW approx. 80030x30x6
HVG300850E
维氏HV 0.3钢HW approx. 85030x30x6
HVG300900E
维氏HV 0.3钢HW approx. 90030x30x6


根据ASTM E10标准的额外证书需支付附加费



HV 0.5

HVG500200E
维氏HV 0.5钢HW approx. 20030x30x6
HVG500250E
维氏HV 0.5钢HW approx. 25030x30x6
HVG500300E
维氏HV 0.5钢HW approx. 30030x30x6
HVG500350E
维氏HV 0.5钢HW approx. 35030x30x6
HVG500400E
维氏HV 0.5钢HW approx. 40030x30x6
HVG500450E
维氏HV 0.5钢HW approx. 45030x30x6
HVG500500E
维氏HV 0.5钢HW approx. 50030x30x6
HVG500550E
维氏HV 0.5钢HW approx. 55030x30x6
HVG500600E
维氏HV 0.5钢HW approx. 60030x30x6
HVG500650E
维氏HV 0.5钢HW approx. 65030x30x6
HVG500700E
维氏HV 0.5钢HW approx. 70030x30x6
HVG500750E
维氏HV 0.5钢HW approx. 75030x30x6
HVG500800E
维氏HV 0.5钢HW approx. 80030x30x6
HVG500850E
维氏HV 0.5钢HW approx. 85030x30x6
HVG500900E
维氏HV 0.5钢HW approx. 90030x30x6


HV 1

HVK001200E
维氏HV 1钢HW approx. 20030x30x6
HVK001250E
维氏HV 1钢HW approx. 25030x30x6
HVK001300E
维氏HV 1钢HW approx. 30030x30x6
HVK001350E
维氏HV 1钢HW approx. 35030x30x6
HVK001400E
维氏HV 1钢HW approx. 40030x30x6
HVK001450E
维氏HV 1钢HW approx. 45030x30x6
HVK001500E
维氏HV 1钢HW approx. 50030x30x6
HVK001550E
维氏HV 1钢HW approx. 55030x30x6
HVK001600E
维氏HV 1钢HW approx. 60030x30x6
HVK001650E
维氏HV 1钢HW approx. 65030x30x6
HVK001700E
维氏HV 1钢HW approx. 70030x30x6
HVK001750E
维氏HV 1钢HW approx. 75030x30x6
HVK001800E
维氏HV 1钢HW approx. 80030x30x6
HVK001850E
维氏HV 1钢HW approx. 85030x30x6
HVK001900E
维氏HV 1钢HW approx. 90030x30x6


HV 1

HVK001080C
维氏HV 1铝HW approx. 8060x60x16
HVK001110C
维氏HV 1铝HW approx. 11060x60x16
HVK001130C
维氏HV 1铝HW approx. 13060x60x16
HVK001170C
维氏HV 1铝HW approx. 17060x60x16
HVK001200C
维氏HV 1钢HW approx. 20060x60x16
HVK001250C
维氏HV 1钢HW approx. 25060x60x16
HVK001300C
维氏HV 1钢HW approx. 30060x60x16
HVK001350C
维氏HV 1钢HW approx. 35060x60x16
HVK001400C
维氏HV 1钢HW approx. 40060x60x16
HVK001450C
维氏HV 1钢HW approx. 45060x60x16
HVK001500C
维氏HV 1钢HW approx. 50060x60x16
HVK001550C
维氏HV 1钢HW approx. 55060x60x16
HVK001600C
维氏HV 1钢HW approx. 60060x60x16
HVK001650C
维氏HV 1钢HW approx. 65060x60x16
HVK001700C
维氏HV 1钢HW approx. 70060x60x16
HVK001750C
维氏HV 1钢HW approx. 75060x60x16
HVK001800C
维氏HV 1钢HW approx. 80060x60x16
HVK001850C
维氏HV 1钢HW approx. 85060x60x16
HVK001900C
维氏HV 1钢HW approx. 90060x60x16


根据ASTM E10标准的额外证书需支付附加费



HV 2

HVK002200E
维氏HV 2钢HW approx. 20030x30x6
HVK002250E
维氏HV 2钢HW approx. 25030x30x6
HVK002300E
维氏HV 2钢HW approx. 30030x30x6
HVK002350E
维氏HV 2钢HW approx. 35030x30x6
HVK002400E
维氏HV 2钢HW approx. 40030x30x6
HVK002450E
维氏HV 2钢HW approx. 45030x30x6
HVK002500E
维氏HV 2钢HW approx. 50030x30x6
HVK002550E
维氏HV 2钢HW approx. 55030x30x6
HVK002600E
维氏HV 2钢HW approx. 60030x30x6
HVK002650E
维氏HV 2钢HW approx. 65030x30x6
HVK002700E
维氏HV 2钢HW approx. 70030x30x6
HVK002750E
维氏HV 2钢HW approx. 75030x30x6
HVK002800E
维氏HV 2钢HW approx. 80030x30x6
HVK002850E
维氏HV 2钢HW approx. 85030x30x6
HVK002900E
维氏HV 2钢HW approx. 90030x30x6


HV 2

HVK002080C
维氏HV 2铝HW approx. 8060x60x16
HVK002110C
维氏HV 2铝HW approx. 11060x60x16
HVK002130C
维氏HV 2铝HW approx. 13060x60x16
HVK002170C
维氏HV 2铝HW approx. 17060x60x16
HVK002200C
维氏HV 2钢HW approx. 20060x60x16
HVK002250C
维氏HV 2钢HW approx. 25060x60x16
HVK002300C
维氏HV 2钢HW approx. 30060x60x16
HVK002350C
维氏HV 2钢HW approx. 35060x60x16
HVK002400C
维氏HV 2钢HW approx. 40060x60x16
HVK002450C
维氏HV 2钢HW approx. 45060x60x16
HVK002500C
维氏HV 2钢HW approx. 50060x60x16
HVK002550C
维氏HV 2钢HW approx. 55060x60x16
HVK002600C
维氏HV 2钢HW approx. 60060x60x16
HVK002650C
维氏HV 2钢HW approx. 65060x60x16
HVK002700C
维氏HV 2钢HW approx. 70060x60x16
HVK002750C
维氏HV 2钢HW approx. 75060x60x16
HVK002800C
维氏HV 2钢HW approx. 80060x60x16
HVK002850C
维氏HV 2钢HW approx. 85060x60x16
HVK002900C
维氏HV 2钢HW approx. 90060x60x16


根据ASTM E10标准的额外证书需支付附加费



HV 3

HVK003080C
维氏HV 3铝HW approx. 8060x60x16
HVK003110C
维氏HV 3铝HW approx. 11060x60x16
HVK003130C
维氏HV 3铝HW approx. 13060x60x16
HVK003170C
维氏HV 3铝HW approx. 17060x60x16
HVK003200C
维氏HV 3钢HW approx. 20060x60x16
HVK003250C
维氏HV 3钢HW approx. 25060x60x16
HVK003300C
维氏HV 3钢HW approx. 30060x60x16
HVK003350C
维氏HV 3钢HW approx. 35060x60x16
HVK003400C
维氏HV 3钢HW approx. 40060x60x16
HVK003450C
维氏HV 3钢HW approx. 45060x60x16
HVK003500C
维氏HV 3钢HW approx. 50060x60x16
HVK003550C
维氏HV 3钢HW approx. 55060x60x16
HVK003600C
维氏HV 3钢HW approx. 60060x60x16
HVK003650C
维氏HV 3钢HW approx. 65060x60x16
HVK003700C
维氏HV 3钢HW approx. 70060x60x16
HVK003750C
维氏HV 3钢HW approx. 75060x60x16
HVK003800C
维氏HV 3钢HW approx. 80060x60x16
HVK003850C
维氏HV 3钢HW approx. 85060x60x16
HVK003900C
维氏HV 3钢HW approx. 90060x60x16


HV 5

HVK005080C
维氏HV 5铝HW approx. 8060x60x16
HVK005110C
维氏HV 5铝HW approx. 11060x60x16
HVK005130C
维氏HV 5铝HW approx. 13060x60x16
HVK005170C
维氏HV 5铝HW approx. 17060x60x16
HVK005200C
维氏HV 5钢HW approx. 20060x60x16
HVK005250C
维氏HV 5钢HW approx. 25060x60x16
HVK005300C
维氏HV 5钢HW approx. 30060x60x16
HVK005350C
维氏HV 5钢HW approx. 35060x60x16
HVK005400C
维氏HV 5钢HW approx. 40060x60x16
HVK005450C
维氏HV 5钢HW approx. 45060x60x16
HVK005500C
维氏HV 5钢HW approx. 50060x60x16
HVK005550C
维氏HV 5钢HW approx. 55060x60x16
HVK005600C
维氏HV 5钢HW approx. 60060x60x16
HVK005650C
维氏HV 5钢HW approx. 65060x60x16
HVK005700C
维氏HV 5钢HW approx. 70060x60x16
HVK005750C
维氏HV 5钢HW approx. 75060x60x16
HVK005800C
维氏HV 5钢HW approx. 80060x60x16
HVK005850C
维氏HV 5钢HW approx. 85060x60x16
HVK005900C
维氏HV 5钢HW approx. 90060x60x16


根据ASTM E10标准的额外证书需支付附加费



HV 10

HVK010080C
维氏HV 10铝HW approx. 8060x60x16
HVK010110C
维氏HV 10铝HW approx. 11060x60x16
HVK010130C
维氏HV 10铝HW approx. 13060x60x16
HVK010170C
维氏HV 10铝HW approx. 17060x60x16
HVK010200C
维氏HV 10钢HW approx. 20060x60x16
HVK010250C
维氏HV 10钢HW approx. 25060x60x16
HVK010300C
维氏HV 10钢HW approx. 30060x60x16
HVK010350C
维氏HV 10钢HW approx. 35060x60x16
HVK010400C
维氏HV 10钢HW approx. 40060x60x16
HVK010450C
维氏HV 10钢HW approx. 45060x60x16
HVK010500C
维氏HV 10钢HW approx. 50060x60x16
HVK010550C
维氏HV 10钢HW approx. 55060x60x16
HVK010600C
维氏HV 10钢HW approx. 60060x60x16
HVK010650C
维氏HV 10钢HW approx. 65060x60x16
HVK010700C
维氏HV 10钢HW approx. 70060x60x16
HVK010750C
维氏HV 10钢HW approx. 75060x60x16
HVK010800C
维氏HV 10钢HW approx. 80060x60x16
HVK010850C
维氏HV 10钢HW approx. 85060x60x16
HVK010900C
维氏HV 10钢HW approx. 90060x60x16


HV 20

HVK020080C
维氏HV 20铝HW approx. 8060x60x16
HVK020110C
维氏HV 20铝HW approx. 11060x60x16
HVK020130C
维氏HV 20铝HW approx. 13060x60x16
HVK020170C
维氏HV 20铝HW approx. 17060x60x16
HVK020200C
维氏HV 20钢HW approx. 20060x60x16
HVK020250C
维氏HV 20钢HW approx. 25060x60x16
HVK020300C
维氏HV 20钢HW approx. 30060x60x16
HVK020350C
维氏HV 20钢HW approx. 35060x60x16
HVK020400C
维氏HV 20钢HW approx. 40060x60x16
HVK020450C
维氏HV 20钢HW approx. 45060x60x16
HVK020500C
维氏HV 20钢HW approx. 50060x60x16
HVK020550C
维氏HV 20钢HW approx. 55060x60x16
HVK020600C
维氏HV 20钢HW approx. 60060x60x16
HVK020650C
维氏HV 20钢HW approx. 65060x60x16
HVK020700C
维氏HV 20钢HW approx. 70060x60x16
HVK020750C
维氏HV 20钢HW approx. 75060x60x16
HVK020800C
维氏HV 20钢HW approx. 80060x60x16
HVK020850C
维氏HV 20钢HW approx. 85060x60x16
HVK020900C
维氏HV 20钢HW approx. 90060x60x16


根据ASTM E10标准的额外证书需支付附加费



HV 30

HVK030080C
维氏HV 30铝HW approx. 8060x60x16
HVK030110C
维氏HV 30铝HW approx. 11060x60x16
HVK030130C
维氏HV 30铝HW approx. 13060x60x16
HVK030170C
维氏HV 30铝HW approx. 17060x60x16
HVK030200C
维氏HV 30钢HW approx. 20060x60x16
HVK030250C
维氏HV 30钢HW approx. 25060x60x16
HVK030300C
维氏HV 30钢HW approx. 30060x60x16
HVK030350C
维氏HV 30钢HW approx. 35060x60x16
HVK030400C
维氏HV 30钢HW approx. 40060x60x16
HVK030450C
维氏HV 30钢HW approx. 45060x60x16
HVK030500C
维氏HV 30钢HW approx. 50060x60x16
HVK030550C
维氏HV 30钢HW approx. 55060x60x16
HVK030600C
维氏HV 30钢HW approx. 60060x60x16
HVK030650C
维氏HV 30钢HW approx. 65060x60x16
HVK030700C
维氏HV 30钢HW approx. 70060x60x16
HVK030750C
维氏HV 30钢HW approx. 75060x60x16
HVK030800C
维氏HV 30钢HW approx. 80060x60x16
HVK030850C
维氏HV 30钢HW approx. 85060x60x16
HVK030900C
维氏HV 30钢HW approx. 90060x60x16


HV 50

HVK050080C
维氏HV 50铝HW approx. 8060x60x16
HVK050110C
维氏HV 50铝HW approx. 11060x60x16
HVK050130C
维氏HV 50铝HW approx. 13060x60x16
HVK050170C
维氏HV 50铝HW approx. 17060x60x16
HVK050200C
维氏HV 50钢HW approx. 20060x60x16
HVK050250C
维氏HV 50钢HW approx. 25060x60x16
HVK050300C
维氏HV 50钢HW approx. 30060x60x16
HVK050350C
维氏HV 50钢HW approx. 35060x60x16
HVK050400C
维氏HV 50钢HW approx. 40060x60x16
HVK050450C
维氏HV 50钢HW approx. 45060x60x16
HVK050500C
维氏HV 50钢HW approx. 50060x60x16
HVK050550C
维氏HV 50钢HW approx. 55060x60x16
HVK050600C
维氏HV 50钢HW approx. 60060x60x16
HVK050650C
维氏HV 50钢HW approx. 65060x60x16
HVK050700C
维氏HV 50钢HW approx. 70060x60x16
HVK050750C
维氏HV 50钢HW approx. 75060x60x16
HVK050800C
维氏HV 50钢HW approx. 80060x60x16
HVK050850C
维氏HV 50钢HW approx. 85060x60x16
HVK050900C
维氏HV 50钢HW approx. 90060x60x16


根据ASTM E10标准的额外证书需支付附加费



HV 100

HVK100080C
维氏HV 100铝HW approx. 8060x60x16
HVK100110C
维氏HV 100铝HW approx. 11060x60x16
HVK100130C
维氏HV 100铝HW approx. 13060x60x16
HVK100170C
维氏HV 100铝HW approx. 17060x60x16
HVK100200C
维氏HV 100钢HW approx. 20060x60x16
HVK100250C
维氏HV 100钢HW approx. 25060x60x16
HVK100300C
维氏HV 100钢HW approx. 30060x60x16
HVK100350C
维氏HV 100钢HW approx. 35060x60x16
HVK100400C
维氏HV 100钢HW approx. 40060x60x16
HVK100450C
维氏HV 100钢HW approx. 45060x60x16
HVK100500C
维氏HV 100钢HW approx. 50060x60x16
HVK100550C
维氏HV 100钢HW approx. 55060x60x16
HVK100600C
维氏HV 100钢HW approx. 60060x60x16
HVK100650C
维氏HV 100钢HW approx. 65060x60x16
HVK100700C
维氏HV 100钢HW approx. 70060x60x16
HVK100750C
维氏HV 100钢HW approx. 75060x60x16
HVK100800C
维氏HV 100钢HW approx. 80060x60x16
HVK100850C
维氏HV 100钢HW approx. 85060x60x16
HVK100900C
维氏HV 100钢HW approx. 90060x60x16


宏观金刚石压头

• with DAkkS/ASTM Certificate, 带DAkkS/ASTM证书
QER28000EA洛氏金刚石压头, 28 mm, 6.5 mm
QER28400EA洛氏金刚石压头, 28 mm, 3.8 mm
QEV28000EA维氏金刚石压头, ≥HV0.01, 28 mm, 6.5 mm
QEV28000EZ维氏金刚石压头, ≥HV5, 28 mm, 6.5 mm with DAkkS Certificate


努氏金刚石压头, 28 mm, 6.5 mm

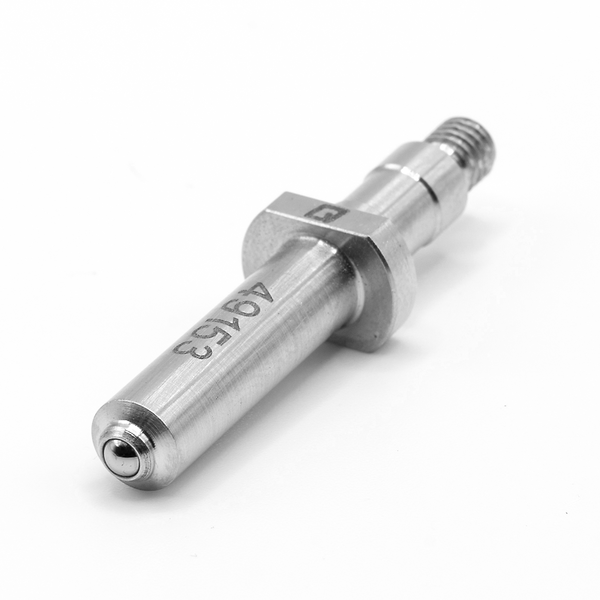

嵌入式球压头–宏观硬度
描述
• with DAkkS/ASTM Certificate, 带DAkkS/ASTM证书
QEB28010EA1mm球压头，嵌入式
QEB28025EA2.5mm球压头，嵌入式
QEB28050EA5mm球压头，嵌入式
QEB28100EA10mm球压头，嵌入式
QEB28116EA1/16"球压头，嵌入式


1/8"球压头，嵌入式

QEB28104EA1/4"球压头，嵌入式
QEB28102EA1/2"球压头，嵌入式

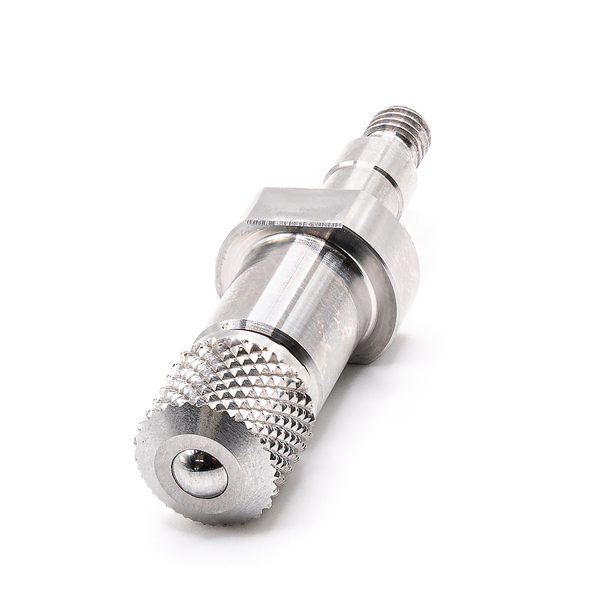

球压头，可更换球-宏观硬度
描述
• with DAkkS/ASTM Certificate
QEB28025AA2.5mm球压头-可更换式


5mm球压头-可更换式

QEB28100AA10mm球压头-可更换式
QEB28108AA1/8"球压头-可更换式
QEB28104AA1/4"球压头-可更换式
QEB28102AA1/2"球压头-可更换式
球压头用硬质合金球，可更换 - 宏观硬度
描述


• with DAkkS/ASTM Certificate

QKG010025A硬质合金球 2.5 mm
QKG010050A硬质合金球5 mm
QKG010100A硬质合金球 10 mm
QKG011108A硬质合金球 1/8"
QKG011104A硬质合金球 1/4"
QKG011102A硬质合金球 1/2"

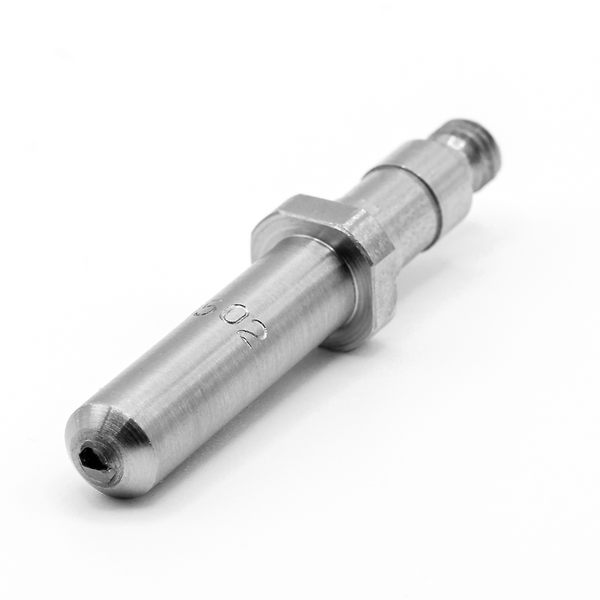

显微金刚石压头
描述
带DAkkS/ASTM证书
QEV05000EA维氏压头
QEK05000EA努氏压头
QEB05010EA1mm球压头，嵌入式
QEB05025EA2.5mm球压头，嵌入式
QEB05050EA5mm球压头，嵌入式
硬度转换表海报
描述
95016705硬度转换表海报
