通过QPREP，QATM提供用于金相样品制备和分析的全系列高品质耗材。所有的耗材都经过全面测试和选择，完美匹配QATM设备。

在这个页面你可以申请报价。

请选择您想包括的项添加到你的询价单。你可以选择项目从任何产品页面。 你的询价单将会显示在网站的右上角。

通用咨询

不确定您需要那些项目或者您想要一个总报价?

给我们发送一般性咨询

Dia-COMPLETE Poly,
二合一多晶金刚石悬浮液

金刚石悬浮液和润滑剂的组合产品

Grain Size

95011833

0.25 µm

500 ml

95011839

0.25 µm

1 l

95011845

0.25 µm

2.5 l

95016023

0.25 µm

5 l

95011834

1 µm

500 ml

95011840

1 µm

1 l

95011846

1 µm

2.5 l

95015394

1 µm

5 l

95011835

3 µm

500 ml

95011841

3 µm

1 l

95011847

3 µm

2.5 l

95015395

3 µm

5 l

95011836

6 µm

500 ml

95011842

6 µm

1 l

95011848

6 µm

2.5 l

95015396

6 µm

5 l

95011837

9 µm

500 ml

95011843

9 µm

1 l

95011849

9 µm

2.5 l

95015397

9 µm

5 l

95011844

15 µm

1 l

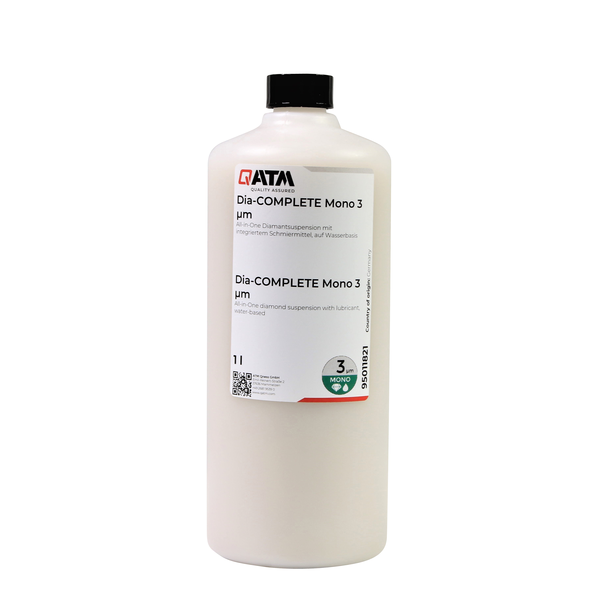

Dia-COMPLETE Mono,
二合一单晶金刚石悬浮液

金刚石悬浮液和润滑剂的组合产品

Grain Size

95011815

1 µm

500 ml

95011820

1 µm

1 l

95011825

1 µm

2.5 l

95015404

1 µm

5 l

95011816

3 µm

500 ml

95011821

3 µm

1 l

95011826

3 µm

2.5 l

95015405

3 µm

5 l

95011817

6 µm

500 ml

95011822

6 µm

1 l

95011827

6 µm

2.5 l

95015406

6 µm

5 l

95011818

9 µm

250 ml

95011823

9 µm

500 ml

95011828

9 µm

1 l

95015407

9 µm

2.5 l

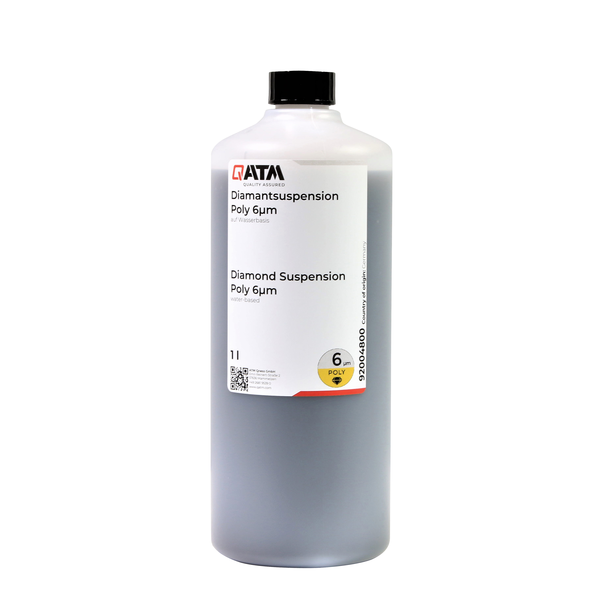

多晶金刚石悬浮液

Grain Size

92002353

1 µm

250 ml

95016017

1 µm

500 ml

92004798

1 µm

1 l

95002761

1 µm

2.5 l

95014519

1 µm

5 l

92002354

3 µm

250 ml

95016018

3 µm

500 ml

92004799

3 µm

1 l

95002762

3 µm

2.5 l

95014520

3 µm

5 l

92002355

6 µm

250 ml

95016019

6 µm

500 ml

92004800

6 µm

1 l

95002763

6 µm

2.5 l

95014521

6 µm

5 l

92002356

9 µm

250 ml

95016020

9 µm

500 ml

92004801

9 µm

1 l

95002764

9 µm

2.5 l

95014522

9 µm

5 l

95005738

15 µm

1 l

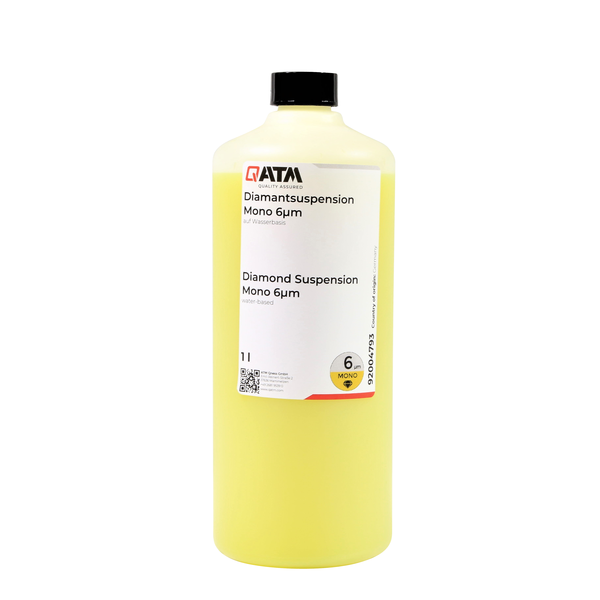

单晶金刚石悬浮液

Grain Size

92002346

1 µm

250 ml

95016012

1 µm

500 ml

92004791

1 µm

1 l

95002755

1 µm

2.5 l

95014514

1 µm

5 l

92002347

3 µm

250 ml

95016013

3 µm

500 ml

92004792

3 µm

1 l

95002756

3 µm

2.5 l

95014515

3 µm

5 l

92002348

6 µm

250 ml

95016014

6 µm

500 ml

92004793

6 µm

1 l

95002757

6 µm

2.5 l

95014516

6 µm

5 l

92002349

9 µm

250 ml

95016015

9 µm

500 ml

92004794

9 µm

1 l

95002758

9 µm

2.5 l

95014517

9 µm

5 l

金刚石悬浮液 (酒精基)
多晶

Grain Size

95003494

1 µm

1 l

95003495

3 µm

1 l

95003496

6 µm

1 l

95003497

9 µm

1 l

95007978

15 µm

1 l

金刚石悬浮液 (酒精基)
单晶

Grain Size (µm)

95003490

1 µm

1 l

95003491

3 µm

1 l

95003492

6 µm

1 l

95003493

9 µm

1 l

金刚石悬浮液 (油基)
多晶

Grain Size

95002792

1 µm

1 pc

95002793

3 µm

1 pc

95002794

6 µm

1 pc

95002795

9 µm

1 pc

配件

喷嘴

• for diamond suspensions of all grain sizes
• for 250 ml, 500 ml and 1 L bottles

95016723 喷嘴

用于悬浮液滴加的Qdoser ONE加液系统

Qdoser ONE基础模块

Z5631014 Qdoser ONE支架

Z5631016 Qdoser ONE立架

多晶金刚石喷雾

不含氟氯碳化物

Grain Size

95016244

0.25 µm

200 ml

95016025

1 µm

200 ml

95016026

3 µm

200 ml

95016027

6 µm

200 ml

95016028

9 µm

200 ml

95016245

15 µm

200 ml

多晶金刚石抛光膏

10g 注射器

Grain Size

92002339

0.25 μm

10 g

92002340

1 µm

10 g

92002341

3 µm

10 g

92002342

6 µm

10 g

92002343

9 µm

10 g

92002344

15 µm

10 g

单晶金刚石抛光膏

10g 注射器

Grain Size

92002365

0.25 µm

10 g

92002333

1 µm

10 g

92002316

3 µm

10 g

92002335

6 µm

10 g

92002336

9 µm

10 g

92002337

15 µm

10 g

Diamond stick monocrystalline

• diamond wax
• to be used with lubricant

Grain Size (µm)

95015386

1 µm

10 g

95015387

3 µm

10 g

95015388

6 µm

10 g

95015389

9 µm

10 g

金刚石润滑剂, additive for diamond suspension/paste

颜色

特性

92005509

黄色

- 水基 -

生态友好

1 l

92004925

黄色

- 水基 -

生态友好

2.5 l

92005510

黄色

- 水基 -

生态友好

5 l

95016174

黄色

- 水基 -

生态友好

10 l

95000901

蓝色

- 酒精基 -

水敏样品制备

1 l

95000911

蓝色

- 酒精基 -

水敏样品制备

2,5 l

95001194

蓝色

- 酒精基 -

水敏样品制备

5 l

95001759

红色

- 油基 -

水敏样品制备

1 l

95001772

红色

- 油基 -

水敏样品制备

2.5 l

95001784

红色

- 油基 -

水敏样品制备

5 l

金刚石润滑浓缩液

• for manual dosing with diamond suspension

颜色, 特性

95016362 蓝色, - 用于酒精基润滑剂 -
可与9等份酒精混合，调配10L润滑剂, , , 1 l

酒精

95004662

乙醇，99.9%变性醇

1 l

95004663

乙醇，99.9%变性醇

5 l

95004664

乙醇，99.9%变性醇

10 l

精抛悬浮液

Fine polishing suspension (Al2O3)
• does not crystallize
•for ferrous materials, polymers, composites, PCB, rocks and minerals

描述

ph值

Grain Size

92002534

Eposal

pH≈8.0

0.06 µm

1 l

Colloidal silica
• for polishing, also mixable with diluted etchant
•

描述

ph值

Grain Size

92002536

Eposil F

pH≈9.5

0.1 µm

1 l

95013858

Eposil Non Dry

pH≈9.5

0.05 µm

1 l

95013958

Eposil Non Dry

pH≈9.5

0.05 µm

10 l

92002541

Eposil M

pH≈9.5

0.06 µm

1 l

Colloidal silica
• for titanium, nickel, tin and its alloys

描述

ph值

Grain Size

95001206

Eposil M11

pH≈11.0

0.06 µm

1 l

Water-free fine polishing suspension
• e.g. for magnesium, zinc

描述

ph值

Grain Size

95005033

Etosil E

pH≈7.0

0.06 µm

1 l

氧化铝悬浮液，煅烧

浓缩型，可用3-5份去离子水稀释

描述

Grain Size

92002533

氧化铝悬浮液

0.3 µm

1 l

92002532

氧化铝悬浮液

0.6 µm

1 l

92004950

氧化铝悬浮液

1 µm

1 l

磁性膜，自粘

Magnetic foil, normal adhesion
• to apply on working wheel

Ø

厚度

92008528

200 mm

1 mm

1 pc

92005820

250 mm

1 mm

1 pc

92005822

300 mm

1 mm

1 pc

Magnetic foil, strong adhesion
• to apply on working wheel

Ø

厚度

95016345

200 mm

1 mm

1 pc

95016346

250 mm

1 mm

1 pc

95012161

300 mm

1 mm

1 pc

95014137

350 mm

1 mm

1 pc

Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

Ø

厚度

95016298

200 mm

2 mm

1 pc

95016300

250 mm

2 mm

1 pc

95016301

300 mm

2 mm

1 pc

95016302

350 mm

2 mm

1 pc

带金属背底的GALAXY抛光布

GALAXY – ALPHA
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: Magnetic foil

描述

Ø

95001407

ALPHA

200 mm

5 pcs

95001408

ALPHA

250 mm

5 pcs

95001409

ALPHA

300 mm

5 pcs

95013994

ALPHA

350 mm

5 pcs

GALAXY – BETA
• Suitable for pre-polishing
• Hard synthetic cloth
• Materials with high hardness, steel, grey cast iron, hard metal, ceramics
• For use with diamond grain size: 15/9/6 µm
• Fixation system: Magnetic foil

描述

Ø

Fixation

95001410

BETA

200 mm

5 pcs

95001411

BETA

250 mm

5 pcs

95001412

BETA

300 mm

5 pcs

95013995

BETA

350 mm

5 pcs

GALAXY – DELTA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

描述

Ø

95001413

DELTA

200 mm

5 pcs

95001414

DELTA

250 mm

5 pcs

95001415

DELTA

300 mm

5 pcs

95013996

DELTA

350 mm

5 pcs

GALAXY - GAMMA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK]
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

描述

Ø

95017588

GAMMA

200 mm

5 pcs

95017589

GAMMA

250 mm

5 pcs

95017590

GAMMA

300 mm

5 pcs

GALAXY – PHI
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: Magnetic foil

描述

Ø

95012739

PHI

200 mm

5 pcs

95012740

PHI

250 mm

5 pcs

95012741

PHI

300 mm

5 pcs

95014002

PHI

350 mm

5 pcs

GALAXY – SIGMA
• Suitable for intermediate and end polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: Magnetic foil

描述

Ø

95001416

SIGMA

200 mm

5 pcs

95001417

SIGMA

250 mm

5 pcs

95001418

SIGMA

300 mm

5 pcs

95013997

SIGMA

350 mm

5 pcs

GALAXY – ETA
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: Magnetic foil

描述

Ø

95016832

ETA

200 mm

5 pcs

95016833

ETA

250 mm

5 pcs

95016834

ETA

300 mm

5 pcs

95016835

ETA

350 mm

5 pcs

GALAXY – IOTA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• For all materials, especially hard materials
• For use with diamond grain size: 3/1 µm
•, Suitable for oxide suspensions
•, 固定系统: 磁性膜

描述

Ø

95001419

IOTA

200 mm

5 pcs

95001420

IOTA

250 mm

5 pcs

95001421

IOTA

300 mm

5 pcs

95013998

IOTA

350 mm

5 pcs

GALAXY – ZETA
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• For all materials
• For use with diamond grain size: 3/1 µm
•, Suitable for oxide suspensions as well as alumina
• Fixation system: Magnetic foil

描述

Ø

95005776

ZETA

200 mm

5 pcs

95005777

ZETA

250 mm

5 pcs

95005778

ZETA

300 mm

5 pcs

95013999

ZETA

350 mm

5 pcs

GALAXY – OMEGA
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
•, For all materials
•, Suitable for oxide suspensions
• Fixation system: Magnetic foil

描述

Ø

95005779

OMEGA

200 mm

5 pcs

95005780

OMEGA

250 mm

5 pcs

95005781

OMEGA

300 mm

5 pcs

95014000

OMEGA

350 mm

5 pcs

GALAXY – LAMBDA-HR-• Suitable for fine polishing with fine polishing suspension-HR-• Brushed, structured synthetic cloth (chemical resistant)-HR-• For all materials-HR-•, Suitable for oxide suspensions as well as alumina-HR-• Fixation system: Magnetic foil

描述

Ø

95005782

LAMBDA

200 mm

5 pcs

95005783

LAMBDA

250 mm

5 pcs

95005784

LAMBDA

300 mm

5 pcs

95014001

LAMBDA

350 mm

5 pcs

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

Ø

95017015

200 mm

1 pc

95017016

250 mm

1 pc

95017017

300 mm

1 pc

95017018

350 mm

1 pc

GALAXY-X-Tap (for using with magnetic foil)

Ø

95017019

200 mm

1 pc

95017020

250 mm

1 pc

95017021

300 mm

1 pc

95017022

350 mm

1 pc

抛光布, 自粘

ALPHA – Polishing cloth
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: X-Tap

描述

Ø

92002555

ALPHA

200 mm

5 pcs

92002564

ALPHA

250 mm

5 pcs

92002573

ALPHA

300 mm

5 pcs

95016029

ALPHA

350 mm

5 pcs

BETA – Polishing cloth-HR-• Suitable for pre-polishing-HR-• Hard synthetic cloth-HR-• Materials with high hardness, steel, grey cast iron, hard metal, ceramics-HR-• For use with diamond grain size: 15/9/6 µm-HR-• Fixation system: X-Tap

描述

Ø

Fixation

95006571

BETA

200 mm

5 pcs

95006572

BETA

250 mm

5 pcs

95006573

BETA

300 mm

5 pcs

95016030

BETA

350 mm

5 pcs

DELTA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

描述

Ø

92008801

DELTA

200 mm

5 pcs

92008802

DELTA

250 mm

5 pcs

92008803

DELTA

300 mm

5 pcs

95016034

DELTA

350 mm

5 pcs

GAMMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK],
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

描述

Ø

92002558

Gamma

200 mm

5 pcs

92002567

Gamma

250 mm

5 pcs

92002576

Gamma

300 mm

5 pcs

95016032

Gamma

350 mm

5 pcs

PHI – Polishing cloth
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: X-Tap

描述

Ø

92005678

PHI

200 mm

5 pcs

92005679

PHI

250 mm

5 pcs

92005680

PHI

300 mm

5 pcs

95016031

PHI

350 mm

5 pcs

SIGMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: X-Tap

描述

Ø

92008810

SIGMA

200 mm

5 pcs

92008811

SIGMA

250 mm

5 pcs

92008812

SIGMA

300 mm

5 pcs

95016033

SIGMA

350 mm

5 pcs

ETA – Polishing cloth
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: X-Tap

描述

Ø

95016828

ETA

200 mm

5 pcs

95016829

ETA

250 mm

5 pcs

95016830

ETA

300 mm

5 pcs

95016831

ETA

350 mm

5 pcs

IOTA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• for all materials, especially hard materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions
• Fixation system: X-Tap

描述

Ø

95002393

IOTA

200 mm

5 pcs

95002394

IOTA

250 mm

5 pcs

95002395

IOTA

300 mm

5 pcs

95016036

IOTA

350 mm

5 pcs

ZETA – Polishing cloth
• Suitable for end polishing as well as fine polishing with fine polishing suspension
• Short flocked, soft synthetic cloth
• for all materials
• For use with diamond grain size: 3/1 µm
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

描述

Ø

92005681

ZETA

200 mm

5 pcs

92005683

ZETA

250 mm

5 pcs

92005684

ZETA

300 mm

5 pcs

95016037

ZETA

350 mm

5 pcs

KAPPA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft polishing felt
• For all materials
• Suitable for alumina
• Fixation system: X-Tap

描述

Ø

92002563

Kappa

200 mm

5 pcs

92002572

Kappa

250 mm

5 pcs

92002581

Kappa

300 mm

5 pcs

95016038

Kappa

350 mm

5 pcs

OMEGA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions
• Fixation system: X-Tap

描述

Ø

92002562

OMEGA

200 mm

5 pcs

92002571

OMEGA

250 mm

5 pcs

92002580

OMEGA

300 mm

5 pcs

95016039

OMEGA

350 mm

5 pcs

LAMBDA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Brushed, structured synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

描述

Ø

Fixation

95003597

LAMBDA

200 mm

5 pcs

95003598

LAMBDA

250 mm

5 pcs

95003599

LAMBDA

300 mm

5 pcs

95016040

LAMBDA

350 mm

5 pcs

所有抛光布也有适合Qpol 30的规格提供（Ø 30 mm）

介质承载盘

• for grinding and polishing robot Qpol 250 BOT (SAPHIR X-Change)

Ø

95005867

250 mm

1 pc

过滤袋

Filter inserts for settling tank
(until year of construction 2012)

尺寸

网孔尺寸

95017310

过滤棉片

290 x 150 x 190 mm

40 µm

95017311

过滤棉片

290 x 150 x 190 mm

60 µm

Filter inserts for settling tank
(from year of construction 2013)

尺寸

网孔尺寸

95017312

过滤棉片

250 x 200 x 155 mm

60 µm

95017313

过滤棉片

250 x 200 x 155 mm

100 µm

耗材 用于完美的金相样品制备

在这个页面你可以申请报价。

通用咨询

Dia-COMPLETE Poly, 二合一多晶金刚石悬浮液

Dia-COMPLETE Mono, 二合一单晶金刚石悬浮液

多晶金刚石悬浮液

单晶金刚石悬浮液

金刚石悬浮液 (酒精基) 多晶

金刚石悬浮液 (酒精基) 单晶

金刚石悬浮液 (油基) 多晶

配件

喷嘴

用于悬浮液滴加的Qdoser ONE加液系统

多晶金刚石喷雾

多晶金刚石抛光膏

单晶金刚石抛光膏

Diamond stick monocrystalline

金刚石润滑剂, additive for diamond suspension/paste

金刚石润滑浓缩液

酒精

精抛悬浮液

Fine polishing suspension (Al2O3)• does not crystallize•for ferrous materials, polymers, composites, PCB, rocks and minerals

Colloidal silica• for polishing, also mixable with diluted etchant•

Colloidal silica• for titanium, nickel, tin and its alloys

Water-free fine polishing suspension• e.g. for magnesium, zinc

氧化铝悬浮液，煅烧

磁性膜，自粘

Magnetic foil, normal adhesion• to apply on working wheel

Magnetic foil, strong adhesion• to apply on working wheel

Magnetic foil, strongest adhesion• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

带金属背底的GALAXY抛光布

GALAXY – ALPHA • Suitable for pre-polishing• Very hard, perforated chemical fiber cloth• For ceramics, hard metal, steel, grey cast iron, aluminum• High lifetime and stock removal• For use with diamond grain size: 15/9 µm• Fixation system: Magnetic foil

GALAXY – BETA• Suitable for pre-polishing• Hard synthetic cloth• Materials with high hardness, steel, grey cast iron, hard metal, ceramics• For use with diamond grain size: 15/9/6 µm• Fixation system: Magnetic foil

GALAXY – DELTA• Suitable for pre- & intermediate polishing• Medium hard silk cloth• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum• For use with diamond grain size: 9/6/3 µm• Fixation system: Magnetic foil

GALAXY - GAMMA• Suitable for pre- & intermediate polishing• Medium hard silk cloth• C-steels, precious metal, coatings, plastics [CFK, GFK] • For use with diamond grain size: 9/6/3 µm• Fixation system: Magnetic foil

GALAXY – PHI• Suitable for pre-, intermediate-, and end polishing• Medium hard chemical fiber cloth• For iron, non – ferrous metals, minerals, ceramics, composite materials• For use with diamond grain size: 9/6/3/1 µm• Fixation system: Magnetic foil

GALAXY – SIGMA• Suitable for intermediate and end polishing• Soft wool cloth• For all materials• For use with diamond grain size: 6/3/1 µm• Fixation system: Magnetic foil

GALAXY – ETA • Suitable for end polishing• Short flocked, medium hard synthetic cloth• For all materials of medium and high hardness• For use with diamond grain size: 3/1 µm• Fixation system: Magnetic foil

GALAXY – IOTA • Suitable for end polishing as well as fine polishing with fine polishing suspension• Short flocked, soft synthetic cloth• For all materials, especially hard materials• For use with diamond grain size: 3/1 µm•, Suitable for oxide suspensions•, 固定系统: 磁性膜

GALAXY – ZETA• Suitable for end polishing as well as fine polishing with fine polishing suspension• Short flocked, soft synthetic cloth• For all materials• For use with diamond grain size: 3/1 µm•, Suitable for oxide suspensions as well as alumina• Fixation system: Magnetic foil

GALAXY – OMEGA• Suitable for fine polishing with fine polishing suspension• Soft synthetic cloth (chemical resistant)•, For all materials•, Suitable for oxide suspensions• Fixation system: Magnetic foil

GALAXY – LAMBDA-HR-• Suitable for fine polishing with fine polishing suspension-HR-• Brushed, structured synthetic cloth (chemical resistant)-HR-• For all materials-HR-•, Suitable for oxide suspensions as well as alumina-HR-• Fixation system: Magnetic foil

X-Tap

X-Tap (self-adhesive to stick on the working wheel)

GALAXY-X-Tap (for using with magnetic foil)

抛光布, 自粘

ALPHA – Polishing cloth• Suitable for pre-polishing• Very hard, perforated chemical fiber cloth• For ceramics, hard metal, steel, grey cast iron, aluminum• High lifetime and stock removal• For use with diamond grain size: 15/9 µm• Fixation system: X-Tap

BETA – Polishing cloth-HR-• Suitable for pre-polishing-HR-• Hard synthetic cloth-HR-• Materials with high hardness, steel, grey cast iron, hard metal, ceramics-HR-• For use with diamond grain size: 15/9/6 µm-HR-• Fixation system: X-Tap

DELTA – Polishing cloth• Suitable for pre- & intermediate polishing• Medium hard silk cloth• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum• For use with diamond grain size: 9/6/3 µm• Fixation system: X-Tap

GAMMA – Polishing cloth• Suitable for pre- & intermediate polishing• Medium hard silk cloth• C-steels, precious metal, coatings, plastics [CFK, GFK], • For use with diamond grain size: 9/6/3 µm• Fixation system: X-Tap

PHI – Polishing cloth• Suitable for pre-, intermediate-, and end polishing• Medium hard chemical fiber cloth• For iron, non – ferrous metals, minerals, ceramics, composite materials• For use with diamond grain size: 9/6/3/1 µm• Fixation system: X-Tap

SIGMA – Polishing cloth• Suitable for pre- & intermediate polishing• Soft wool cloth• For all materials• For use with diamond grain size: 6/3/1 µm• Fixation system: X-Tap

ETA – Polishing cloth• Suitable for end polishing• Short flocked, medium hard synthetic cloth• For all materials of medium and high hardness• For use with diamond grain size: 3/1 µm• Fixation system: X-Tap

ZETA – Polishing cloth• Suitable for end polishing as well as fine polishing with fine polishing suspension• Short flocked, soft synthetic cloth• for all materials• For use with diamond grain size: 3/1 µm• Suitable for oxide suspensions as well as alumina• Fixation system: X-Tap

KAPPA – Polishing cloth• Suitable for fine polishing with fine polishing suspension• Soft polishing felt• For all materials• Suitable for alumina• Fixation system: X-Tap

OMEGA – Polishing cloth• Suitable for fine polishing with fine polishing suspension• Soft synthetic cloth (chemical resistant)• For all materials• Suitable for oxide suspensions• Fixation system: X-Tap

LAMBDA – Polishing cloth• Suitable for fine polishing with fine polishing suspension• Brushed, structured synthetic cloth (chemical resistant)• For all materials• Suitable for oxide suspensions as well as alumina• Fixation system: X-Tap

介质承载盘

过滤袋

Filter inserts for settling tank (until year of construction 2012)

Filter inserts for settling tank (from year of construction 2013)

耗材用于完美的金相样品制备

Dia-COMPLETE Poly,
二合一多晶金刚石悬浮液

Dia-COMPLETE Mono,
二合一单晶金刚石悬浮液

金刚石悬浮液 (酒精基)
多晶

金刚石悬浮液 (酒精基)
单晶

金刚石悬浮液 (油基)
多晶

Fine polishing suspension (Al2O3)
• does not crystallize
•for ferrous materials, polymers, composites, PCB, rocks and minerals

Colloidal silica
• for polishing, also mixable with diluted etchant
•

Colloidal silica
• for titanium, nickel, tin and its alloys

Water-free fine polishing suspension
• e.g. for magnesium, zinc

Magnetic foil, normal adhesion
• to apply on working wheel

Magnetic foil, strong adhesion
• to apply on working wheel

Magnetic foil, strongest adhesion
• to apply on working wheel-HR-• increased magnetic adhesion by higher material thickness

GALAXY – ALPHA
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: Magnetic foil

GALAXY – BETA
• Suitable for pre-polishing
• Hard synthetic cloth
• Materials with high hardness, steel, grey cast iron, hard metal, ceramics
• For use with diamond grain size: 15/9/6 µm
• Fixation system: Magnetic foil

GALAXY – DELTA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

GALAXY - GAMMA
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK]
• For use with diamond grain size: 9/6/3 µm
• Fixation system: Magnetic foil

GALAXY – PHI
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: Magnetic foil

GALAXY – SIGMA
• Suitable for intermediate and end polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: Magnetic foil

GALAXY – ETA
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: Magnetic foil

GALAXY – OMEGA
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
•, For all materials
•, Suitable for oxide suspensions
• Fixation system: Magnetic foil

ALPHA – Polishing cloth
• Suitable for pre-polishing
• Very hard, perforated chemical fiber cloth
• For ceramics, hard metal, steel, grey cast iron, aluminum
• High lifetime and stock removal
• For use with diamond grain size: 15/9 µm
• Fixation system: X-Tap

DELTA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, plastics [CFK, GFK], coatings, aluminum
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

GAMMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Medium hard silk cloth
• C-steels, precious metal, coatings, plastics [CFK, GFK],
• For use with diamond grain size: 9/6/3 µm
• Fixation system: X-Tap

PHI – Polishing cloth
• Suitable for pre-, intermediate-, and end polishing
• Medium hard chemical fiber cloth
• For iron, non – ferrous metals, minerals, ceramics, composite materials
• For use with diamond grain size: 9/6/3/1 µm
• Fixation system: X-Tap

SIGMA – Polishing cloth
• Suitable for pre- & intermediate polishing
• Soft wool cloth
• For all materials
• For use with diamond grain size: 6/3/1 µm
• Fixation system: X-Tap

ETA – Polishing cloth
• Suitable for end polishing
• Short flocked, medium hard synthetic cloth
• For all materials of medium and high hardness
• For use with diamond grain size: 3/1 µm
• Fixation system: X-Tap

KAPPA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft polishing felt
• For all materials
• Suitable for alumina
• Fixation system: X-Tap

OMEGA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Soft synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions
• Fixation system: X-Tap

LAMBDA – Polishing cloth
• Suitable for fine polishing with fine polishing suspension
• Brushed, structured synthetic cloth (chemical resistant)
• For all materials
• Suitable for oxide suspensions as well as alumina
• Fixation system: X-Tap

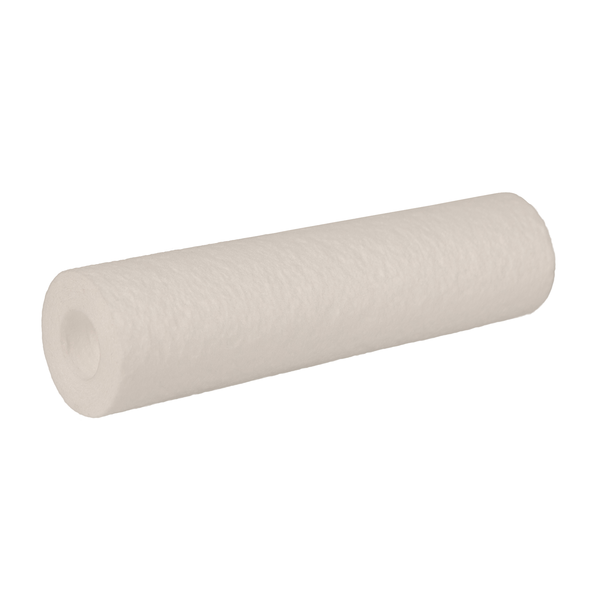

Filter inserts for settling tank
(until year of construction 2012)

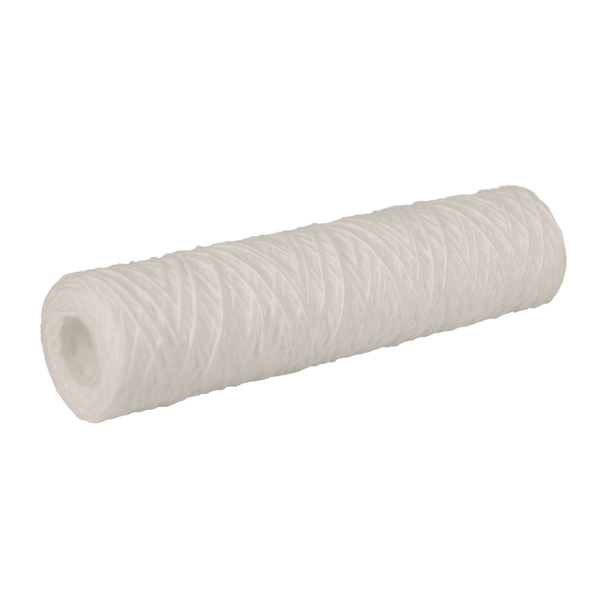

Filter inserts for settling tank
(from year of construction 2013)
