BRILLANT 230是一款精密动态的的手动湿式砂轮切割机，最大切割能力可达Ø 110 mm。 宽敞的切割室可完成各类夹紧操作。坚固的铝制左侧、右侧开口可用于切割连续的长形工件。
With the manual cutting movement, the cutting force is regulated through a set of gears. The cut is thereby yerk-free and more precise. The easy-to-use lever brake fixes the cutting disc in any position.
The sliding front door and the side door with safety interlock allow easy and optimal access to the cutter chamber. Further, the LED cutting chamber illumination is energy-saving. The arbour is protected against wearing by an interchangeable ring.
The manual horizontal movement allows cutting long parts longitudinally and easy positioning of the sample below the cut-off wheel.
The manual Z-axis can be adjusted with 0.1 mm precision for parallel cuts.
当使用正确的元素: 知识、保养和正确选择耗材和切割机进行加工时，切割更可靠、更安全、更高效。
我们创新的夹具用于安全、精确地夹紧工件，以确保精确的切割和磨削过程。针对特定的应用和工件尺寸，我们已经开发了各种不同的夹具。
| 切割轮 | up to ø 300 mm/12" |
| 最大切割能力 | ø 110 mm |
| 切割轮法兰尺寸 | ø 32 mm |
| Y轴 （垂直移动） | 125 mm |
| 载物台 宽x深 | 380 x 250 mm, 不锈钢 |
| T型槽 | 12 mm |
| 连接电源 | 6 kVA |
| 工作功率 （主载荷） | 4 kW S1 |
| 转速 | 2750 rpm |

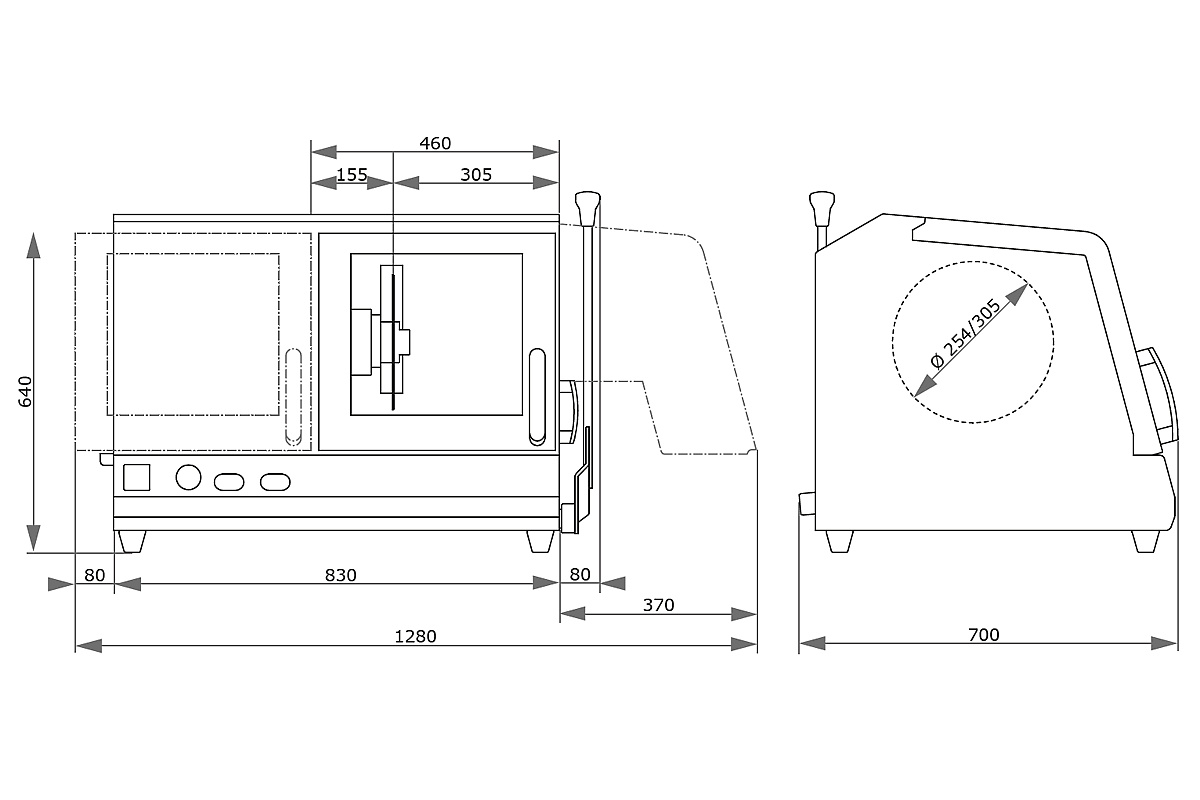

| 宽 x 高 x 深 | 830 x 640 x 670 mm |
保留技术变更和出错的权利
