Clamping tools for special applications for special applications

Cross clamp

Cross clamp 50/100

Cross clamp 80/100

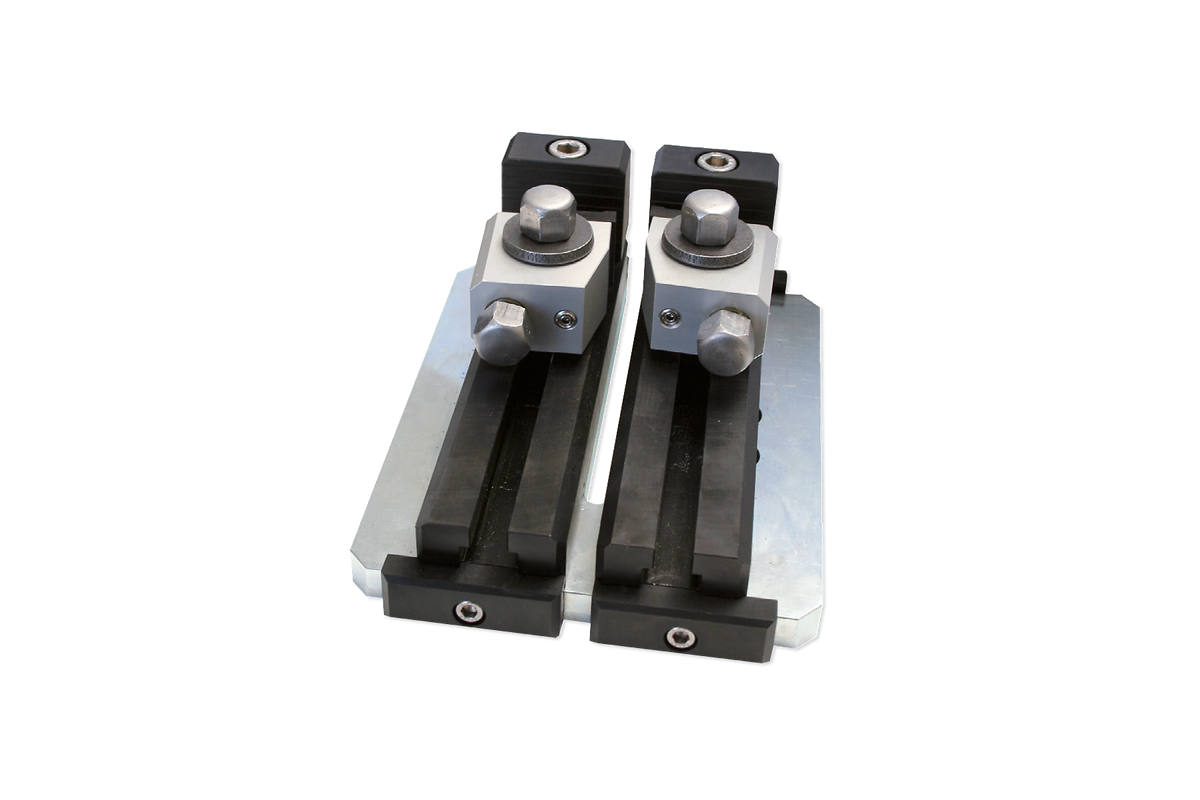

Transverse clamp 80/150

  Max. Sample cross-section Max. Sample diameter Span Groove width
Cross clamp 50/100 50x50 mm Ø 60 mm 100 mm 12 mm
Cross clamp 80/100 80x50 mm Ø 90 mm 100 mm 12 mm
Transverse clamp 80/150 80x50 mm Ø 90 mm 150 mm 12 mm

Highlights

  • Components with residual stresses tend to contract in the kerf and block the cut-off wheel when they are ripped open
  • For parallel clamping of round and rectangular workpieces, in particular for longitudinal sections in hardened materials
  • Fast workpiece change thanks to eccentric clamping elements

Compatibility cross clamp

Compatible with cut-off machine Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230 Brillant 255
Cross clamp 50/100
Compatible with cut-off machine Qcut 400 A Qcut 500 A Qcut 600 A/BOT Qcut 800 A
Cross clamp 80/100
Transverse clamp 80/150 x

Expansion clamping device

  • Components with residual stresses tend to contract in the kerf and block the cutting wheel when they are cut
  • Spreader clamps for residual stress relief of cylindrical, hollow workpieces
  • Components with inner diameter Ø 55-120 mm
  • Adjustment range ca. 10 mm

Expansion clamping device

Through extensive testing, we are able to provide the right clamping solution for every application.

Screw clamping system

  • For longitudinal cutting of screws
  • Clamping system with integrated Easy clamping plate M
  • For thread outer diameters from 4 to 12 mm
  • Includes tension wrench
  • Dimensions (H x W x D) 95 x 85 x 200 mm

Screw clamping system

Compatibility screw clamping system

Compatible with cut-off machine Qcut 200 A Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230
Screw clamping system

Vertical clamp

  • For clamping delicate, thin parts (e.g. rings, wires etc.)
  • Clamping system with integrated Easy clamping plate M
  • Includes adjustable stop
  • Separated segment remains clamped after completion of the cutting process

Vertical clamp single

Vertical clamp double

  • Possibility of making a double cut and thus cutting out a complete segment, e.g. from a ring

Compatibility vertical clamp

Compatible with cut-off machine Qcut 200 A Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230
Vertical clamp

Clamping system X-Clamp 3858

  • Form-fit fixing of the workpiece in seconds
  • Optimal fixing of complex workpieces
  • Perfect fit with minimum clamping force
  • No need for individual forming jaws and special fixtures

Clamping system X-Clamp 3858

Compatibility Clamping system X-Clamp 3858

Compatible with cut-off machine Qcut 200 A Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230
Clamping system X-Clamp 3858

Easy multifunctional plate

  • Base to vary the height of Qtool 60 and 80
  • Integrated clamping rail with prism for universal clamps
  • Prism for round components (Ø 6 - 37 mm)
  • Built-in easy function
  • Can be set up multiple times
  • Suitable for all universal clamps with slot nuts 12 mm
  • W x H x D: 250 mm x 80 mm x 40 mm

Matching modules

  • Qtool 60 series
  • Qtool 80 / Qtool 80 VARIO Series

Easy multifunctional plate

Compatibility Easy multifunctional plate

Compatible with cut-off machine Qcut 200 A Qcut 250 A Qcut 250 M Qcut 350 A Brillant 230 Brillant 255 Qcut 400 A Qcut 500 A Qcut 600 A/BOT Qcut 800 A
Compatibility Easy multifunctional plate

Clamping rail

  • Basis for the universal tensioners Mono, Duo and chain tensioners
  • For clamping shafts, crankshafts and camshafts
  • Adjustable prism supports
  • 2 inclined supports for component sizes: Ø 20 – 250 mm included in the scope of delivery
  • Universal clamp is mounted on a sliding carriage, so the component can be removed quickly and easily
  • W x H x D: 350 mm x 56 mm x 50 mm

Matching modules

  • Mono 61, Mono 132
  • Duo vice
  • Chain clamping vice

Clamping rail

Accessories for clamping rail

The prisms can also be used directly on the table without a clamping cable, as a base for the component to be tensioned.

Prism 120°

  • For component sizes Ø 40 - 210 mm
  • W x H x D: 110 x 60 x 40 mm

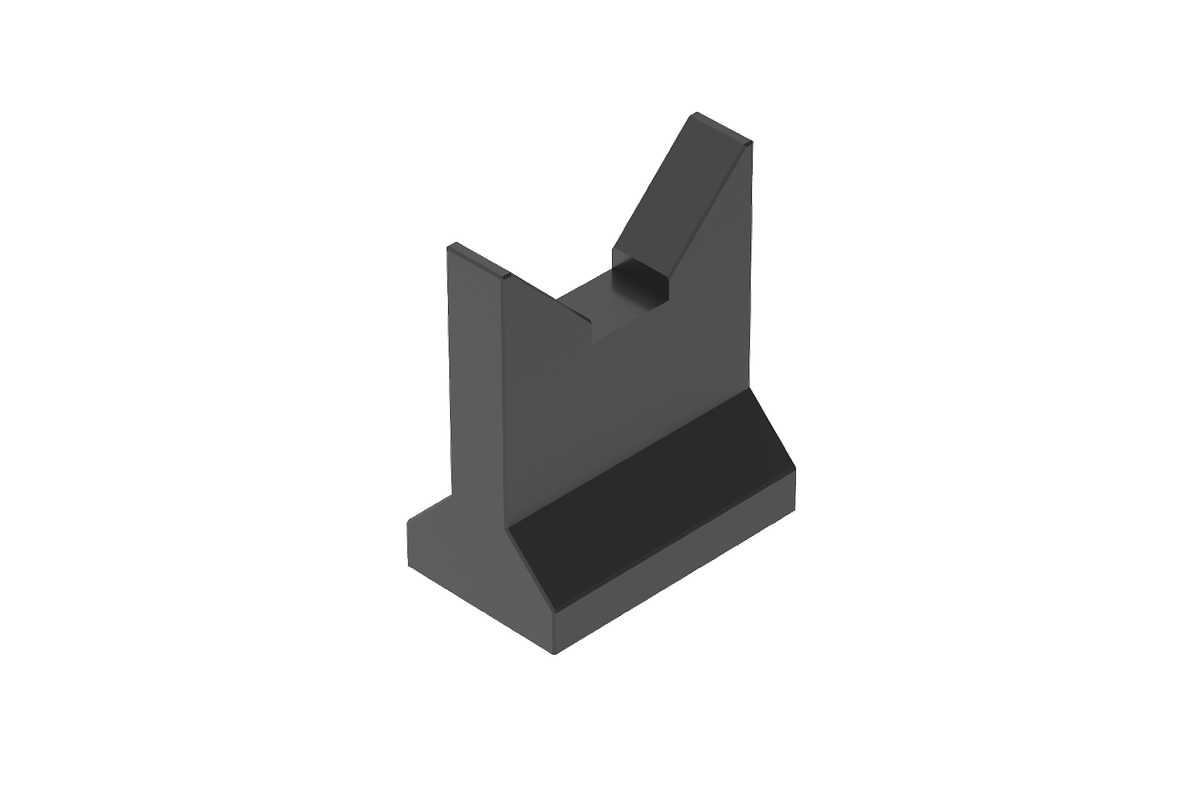

Prism narrow

  • Ideal for crankshafts and narrow supports
  • For component sizes Ø 28 - 85 mm

Prism 90°

  • For small cylindrical components
  • For component sizes Ø 8 - 51 mm
  • W x H x D: 40 x 50 x 40 mm

Prism 90° high

  • For small cylindrical components that require a height substructure
  • For component sizes Ø 8 - 51 mm
  • W x H x D: 40 x 100 x 40 mm

Compatibility clamping rail

Compatible with cut-off machine Qcut 350 A Brillant 255 Qcut 400 A Qcut 500 A Qcut 600 A/BOT Qcut 800 A
Compatibility clamping rail

完美的切割 – 由QATM设备提供

当使用正确的元素: 知识、保养和正确选择耗材和切割机进行加工时,切割更可靠、更安全、更高效。

如果您想了解更多关于不同程序的信息,请访问我们广泛的知识库。

我们关于切割的知识库文章包括:

  • 针对样品材料的典型方法
  • 不同的金相切割技术
  • 如何选择适宜的切割轮

金相分析取样

Do you already know which clamping unit you need? Then request a quote here!
