Easy adaptions, clamping device accessories

联系我们报价详情

Highlights

Unique quick-change easy system to quickly change and position QATM clamping systems
Time-consuming threading via slot nuts is no longer necessary
Easy function is integrated into the clamping device of the Qtool 80 series
Other series can be combined with the Easy clamping plates
Easy clamping plates allow for numerous combinations of clamping elements

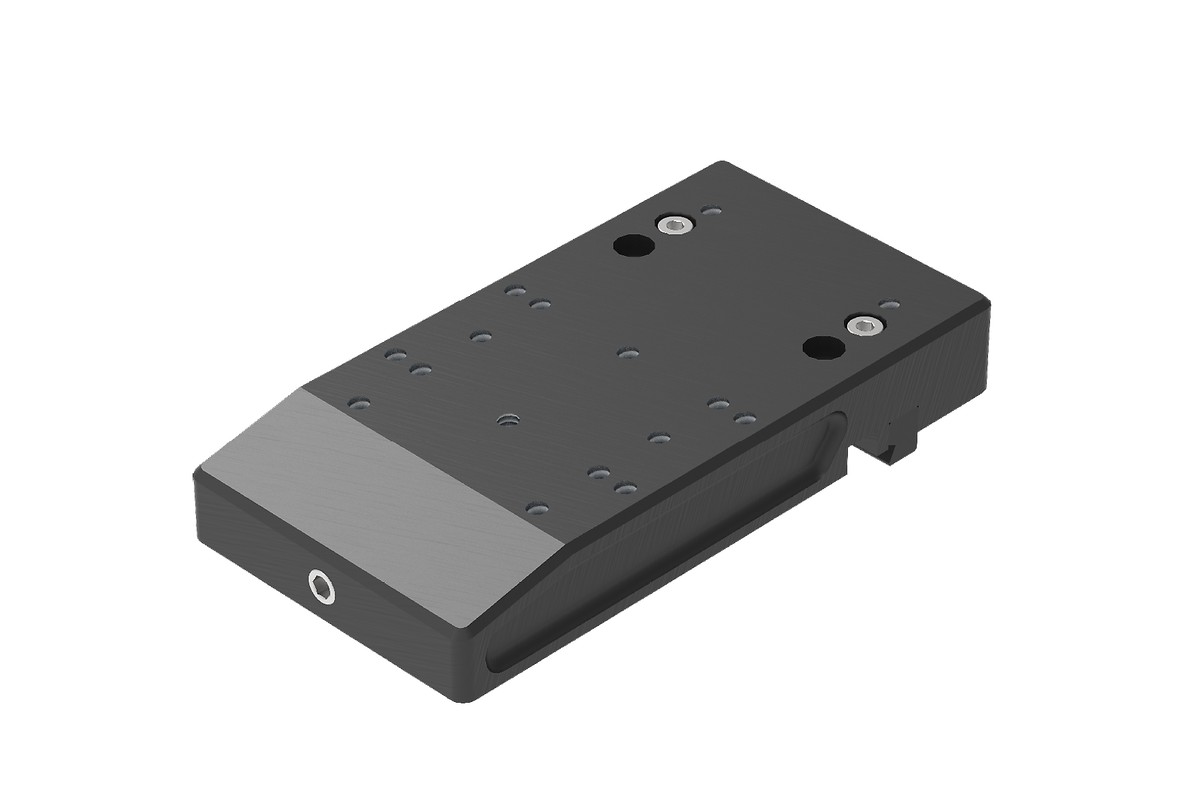

Easy clamping plate S

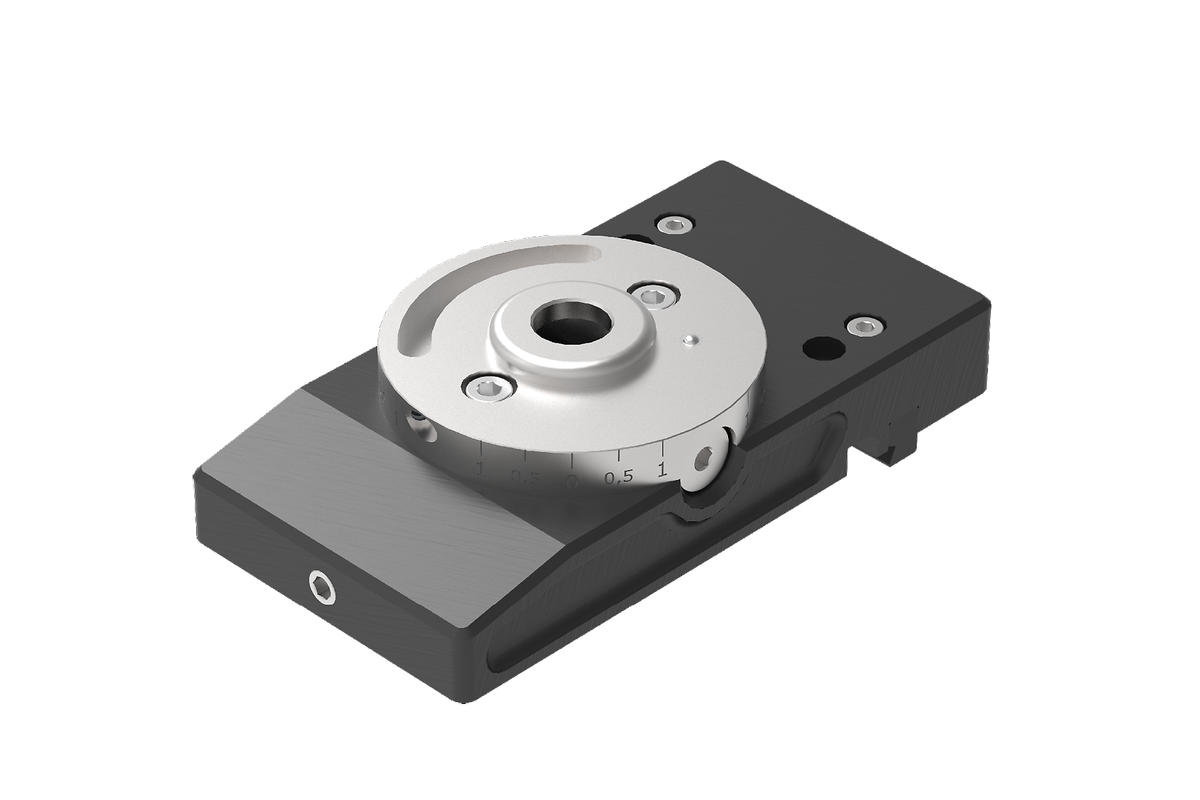

Easy clamping plate S with rotating function

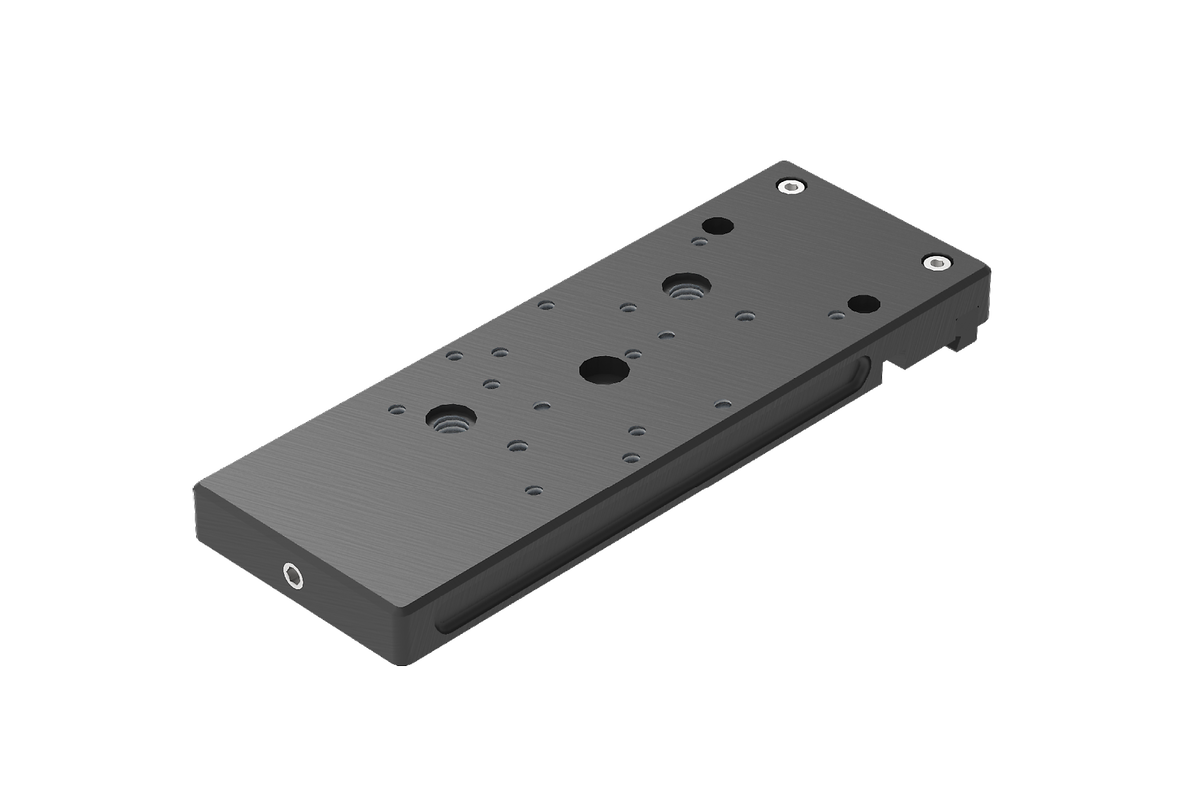

Easy clamping plate M

应用实例

Through extensive testing, we are able to provide the right clamping solution for every application.

Contact us for your optimum solution!

Easy clamping plate S

Matching modules

Qtool 40, Qtool 40 S
Qtool 60
Easy adaption vertical
Easy adaption horizontal
Multi-Tower Turntable
QATM Precision Clamping Devices (via Easy Adaptions)

	尺寸
Easy clamping plate S	20 mm x 70 mm x 136 mm

Compatibility chart

Compatible with cut-off machine	Qcut 200 A	Qcut 250 A	Qcut 250 M	Qcut 350 A	Brillant 230
Easy clamping plate S	✓	✓	-	✓	-

Easy clamping plate S with rotating function

Matching modules

Easy adaption vertical
Easy adaption horizontal
Easy Adaption Qtool 40-60
Z2236039 Multi-Tower
QATM Precision Clamping Devices (via adaption)
Z2236040 Swivel unit Qtool 40-60 (via Multi-Tower)
Qtool 40 / 60 (via Adaption / Swivel unit)

	尺寸
Easy clamping plate S with rotating function	20 mm x 70 mm x 136 mm

Compatibility chart

Compatible with cut-off machine	Qcut 200 A	Qcut 250 A	Qcut 250 M	Qcut 350 A	Brillant 230
Easy clamping plate S with rotating function	✓	✓	-	✓	-

Easy clamping plate M

Matching modules

Qtool 40, Qtool 40 S (e.g. 2 next to each other)
Qtool 60
Mold clamp X-Clamp 3858
Easy adaption horizontal
Easy adaption vertical
Multi-Tower Turntable
QATM Precision Clamping Devices (via Adaption)
Multi-Tower (via Multi-Tower Turntable)
Easy Adaption Qtool 40-60 (via Multi- Tower Turntable)
Qtool 40 / 60 (via Adaption / Swivel unit)

	尺寸
Easy clamping plate M	15 mm x 70 mm x 196 mm

Compatibility chart

Compatible with cut-off machine	Qcut 200 A	Qcut 250 A	Qcut 250 M	Qcut 350 A	Brillant 230
Easy clamping plate S with rotating function	✓	✓	-	✓	✓

Easy multifunctional plate

Base to vary the height of Qtool 60 and 80
Integrated clamping rail with prism for universal clamps
Prism for round components (Ø 6 - 37 mm)
Built-in easy function
Can be set up multiple times
Suitable for all universal clamps with slot nuts 12 mm
W x H x D: 250 mm x 80 mm x 40 mm

Matching modules

Qtool 60 series
Qtool 80 / Qtool 80 VARIO Series

Easy multifunctional plate

Compatibility Easy multifunctional plate

Compatible with cut-off machine	Qcut 200 A	Qcut 250 A	Qcut 250 M	Qcut 350 A	Brillant 230	Brillant 255	Qcut 400 A	Qcut 500 A	Qcut 600 A/BOT	Qcut 800 A
Compatibility Easy multifunctional plate	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓

Do you already know which clamping unit you need? Then request a quote here!

Accessories for Easy clamping plates

Adaptations for precision clamping devices / for direct clamping of mounted samples

Easy adaption horizontal

Direct clamping of mounted samples (with reduction ring)
Holder for precision clamping devices
Horizontal mount for quick clamping of various small clamping devices with adapter Ø 50 mm
Dimensions: Ø 69 mm x 28 mm (W x H x D)

Matching modules

Easy Clamping Plate S, S with rotating function, Plate M
QATM precision clamping devices (e.g. matrix clamps, etc.)
Reduction ring

Easy adaption vertical

Direct clamping of mounted samples (with reduction ring)
Holder for precision clamping devices
Vertical mount for quick clamping of various small clamping devices with adapter Ø 50 mm
Dimensions: 74 mm x 69 mm x 74.5 mm (W x H x D)

Matching modules

Easy Clamping Plate S, S with rotating function, Plate M
QATM precision clamping devices (e.g. matrix clamps, etc.)
Reduction rings

Easy Adaption Qtool 40-60

Adapter for Qtool 40 and Qtool 60
Stops for aligning the Qtool 40
Quick clamping holder for quick fastening, e.g. on Easy-Clamping Plate S with rotating unit (Z2236031)
Dimensions: Ø 69 mm x 28 mm (W x H x D)

Matching modules

Qtool 40 / S, Qtool 60
Easy Clamping Plate S with rotating function

Multi-Tower Turntable

Quick clamping holder for quick change and release of the head joints
Angular scale ½°; Angle grid 15°
Dimensions: Ø 70 mm x 17 mm (W x H)

Matching modules

Multi-Tower
Easy clamping plate M
Qtool 40 / 60 (via Multi-Tower)
Swivel unit Qtool 40-60 (via Multi- Tower)

Multi-Tower

Module with 2 axes of rotation (angular scale ½°)
Possibility of multidimensional alignment of clamping devices
360° rotation range with adjustable stops
Dimensions: 70 mm x 90 mm x 70 mm (W x H x D)

Matching modules

Easy clamping plate S with rotating function
Multi-tower turntable
Multi-tower (several times in a row)
Easy adaption Qtool 40-60
Easy clamping plate M (via Mutli- Tower Turntable)
Qtool 40 / 40 S / 60 (via Adaption)

Swivel unit Qtool 40-60

Possibility to swivel the Qtool 40 / Qtool 60
Swivel range ±90
Dimensions: 70 mm x 90 mm x 70 mm (W x H x D)

Matching modules

Easy clamping plate S with rotating function
Multi-Tower
Easy plate M (via Multi-Tower)
Qtool 40 / 60 (via Adaption)
