Power clamping systems for large cutting machines

Universal power clamping system 100/540

Highlights

  • Integrated mechanical-hydraulic power transmission
  • Incl. fastening material for T-slots 12 mm
  • Max. clamping force 25 kN
  • W x H x D: 100 x 104 x 625 mm
Clamping range Jaw width Jaw height Clamping force
Universal power clamping system 100/540 0 - 365 mm 100 mm 30 mm 28 kN

Compatibility Universal power clamping system

Compatible with cut-off machine Qcut 400 A Qcut 500 A Qcut 600 A/BOT Qcut 800 A
Direct mounting via T-slot nut

Through extensive testing, we are able to provide the right clamping solution for every application.

Accessories for clamping system 100/540

With the accessories, the power clamp can be individually modified to suit the components to be cut and the clamping situation.

Prism clamping jaw

  • Horizontal prism
  • Can be combined with flat clamping jaw
  • Jaw width: 100 mm
  • Prism for Ø 10 - 100 mm

Clamping jaw flat

  • Jaw height: 80 mm
  • Jaw width: 100 mm
  • Ribbed clamping surface
  • For clamping parallel bodies
  • Can be combined with prism clamping jaw

Angular drive

  • Possibility to clamp the component comfortably from above

Universal power clamping system LC 90

Highlights

  • Simple and safe clamping of a wide variety of workpieces
  • A wide variety of easy-to-change clamping jaws
  • Low effort due to mechanical force transmission
  • Clamping force pre-adjustable in 11 steps (up to 28 kN)
  • incl. fastening material for T-slots 12 mm and hand crank
Clamping range Jaw width Jaw height Clamping force
Universal power clamping system LC 90 0 - 217 mm 100 mm 70 mm 25 kN

Compatibility Universal power clamping system LC 90

Compatible with cut-off machine Qcut 400 A Qcut 500 A Qcut 600 A/BOT Qcut 800 A
Direct mounting via T-slot nut

Accessories for clamping system LC 90

The LC 90 power clamp builds the basis of the clamping system. Depending on the application, it is supplemented with one of the following modules. It can be used to powerfully and securely clamp a wide range of irregularly shaped components

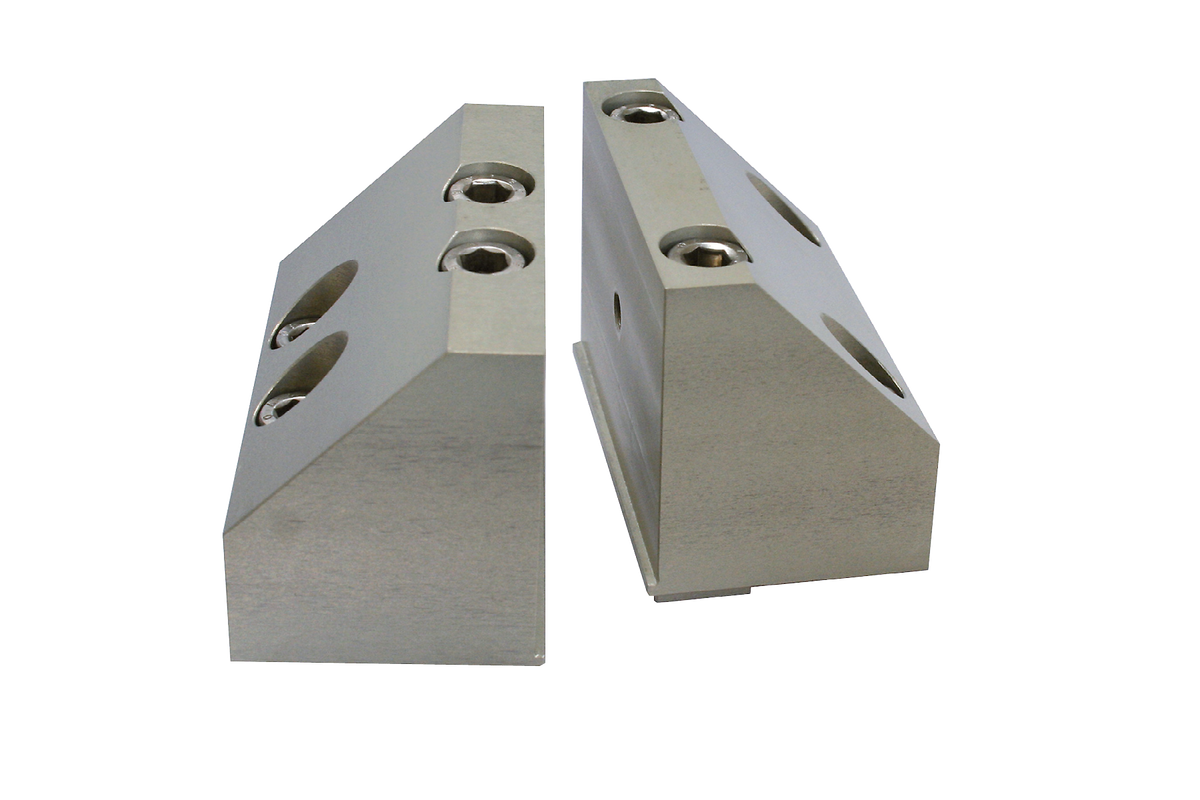

Carrier Claws LC 90

  • Carrier module for clamping jaws
  • Base for prism jaw and V-groove jaw 100
  • Made of high-strength aluminium with ceramic coating
  • Jaw width: 100 mm

V-Groove jaw 100

  • Jaw height: 70 mm
  • Jaw width: 100 mm
  • 1 pc., can be combined with clamping jaw flat
  • Rotatable jaw made of hardened steel
  • Surface with two horizontal prisms for clamping round material from Ø 10 to 100 mm

Clamping jaw flat

  • Smooth clamping surface
  • For clamping parallel bodies
  • 1 pc., can be combined with V-groove jaw 100

Quick-change adapter

  • Fast and secure connection of the individual modules by means of pull-down pins
  • For fastening
    • Step jaw 100
    • Clamping system X-Clamp 100
    • Customer-specific solutions

Step jaw 100

  • Jaw height: 65 mm
  • Jaw width: 100 mm
  • Clamping of parallel workpiece surfaces
  • Clamping force generation via basic module LC 90
  • Step jaw can be rotated 180°
  • Use only with quick-change adapter

Clamping system X-Clamp 100

  • Individual and safe clamping of a wide variety of specimens and free-form parts by means of individually spring-loaded rams made of stainless steel
  • Perfect fit with minimum clamping force
  • Minimal time expenditure
  • Use only with quick-change adapter
  • incl. torque wrench and fastening screws

Socket 90°

  • For assembly of the basic module LC 90 in lateral position 90°
  • For T-slots DIN 650 12 mm

Support Element

  • Jaw height: 70 mm
  • Jaw width: 100 mm
  • 1 piece for supporting long components
  • Reduction of vibrations
  • Spring-loaded rams attach themselves to the workpiece
  • Additional fixation of the component from above with universal clamp possible
  • Fast and safe connection of the individual modules by means of pull-down pins

Special clamping jaws

  • QATM Service: Send us your component drawing as DXF or DWG file or photos of your component. We plan your optimal clamping device

完美的切割 – 由QATM设备提供

当使用正确的元素: 知识、保养和正确选择耗材和切割机进行加工时,切割更可靠、更安全、更高效。

Do you already know which clamping unit you need? Then request a quote here!
