Precision clamping devices

联系我们报价详情

Suitable for regular and irregularly shaped samples. They can be used universally in the QATM adaptations (rotating device, Easy Adaption horizontal and vertical as well as the clamping arm).

Can be installed directly on:

Easy adaption vertical
Easy adaption horizontal
Rotation device type RD1 and RD2

附件配件

Easy clamping plate S with rotating function
Easy clamping plate S

Through extensive testing, we are able to provide the right clamping solution for every application.

Contact us for your optimum solution!

Sample Holder Standard (open)

优点

For round or irregular samples
3-point tension
Up to 6 fixing screws
Open for long, large round samples up to Ø 40 mm
Adapter Ø 50 mm

订单数据

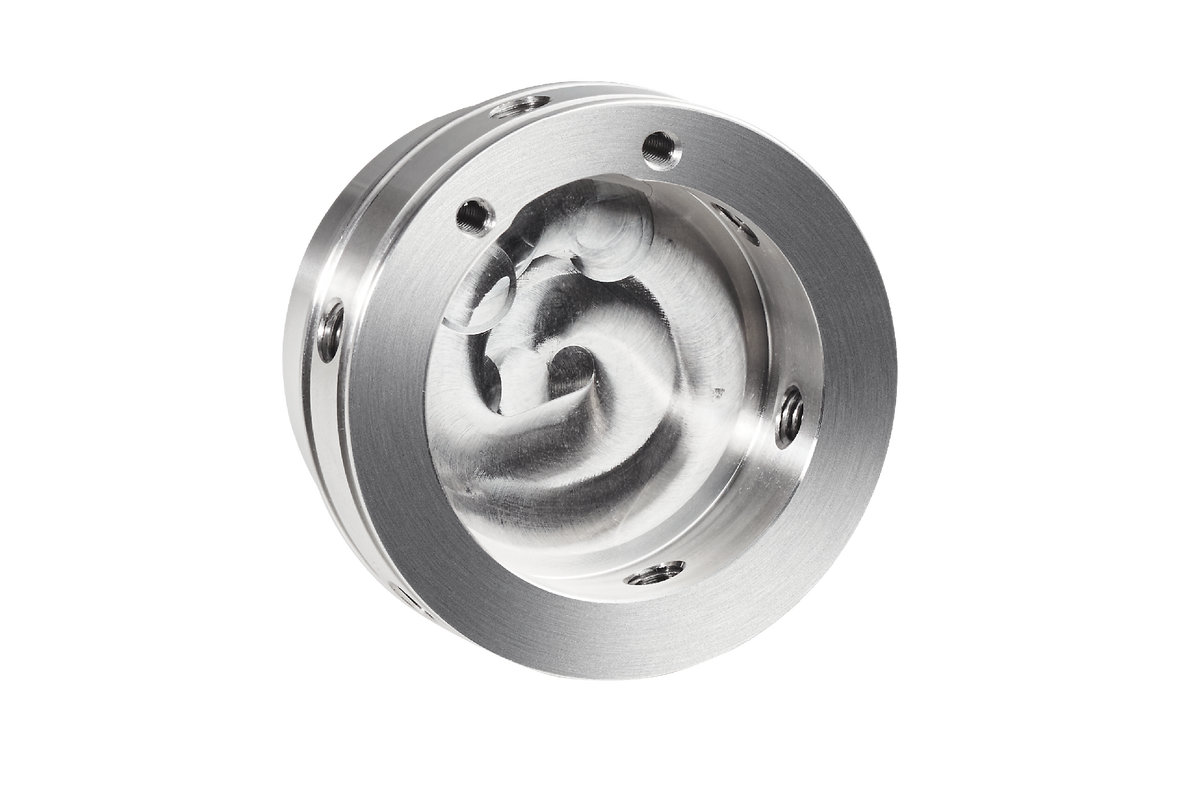

Sample holder standard (closed)

优点

For round or irregular samples
3-point tension
Up to 6 mounting screws
with fixed stop - depth 15 mm
for short, large round samples up to Ø 40 mm
Adapter Ø 50 mm

订单数据

Sample Holder Flex

优点

For round or irregular samples
3-point tension
Up to 6 fixing screws
For installation into grinding and polishing machines
For specimens up to Ø 40 mm - depth 21 mm
Adapter Ø 50 mm

订单数据

Sample Holder Parallel clamping vice (open)

优点

Parallel clamping jaws
Variable span
for flat samples
for samples up to Ø 40 mm
Adapter Ø 50 mm

订单数据

Sample Holder Parallel Clamping Vice (closed)

优点

Parallel clamping jaws
Variable span
for flat samples
with fixed stop, depth 27 mm
for samples up to Ø 40 mm
Adapter Ø 50 mm

订单数据

Drop Shape Sample Holder

优点

For round or irregular samples (Ø 13 - Ø 40 mm)
12 mm clamping depth
3-point tension
Adapter Ø 50 mm

订单数据

Universal clamping vice

优点

For samples of any sample geometry, rings
Max. sample cross-section: 40 mm x 40 mm
3-point tension
Adapter Ø 50 mm

订单数据

Matrix clamping vice

优点

For irregularly shaped samples
Max. clamping range: 0 - 40 mm
Adapter Ø 50 mm

订单数据

Mini vice

优点

Max. clamping range: 0 - 40 mm
Clamping range with prism jaw: 0 - 35 mm
Incl. prism jaw
Adapter Ø 50 mm

订单数据

Double parallel vice

优点

Parallel clamping jaws
Fixing a sample at two clamping points
Components remain clamped even after cutting
for cutting wheels up to Ø 150 mm
Max. clamping range: 0 - 40 mm
Adapter Ø 50 mm

订单数据

Adapter with ball joint

优点

Swivel device for aligning the sample to the cutting wheel
Can be combined with all clamping devices
Swivel range ±18°
Adapter Ø 50 mm

订单数据

Vacuum clamping unit

优点

For the preparation of plane-parallel sample surfaces
Suitable for clamping glass slides 28 mm x 48 mm
Stops can be recessed via an integrated handwheel for plan-parallel grinding of the ceramic stone.
A vacuum pump is required to generate the vacuum
For use on:
- Qcut 150 A/M
  (clamping arm L required)
- Qcut 200 A
  (Easy adaption vertical required)

订单数据

Reducer Ring

优点

Reducer ring for direct clamping of mounted samples
Outer diameter Ø 50 mm
For mounted samples with Ø 25 mm, 30 mm, 40 mm, 1", 1 ¼", 1 ½
Can be used in rotary device and Easy adaption vertically / horizontally
For use on:
- Qcut 150 A/M (clamping arm L required)
- Qcut 200 A (Easy Adaption vertical required)

订单数据

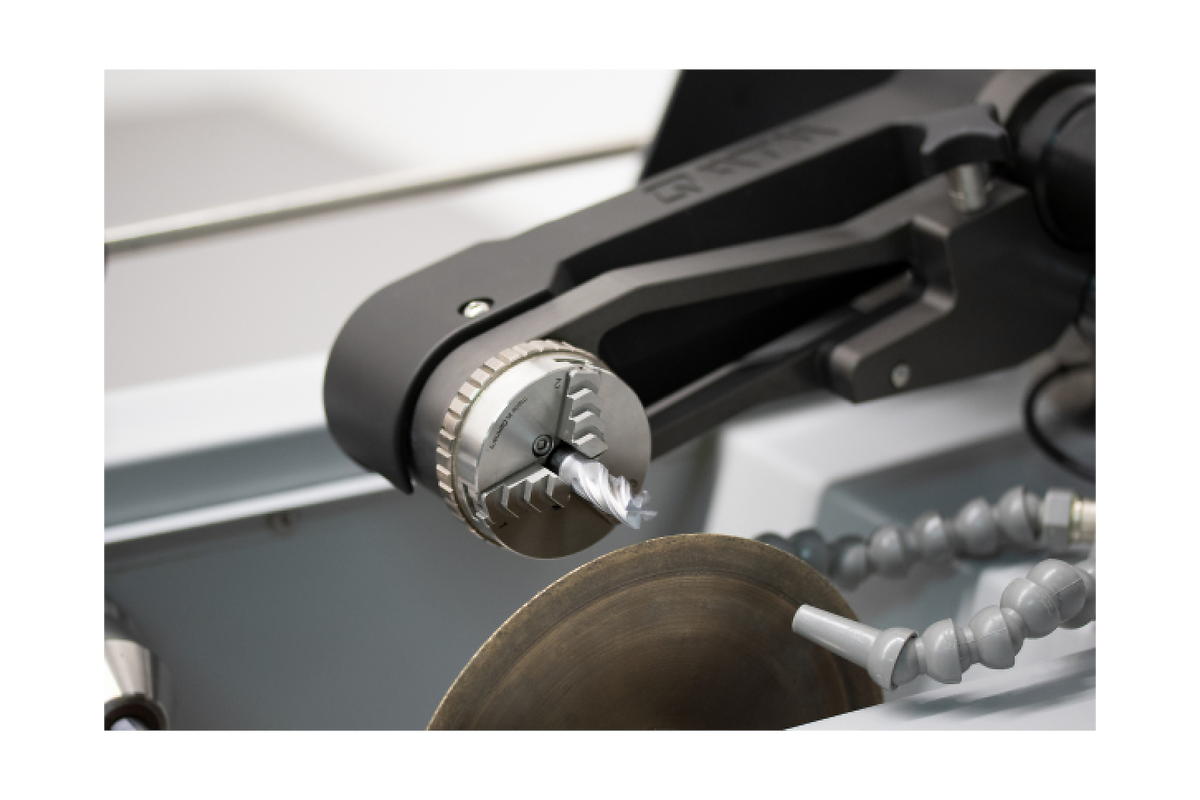

Hand Chuck

优点

Available in 3 sizes
Clamping jaws can be used on both sides
Clamping range Ø 32 mm:
- on the inner diameter of the component: 11 - 23 mm
- on the outer diameter of the component: 1 - 32 mm
Clamping range Ø 44 mm:
- on the inner diameter of the component: 13 - 48 mm
- on the outer diameter of the component: 1 - 44 mm
Clamping range Ø 56 mm:
- on the inner diameter of the component: 12 - 56 mm
- on the outer diameter of the component: 1 - 56 mm

订单数据
