研磨抛光机 Saphir 560 / Rubin 520

研磨抛光机 SAPHIR 560 / RUBIN 520

在这个页面你可以申请报价。

请选择您想包括的项添加到你的询价单。你可以选择项目从任何产品页面。 你的询价单将会显示在网站的右上角。

通用咨询

不确定您需要那些项目或者您想要一个总报价?

给我们发送一般性咨询

Basic Equipment

Machine (all items required)

M5600160
Saphir 560 Base machine


Power supply (1 item required)

A5600055Saphir 560 Rubin 520 power 220-230V/50/60Hz sep.
A5600056Saphir 560 Rubin 520 power 110V/60Hz (1Ph) sep.


Basic set (item required)

Z5600013 Basic set for Saphir 560 / Rubin 520


Controlled removal (1 item required)

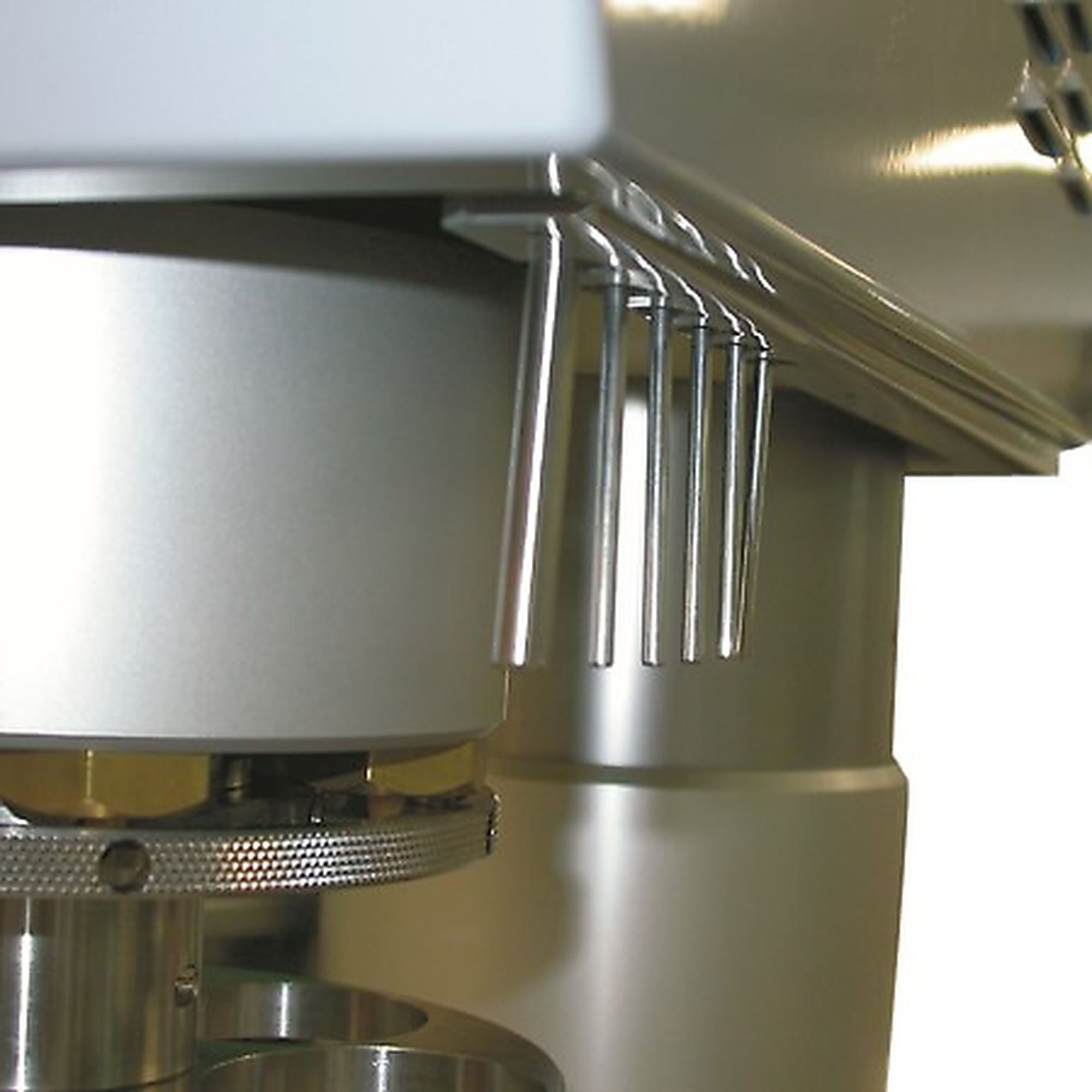

A5600053Rubin 520 polishing head without removal
A5600054Rubin 520 polishing head with removal measuring

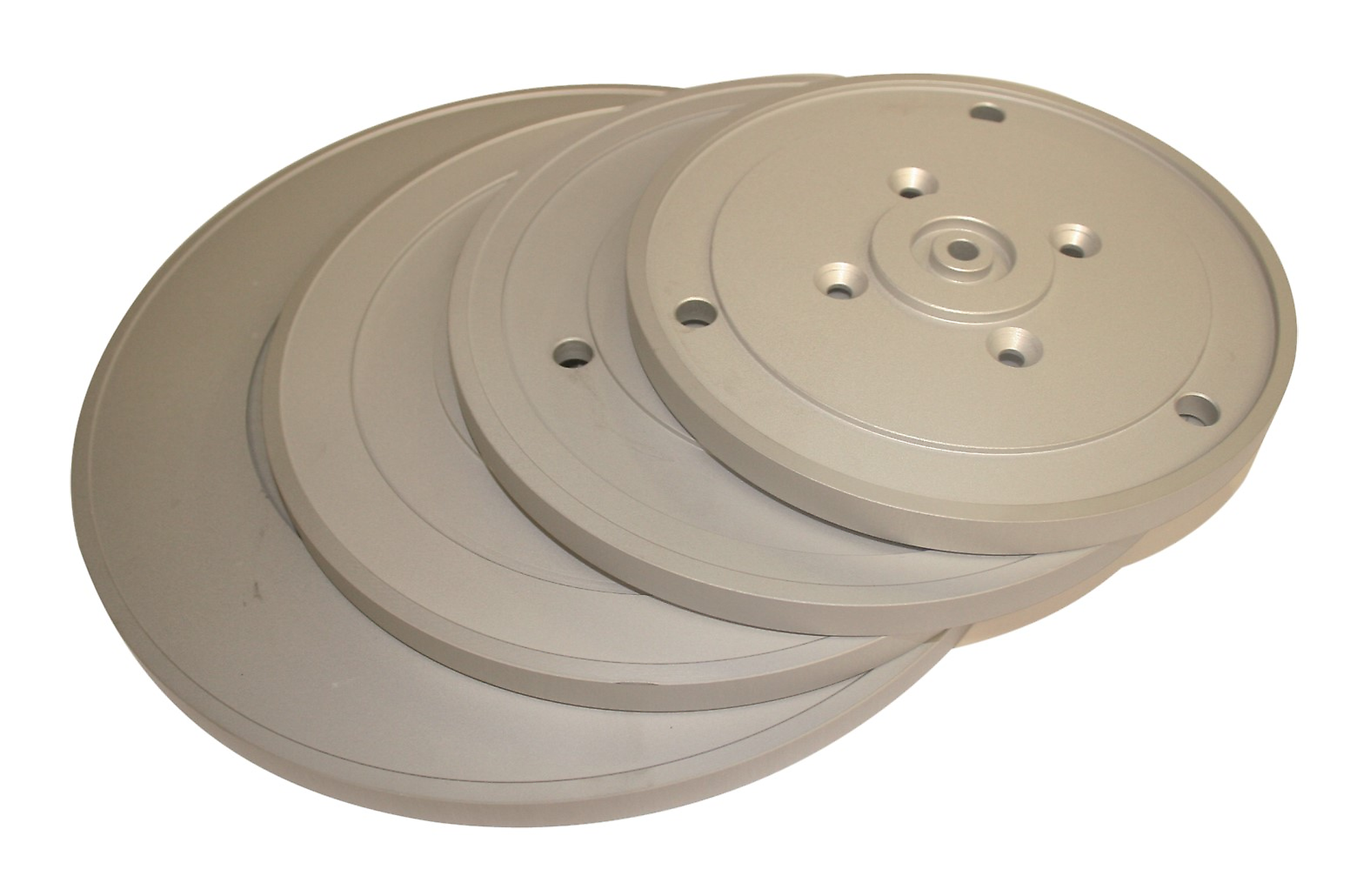

Carrier wheel (items required)

05610037Carrier wheel Ø 200 mm
05610058Carrier wheel Ø 230 mm
05610057Carrier wheel Ø 250 mm
05610059Carrier wheel Ø 300 mm

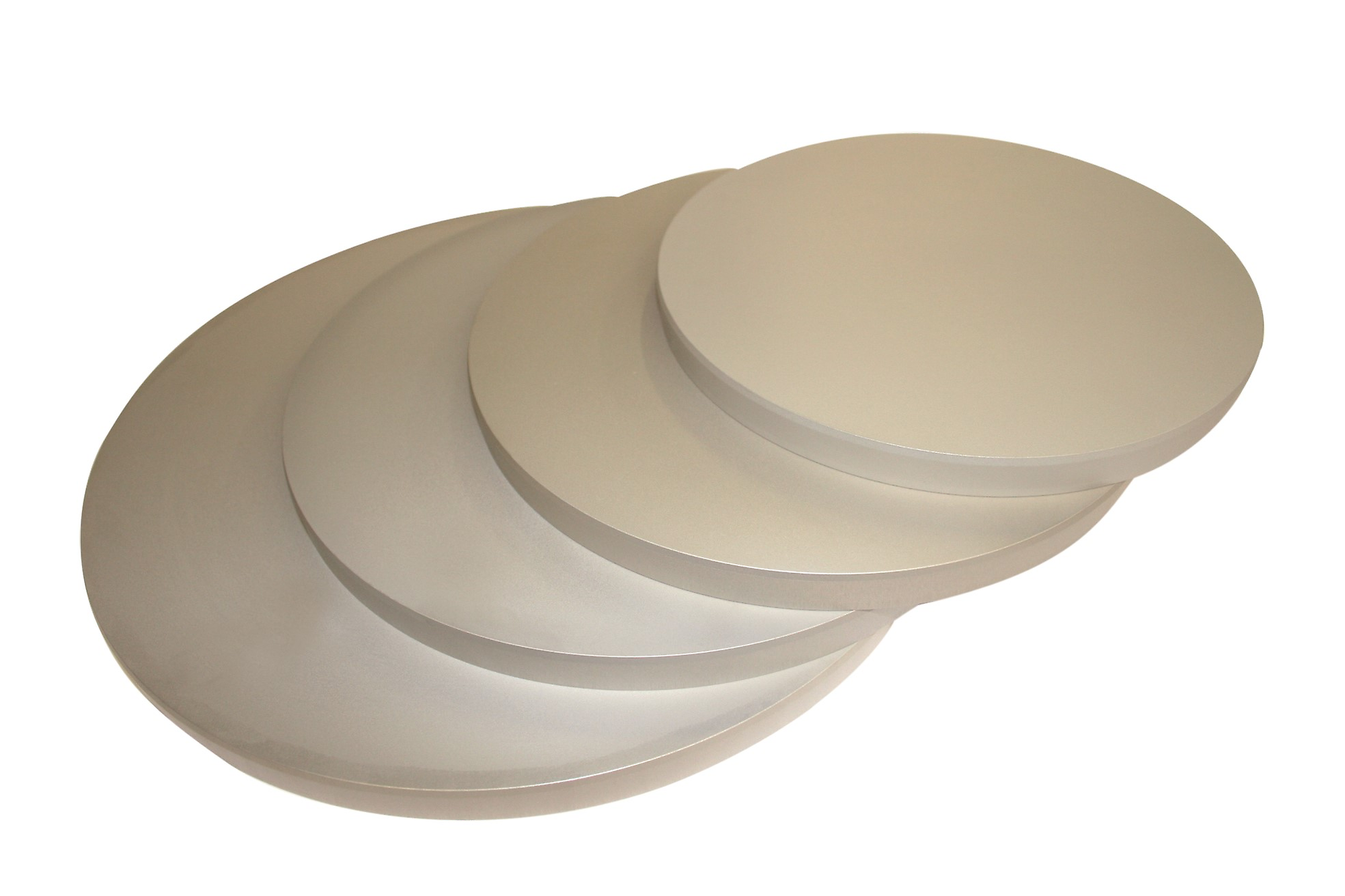

Working wheel (items required)

Z5610034Working wheel Ø 200 mm
Z5610030Working wheel Ø 230 mm
Z5610031Working wheel Ø 250 mm
Z5610032Working wheel Ø 300 mm


Dosing unit (to be ordered with the machine)

A5400001Rubin 520 Dosing unit

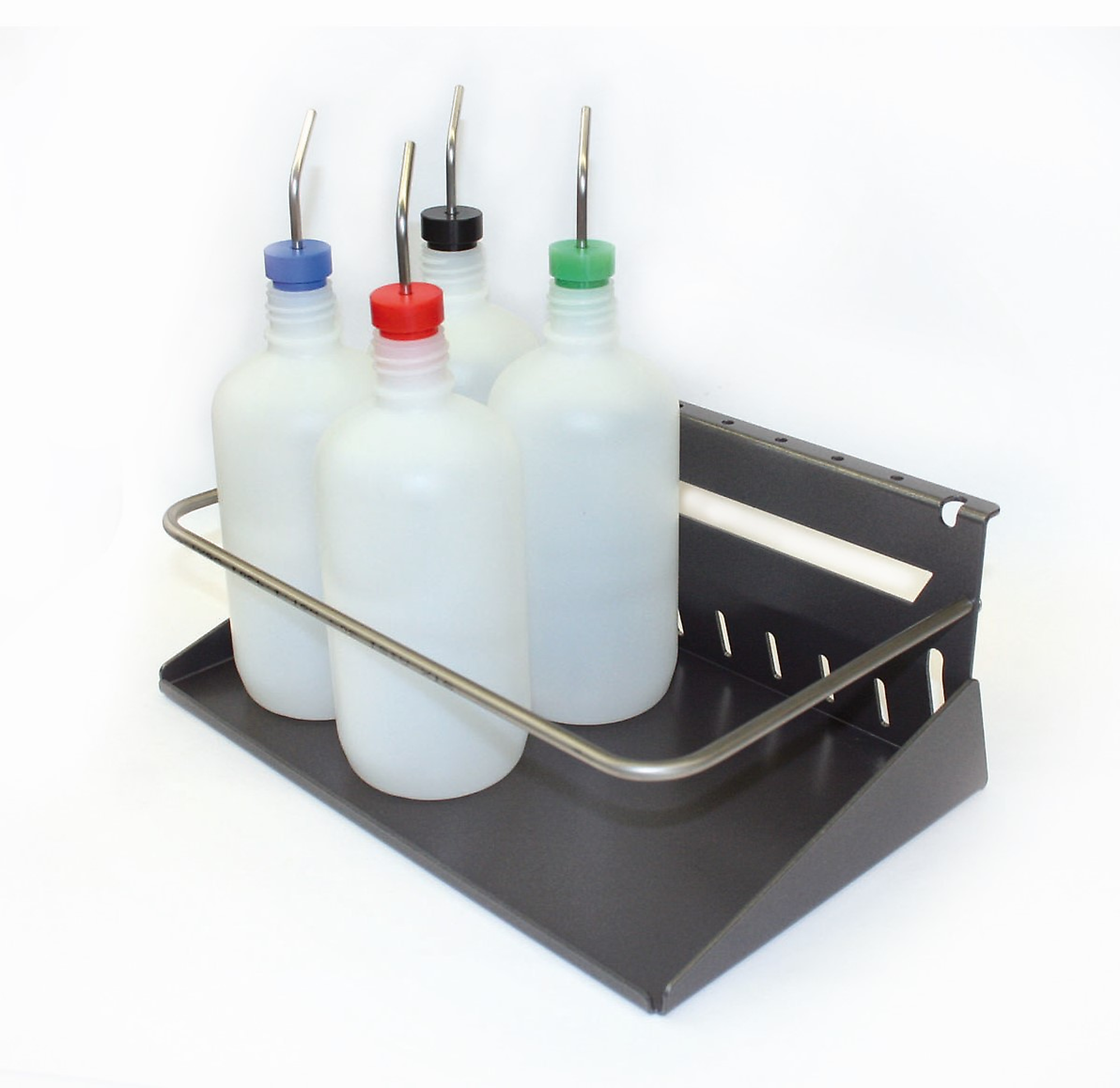

Z5410006Bottle holder for Rubin 520/530


Sample holder (1 item required)

Z5400087Sample holder Rubin 520 single pressure Ø159x10mm Rnd 6xØ50mm (1xM6)
Z5400161Sample holder Rubin 520 central pressure Ø160 12x Ø25mm
Z5400160Sample holder Rubin 520 central pressure Ø160 9x Ø30mm
Z5400159Sample holder Rubin 520 central pressure Ø160 9x Ø32mm
Z5400158Sample holder Rubin 520 central pressure Ø160 6x Ø38mm
Z5400157Sample holder Rubin 520 central pressure Ø160 6x Ø40mm
Z5400156Sample holder Rubin 520 central pressure Ø160 5x Ø50mm


Options (can be ordered separately)

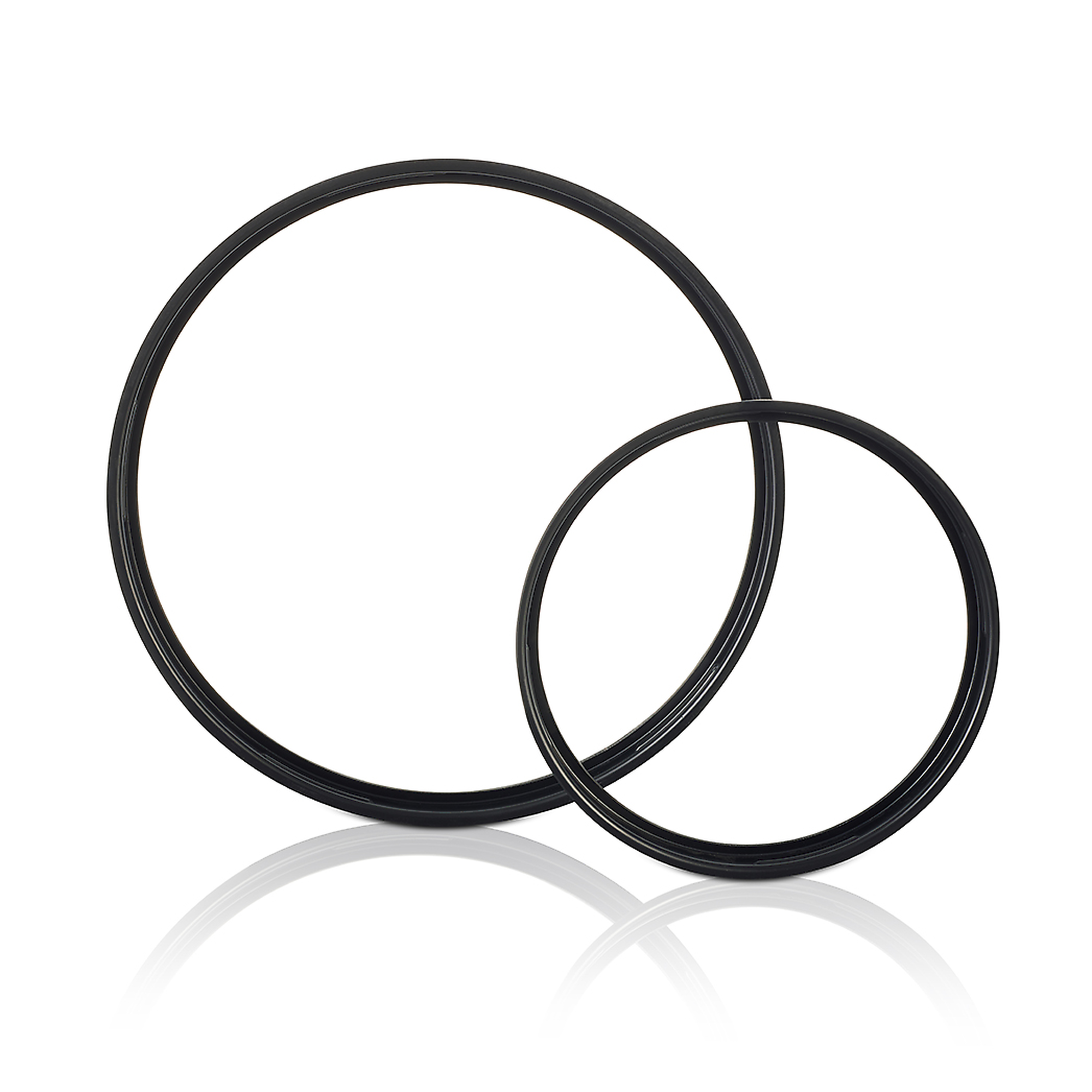

05610228Clamping ring Ø 200 mm
05610227Clamping ring Ø 230 mm
05610226Clamping ring Ø 250 mm
05610225Clamping ring Ø 300 mm
92008528Magnetic Foil Ø 200 x 1,0mm PSA
92006591Magnetic Foil Ø 230 x 1,0mm PSA
92005820Magnetic Foil Ø 250 x 1,0mm PSA
92005822Magnetic Foil Ø 300 x 1,0mm PSA

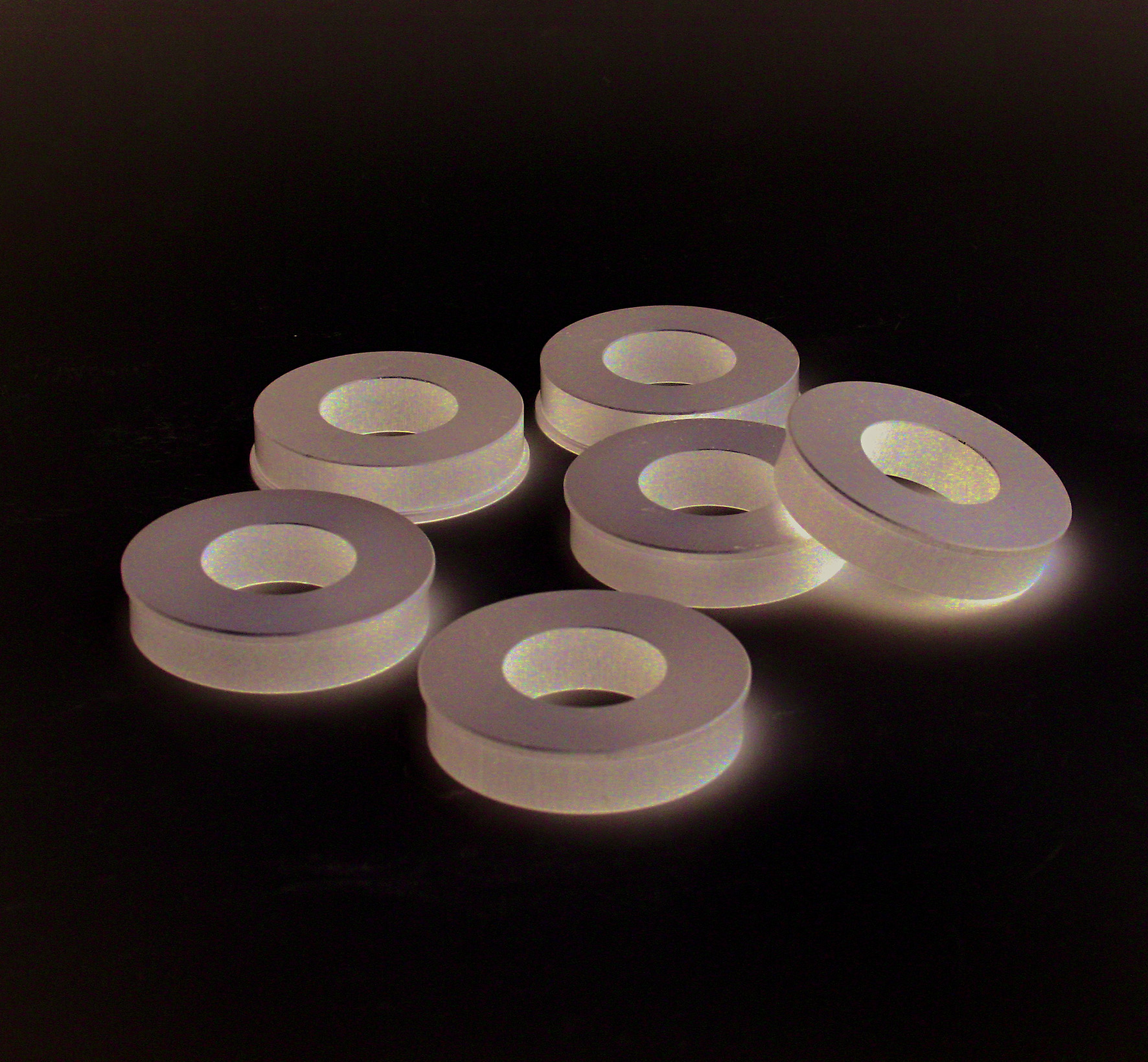

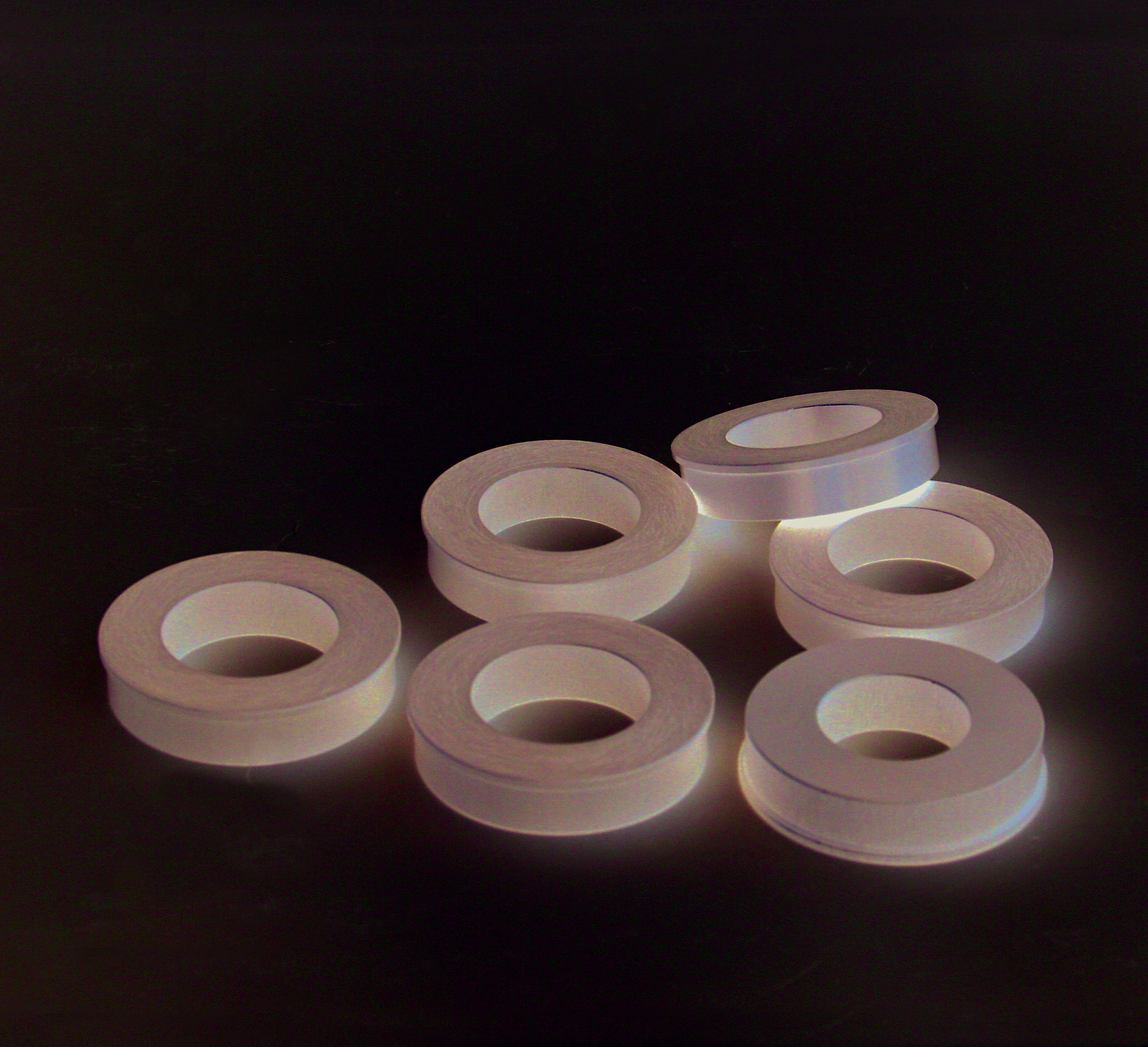

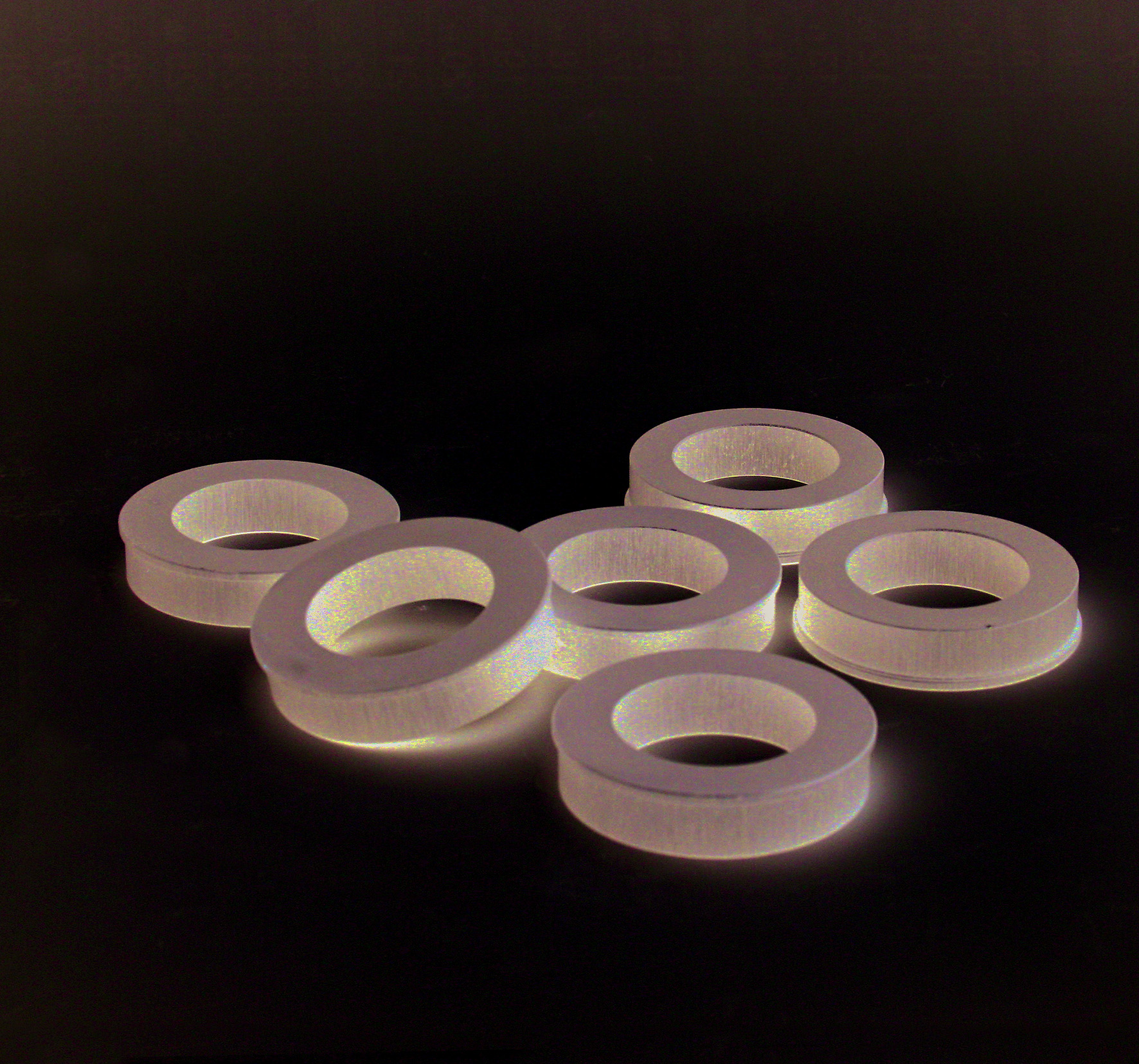

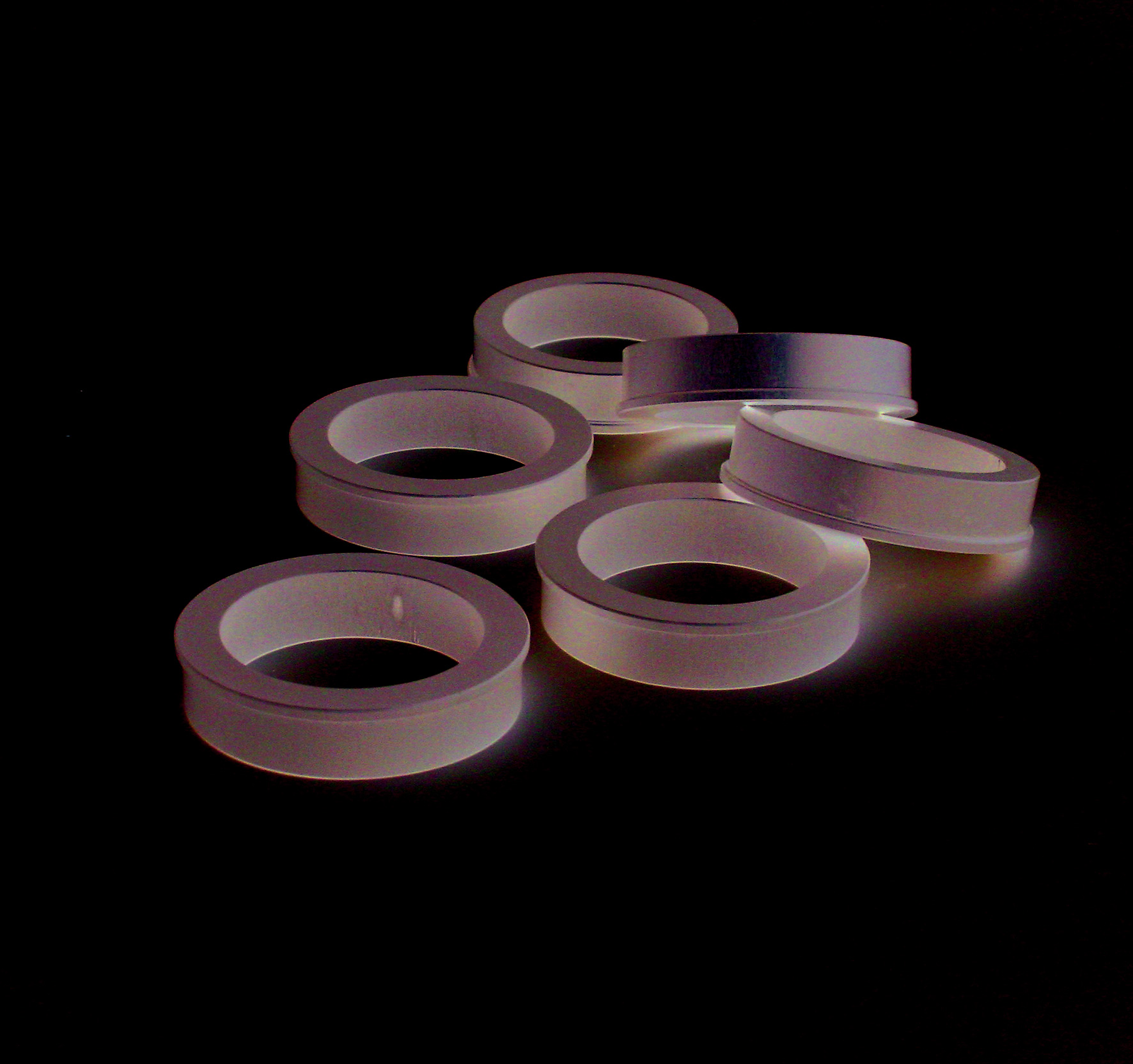

05400086Distance ring Ø25 mm (for Ø50mm Hole)
05440138Distance ring Ø 1" mm (for Ø50mm Hole)
05400085Distance ring Ø30 mm (for Ø50mm Hole)
05440139Distance ring Ø 1¼" (for Ø50mm Hole)
05400084Distance ring Ø32 mm (for Ø50mm Hole)
05400083Distance ring Ø38 mm (1,5") (for Ø50mm Hole)
05400082Distance ring Ø40 mm (for Ø50mm Hole)
05400114Levelling plate Ø160mm 2mm
05400246Levelling plate Ø160mm 4mm
Z5600009Connection-Set Saphir 520/530/550/560
A5810261Settling tank 45L for System Lab 2, mobile, with insertion mechanism for cabinet 800
A5810237Settling tank 45L for System Lab 2, mobile, with insertion mechanism for cabinet 900
A5800496Settling tank 45L for System Lab, mobile, without folding wheels
