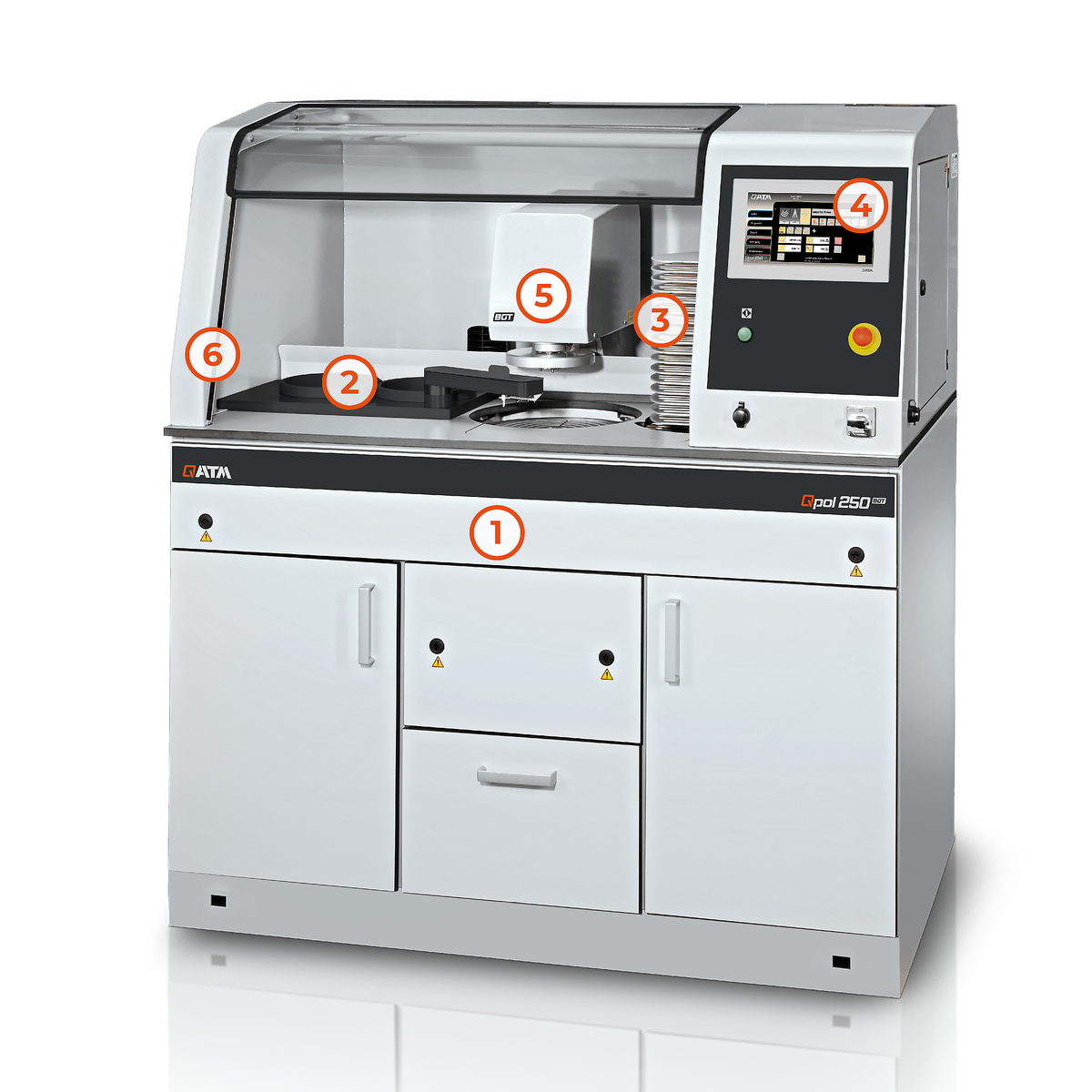

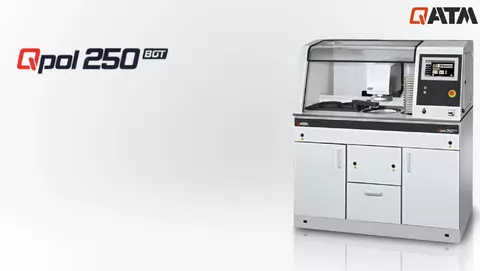

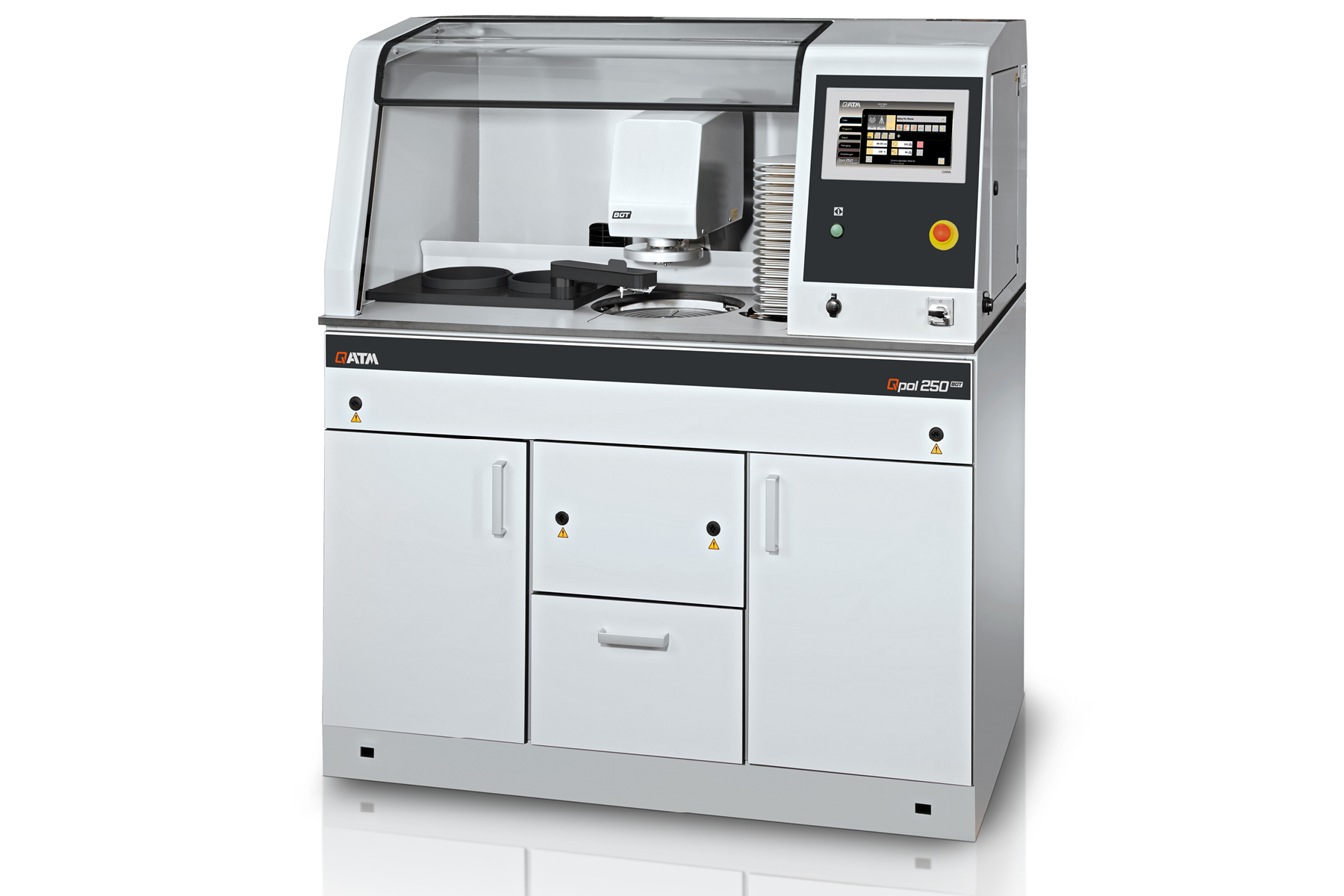

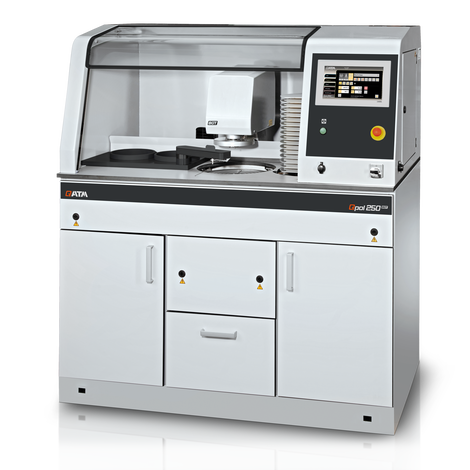

The compact fully automatic grinding and polishing robot Qpol 250 BOT combines the complete grinding and polishing process, including ultrasonic cleaning in one machine. 16x disc changer, 6x dosing unit and an integrable sedimentation tank fits perfectly into the System lab.
Intuitive user interface via touch screen and a user friendly fixation system for central force sample holder enable preparation results in shortest time. All parameters can be adjusted during the automatic process.
The benefits of automation with the Qpol 250 BOT:

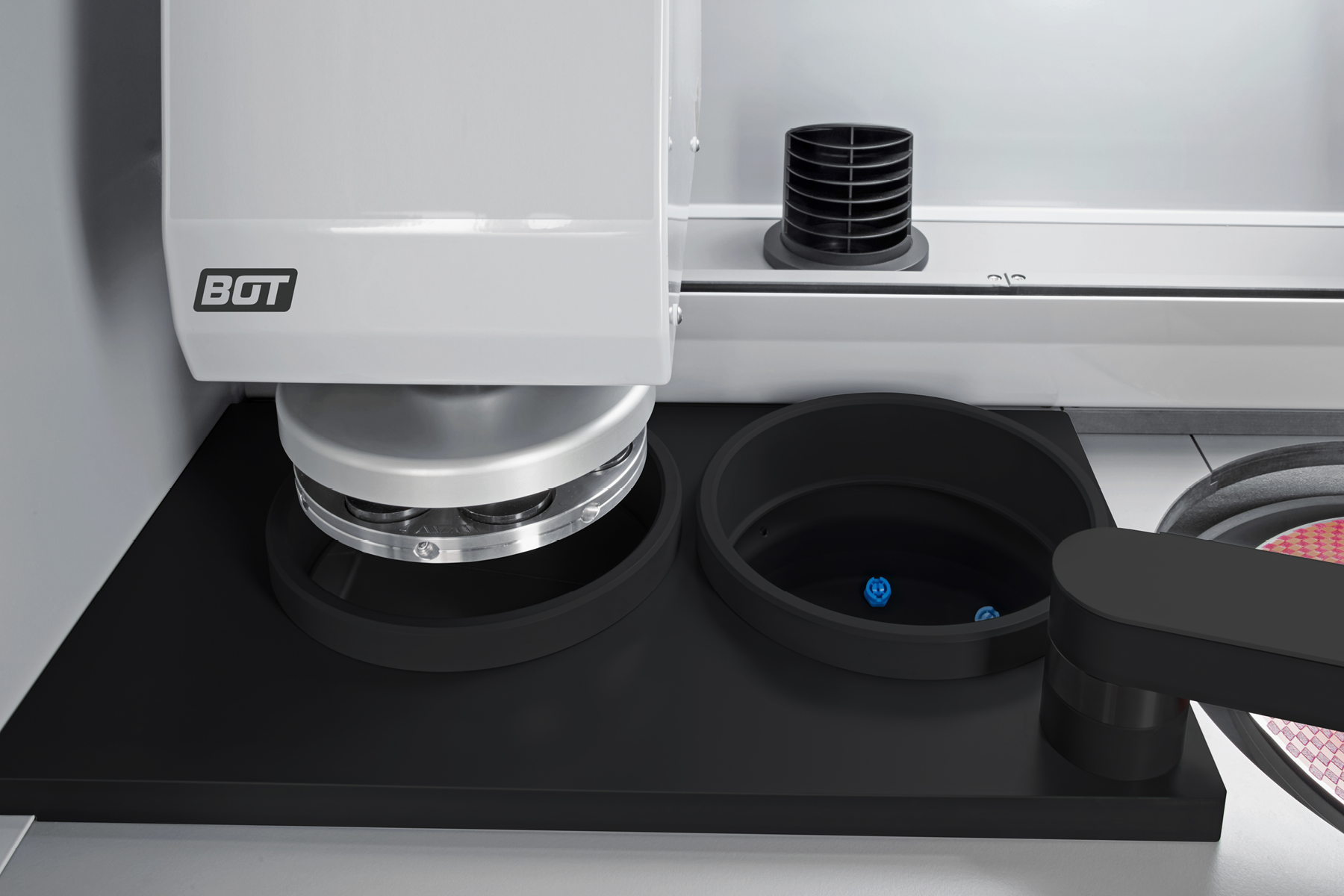

The cleaning station enables a fully automatic multi-step cleaning of the sample with water, air and alcohol. Cleaning times and steps are completely adjustable as needed. The ultrasonic cleaning station provides intermediate or final cleaning.

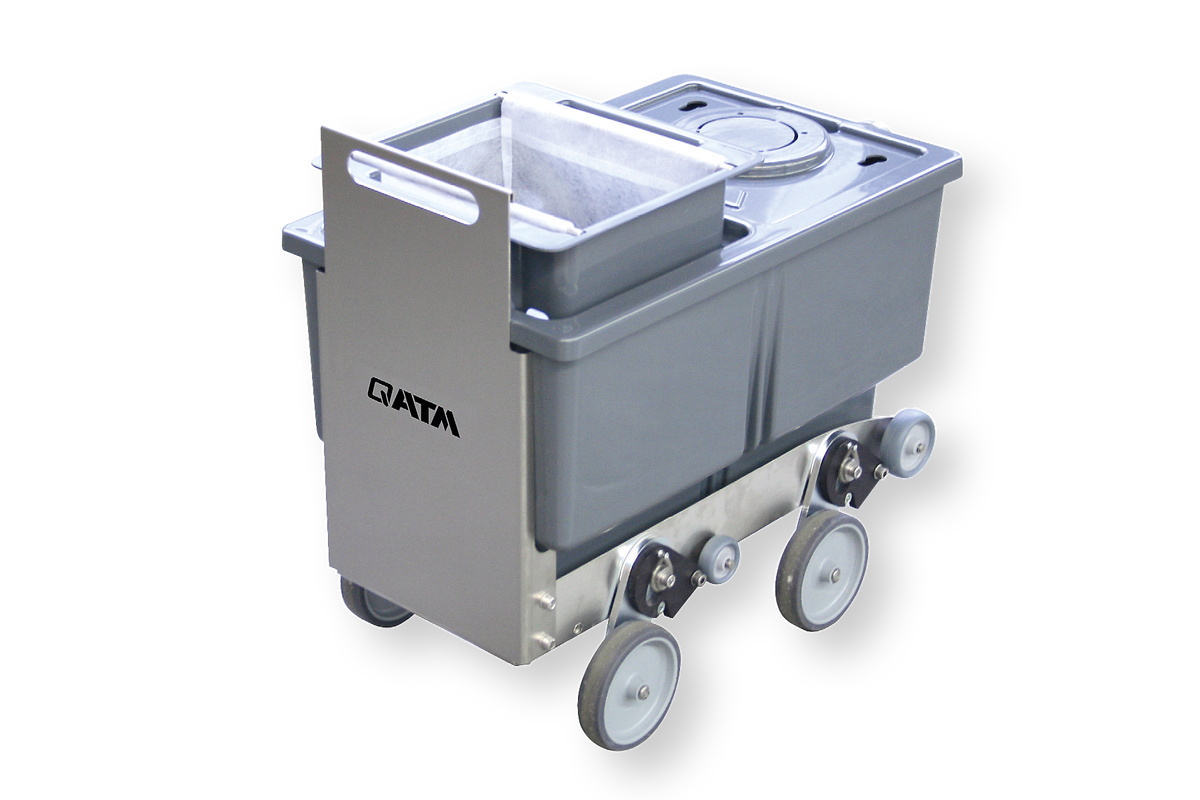

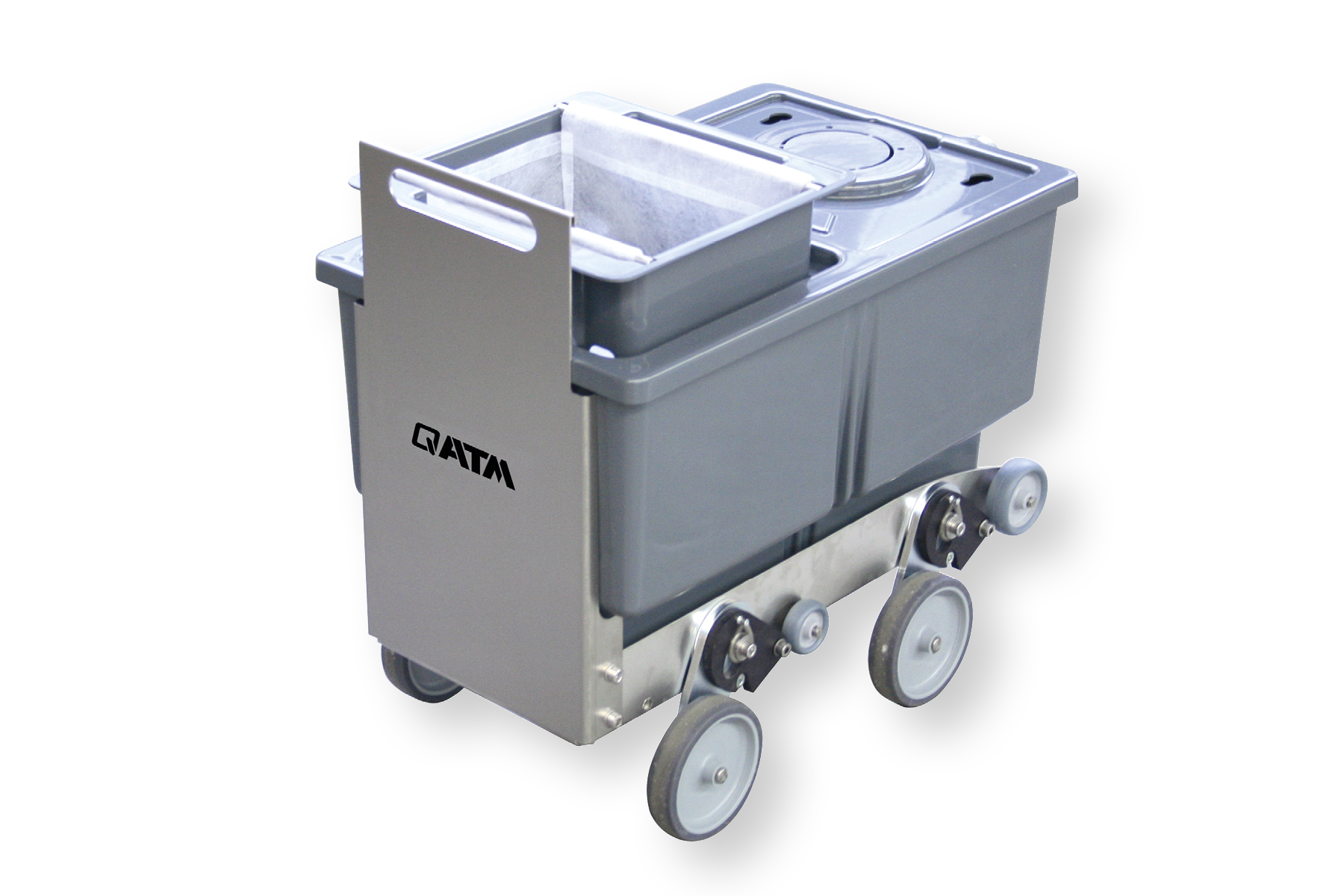

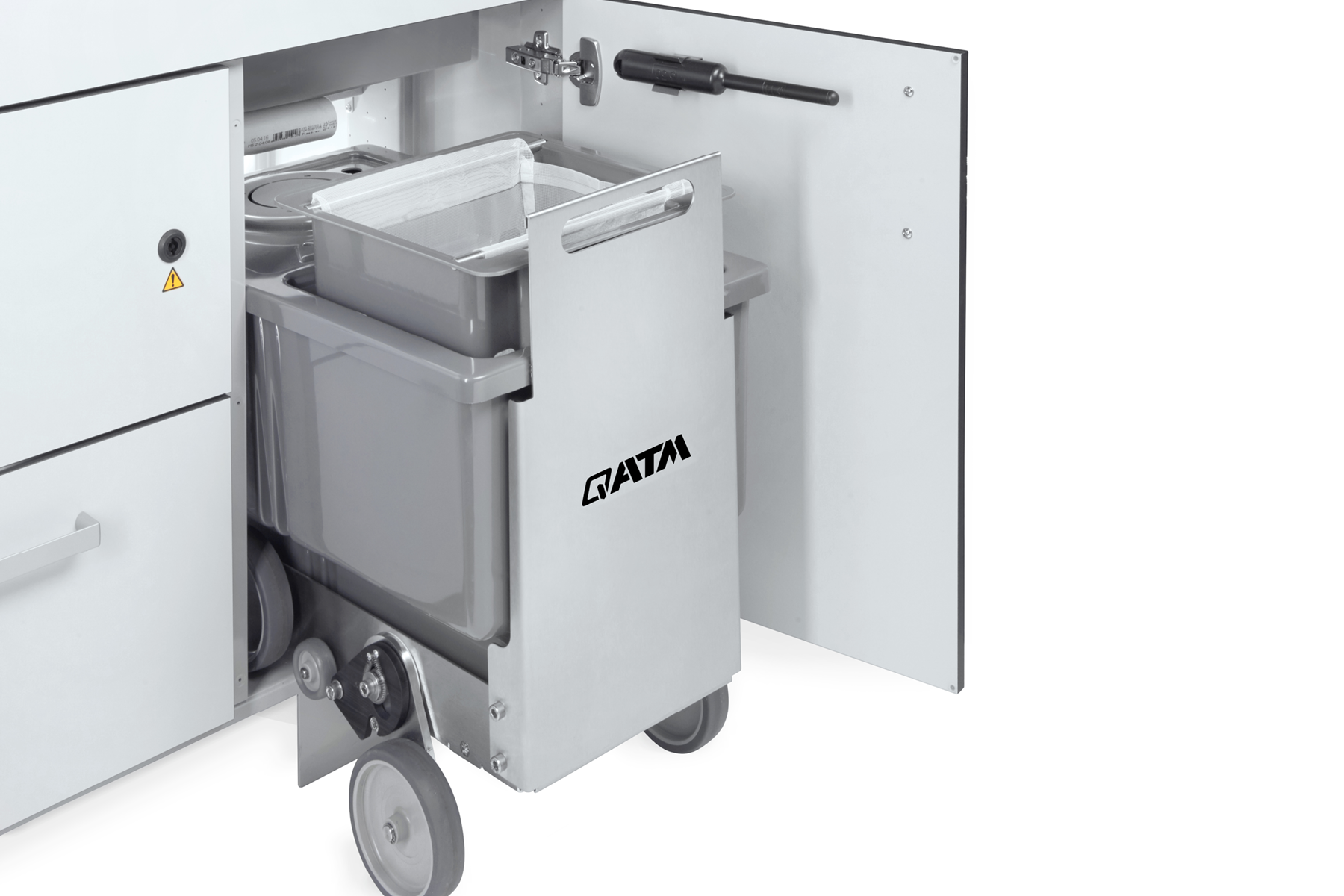

The insertible settling tank is invisibly integrated into the cabinet with all its connections (option).

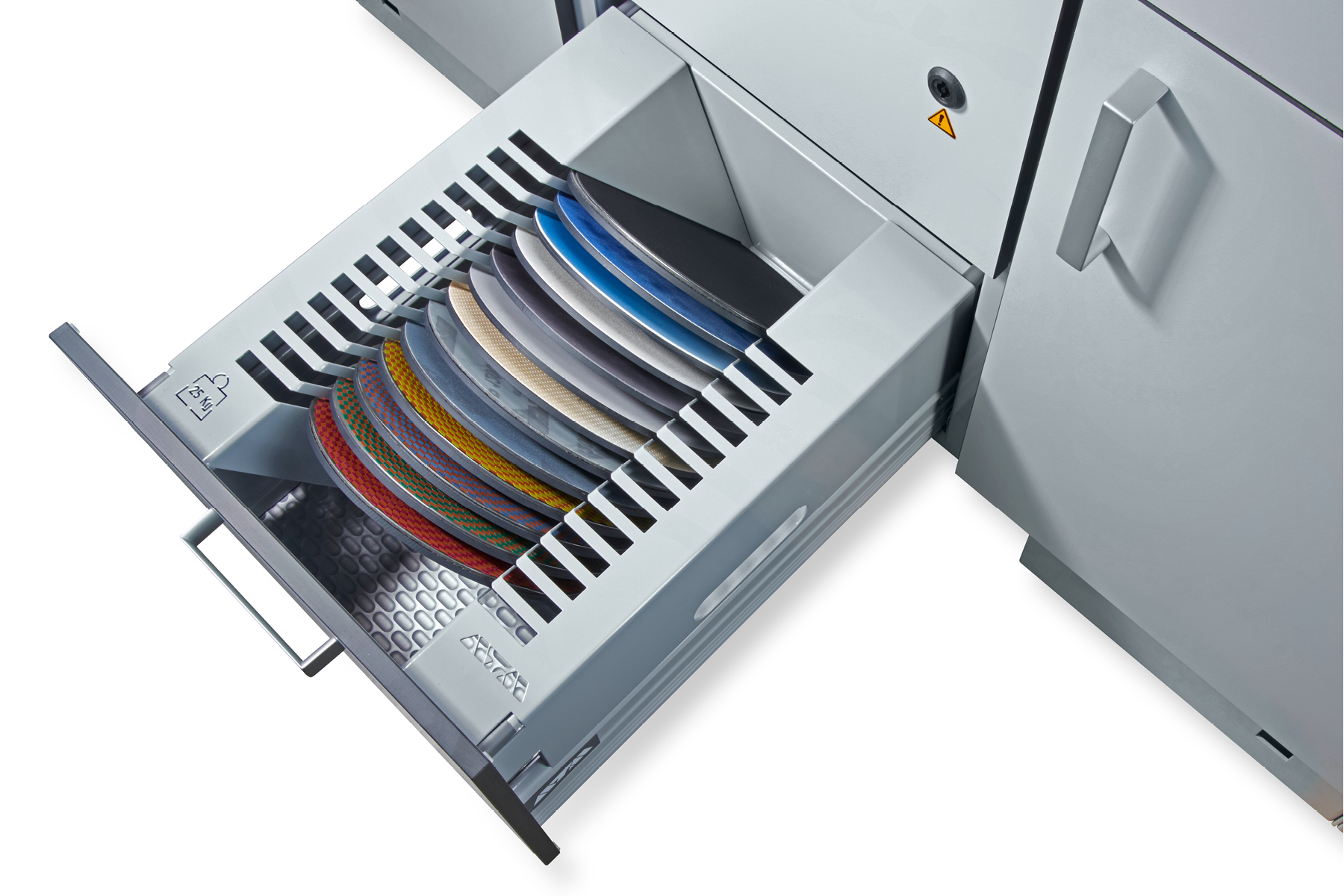

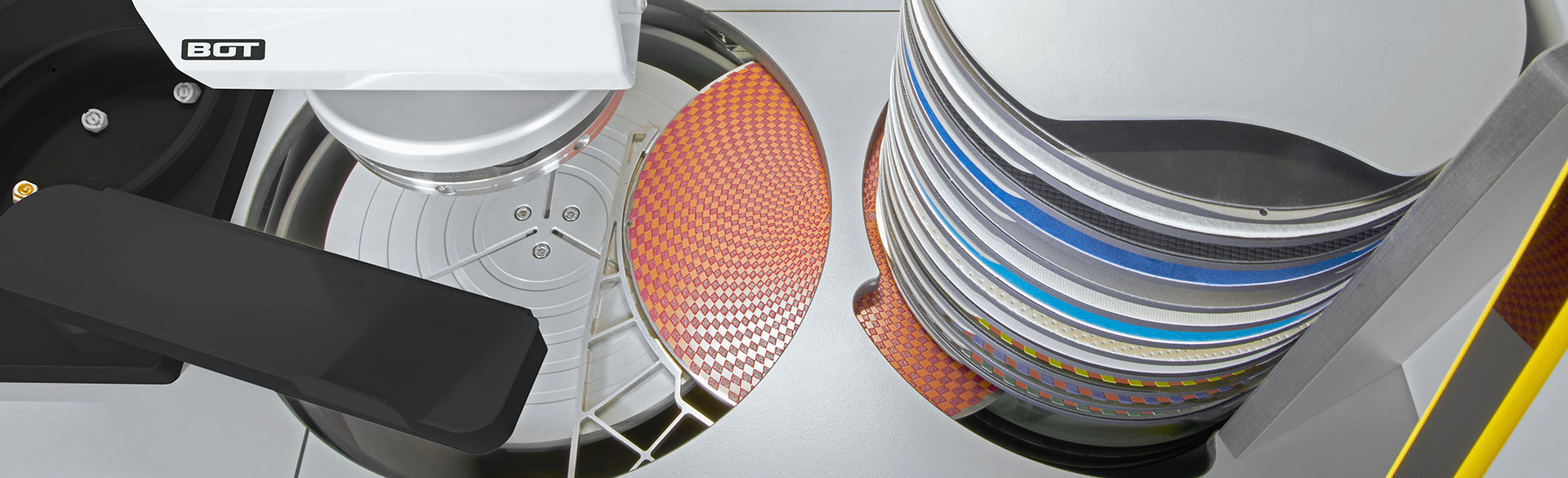

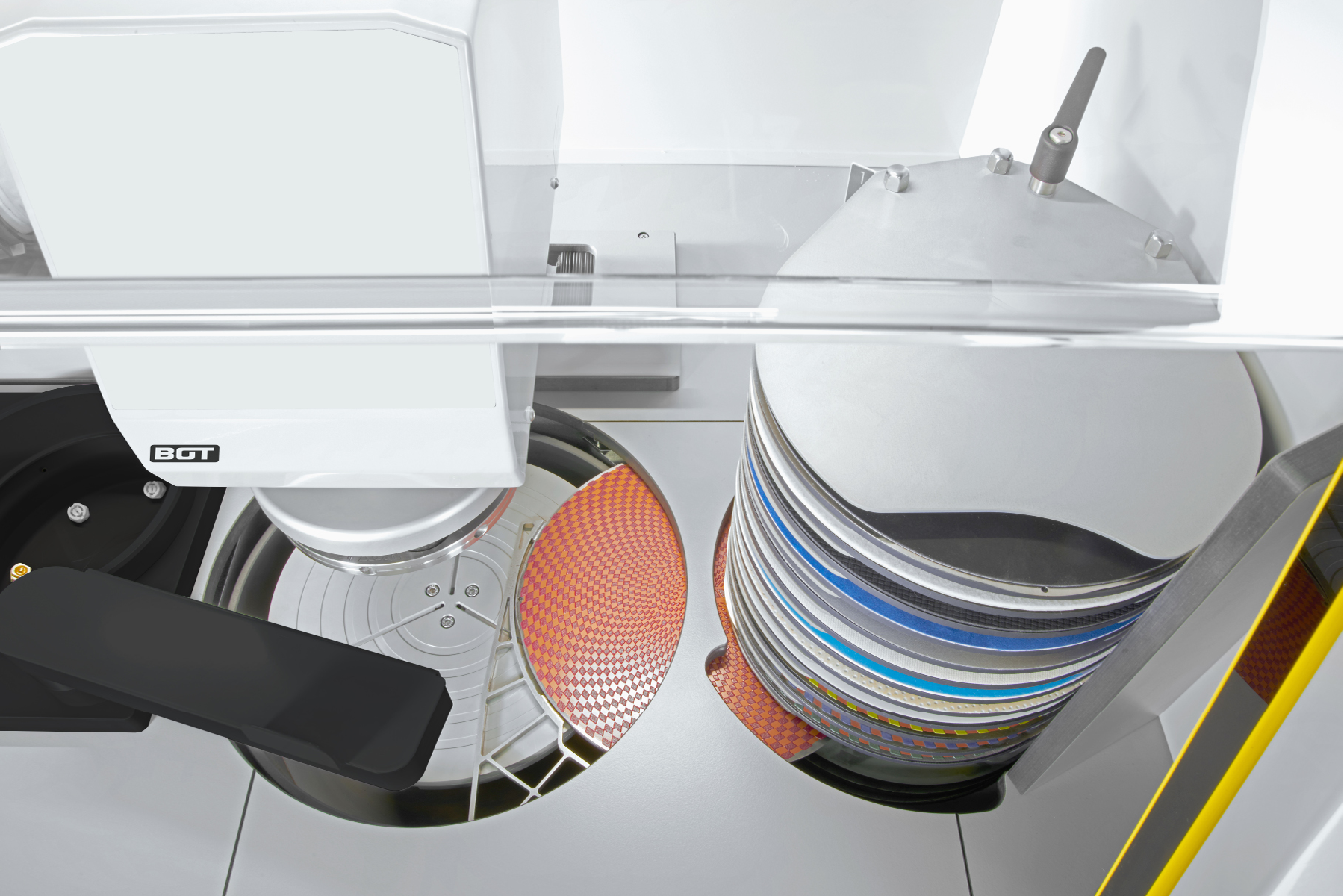

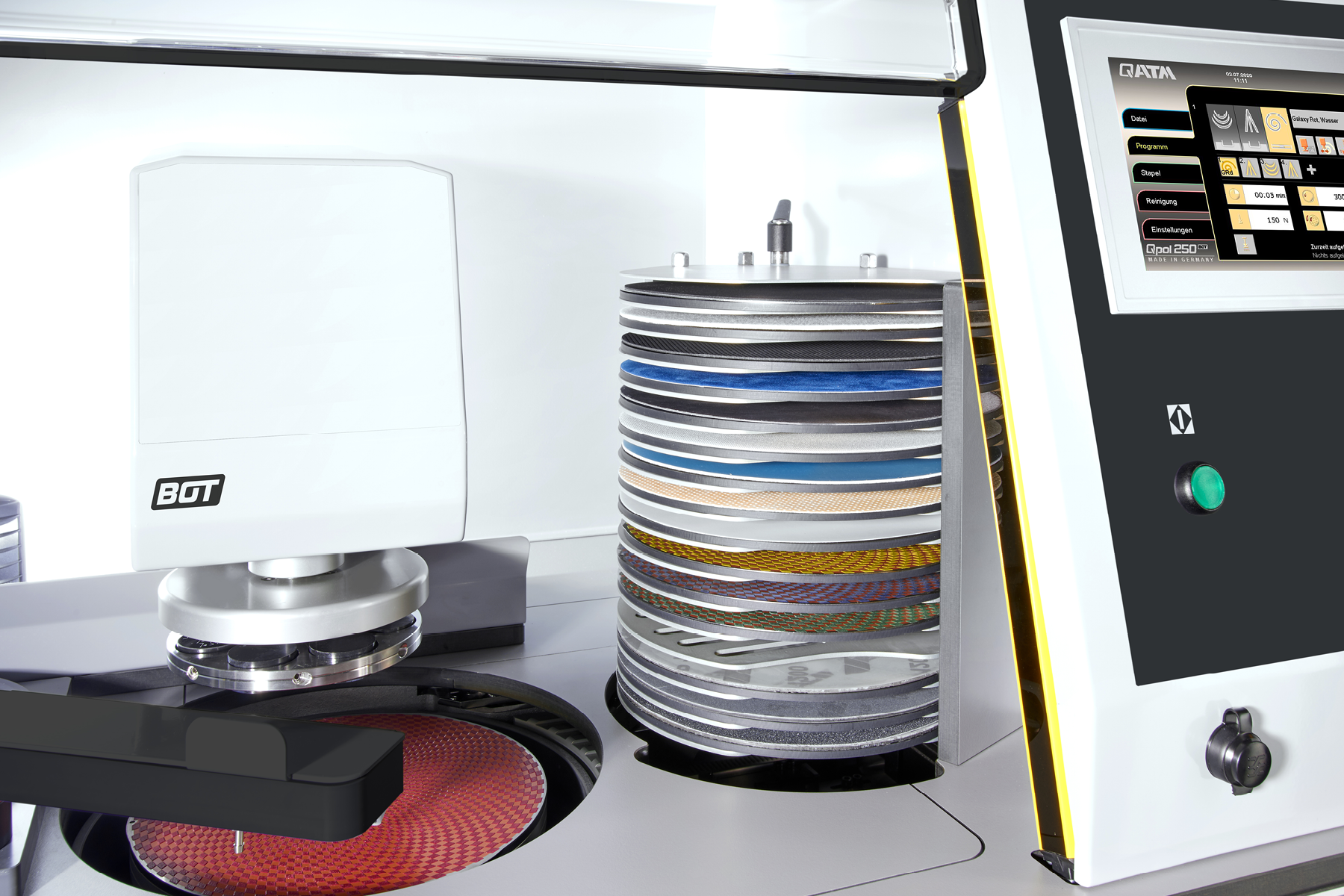

The storage elevator contains up to 16 different grinding discs, such as SiC paper or Galaxy discs. During cleaning the sample, the foil changer replaces the grinding media and fixes it with the Vacu- Jet system automatically.

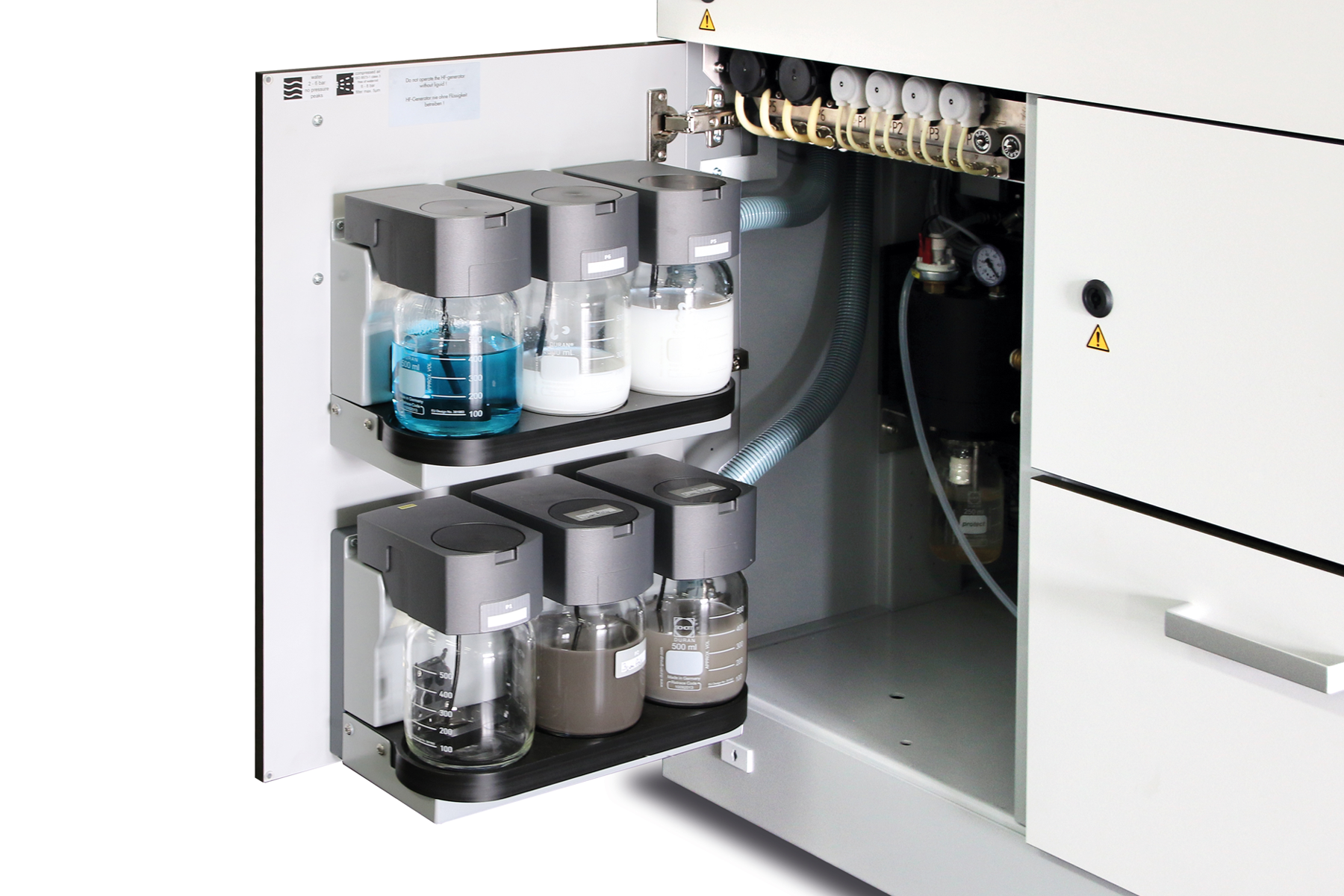

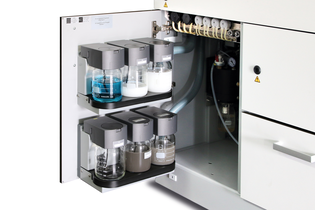

Dosing and bottles depot are easily accessible and clearly arranged in the cabinet. Optional level monitoring and magnetic stirrer.

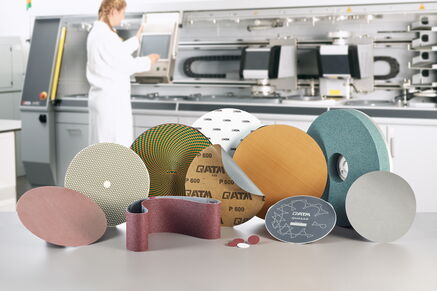

Grinding and polishing is more reliable, safe and efficient when processed with the right ingredients: knowledge, care and the right choice of consumables and instruments.
| 工作盘 | ø 250 mm |
| 运行功率 | 1.1 kW S3/40% |
| Sample holder-Ø | 160 mm |
| 研磨控制头运行功率 | 0,17 kW S1 |
| 转速（研磨控制头部分） | 30 - 150 rpm |
| 转速（磨抛机） | 50 - 600 rpm |
| 磨削量控制（精度） | 0.1 mm |
| 水压 | 1x 上水 R½" max. 6 bar |
| 出水口 | 1x 下水 DN50 |
| 压缩空气 | 6 bar. 耦合连接器 NG8 |

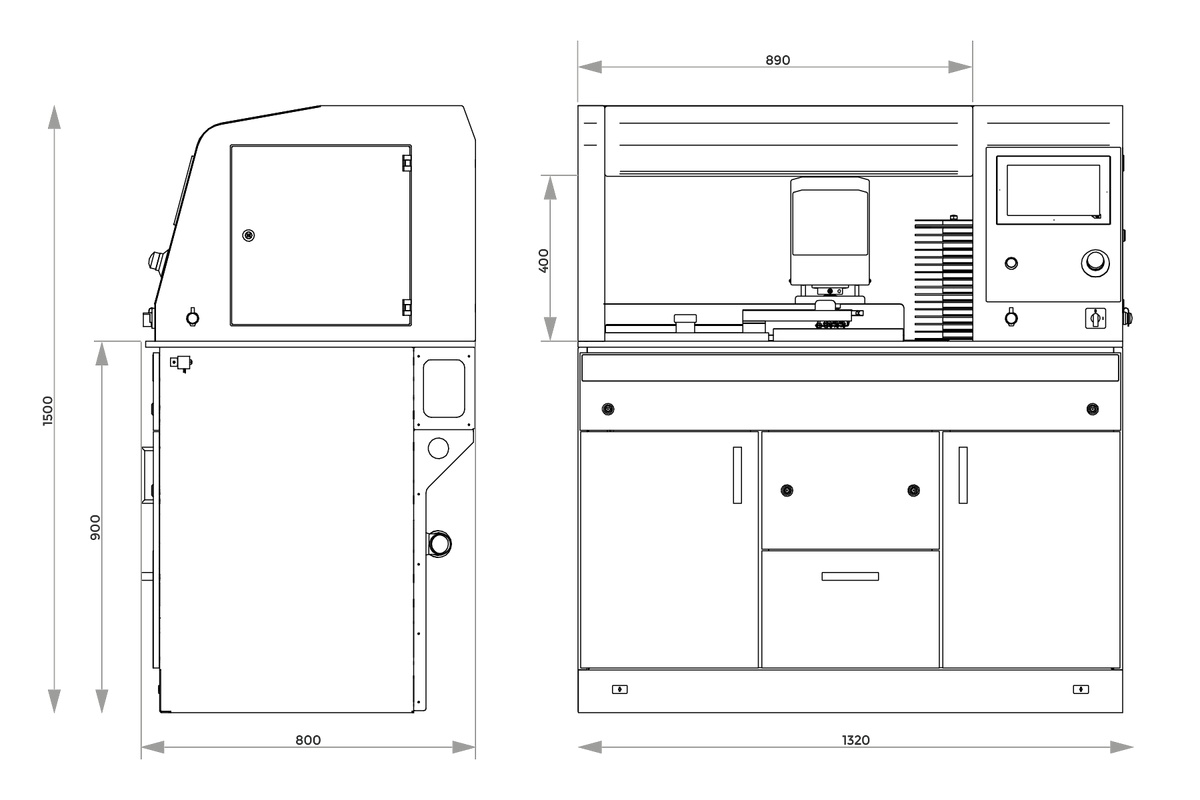

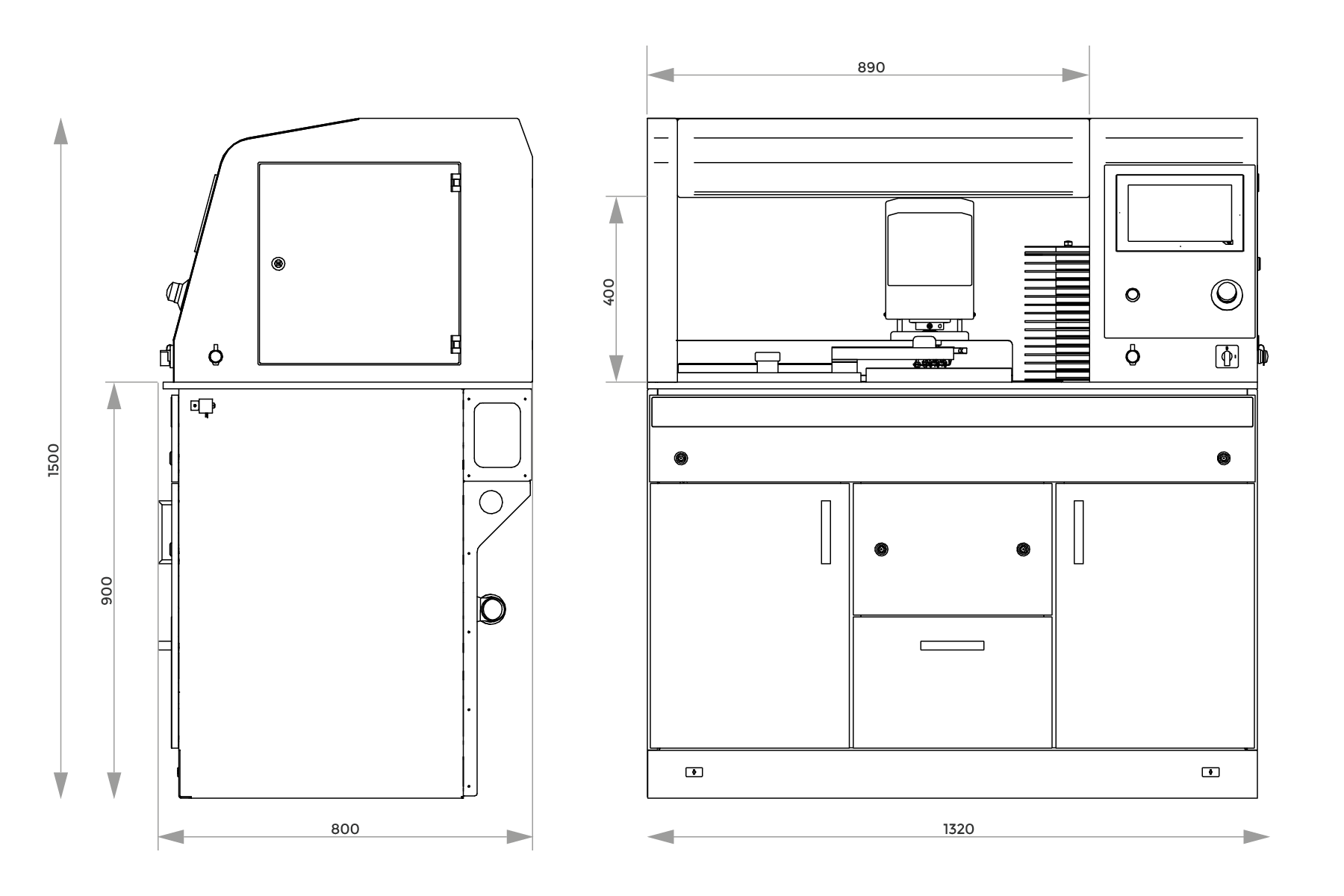

| 宽 x 高 x 深 | 1320 x 1500 x 800 mm |
保留技术变更和出错的权利
