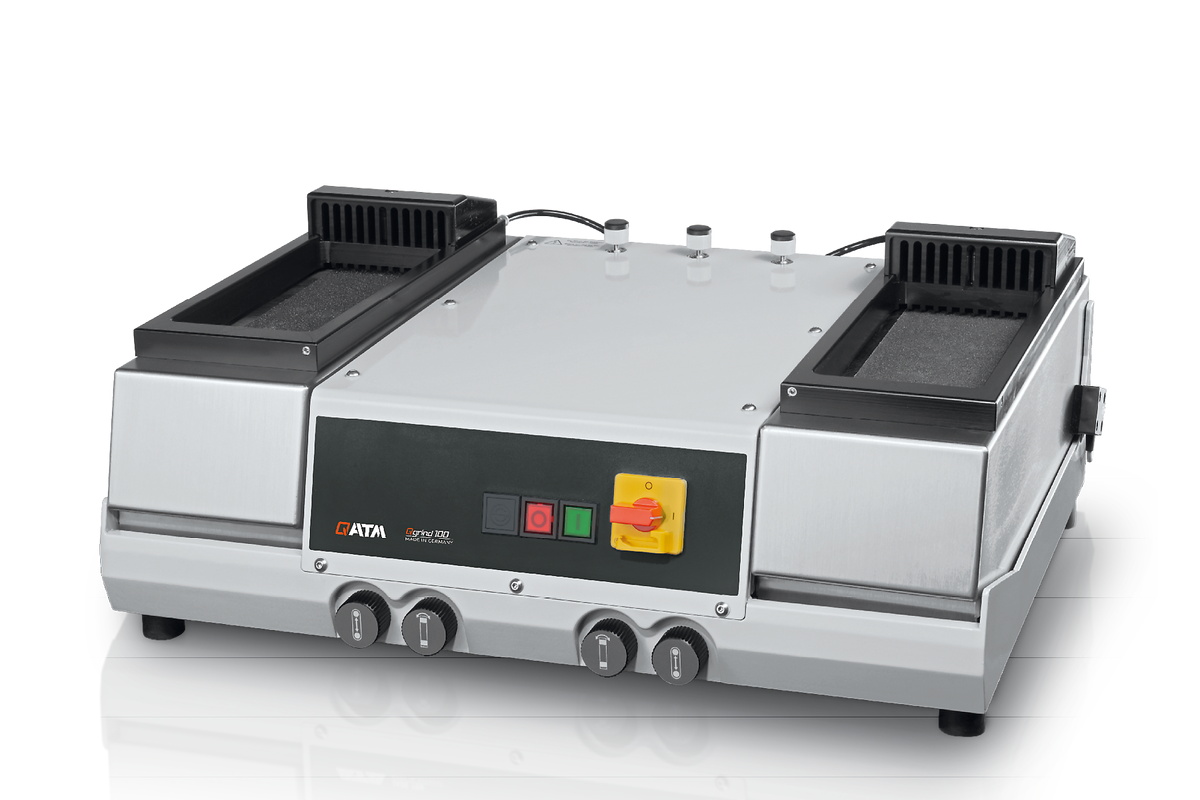

砂带预磨机 Qgrind 100

Qgrind 100是一款稳定的湿式双砂带预磨机，主要用于打磨毛刺或预磨样品或其他材料。

可同时使用两种不同粒度的砂带。产生的废屑由供水系统排出。

性能指标

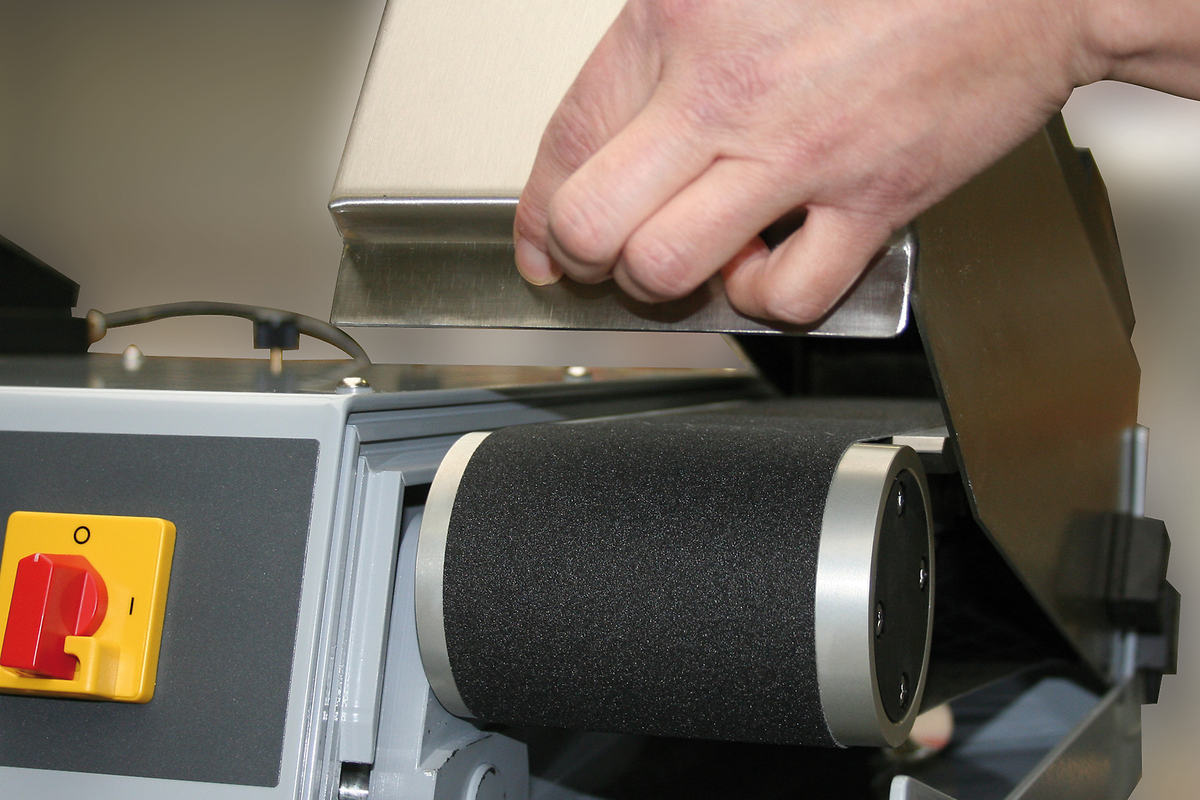

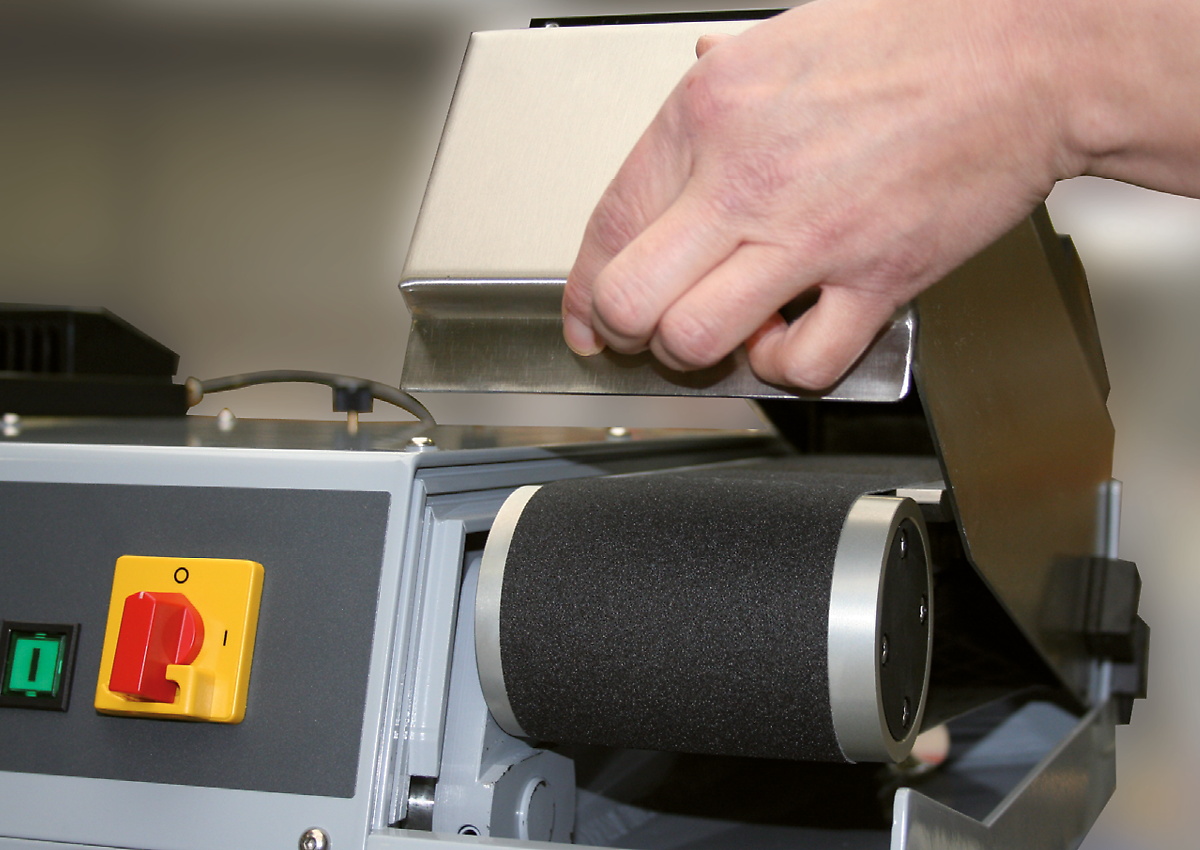

Easy belt exchange

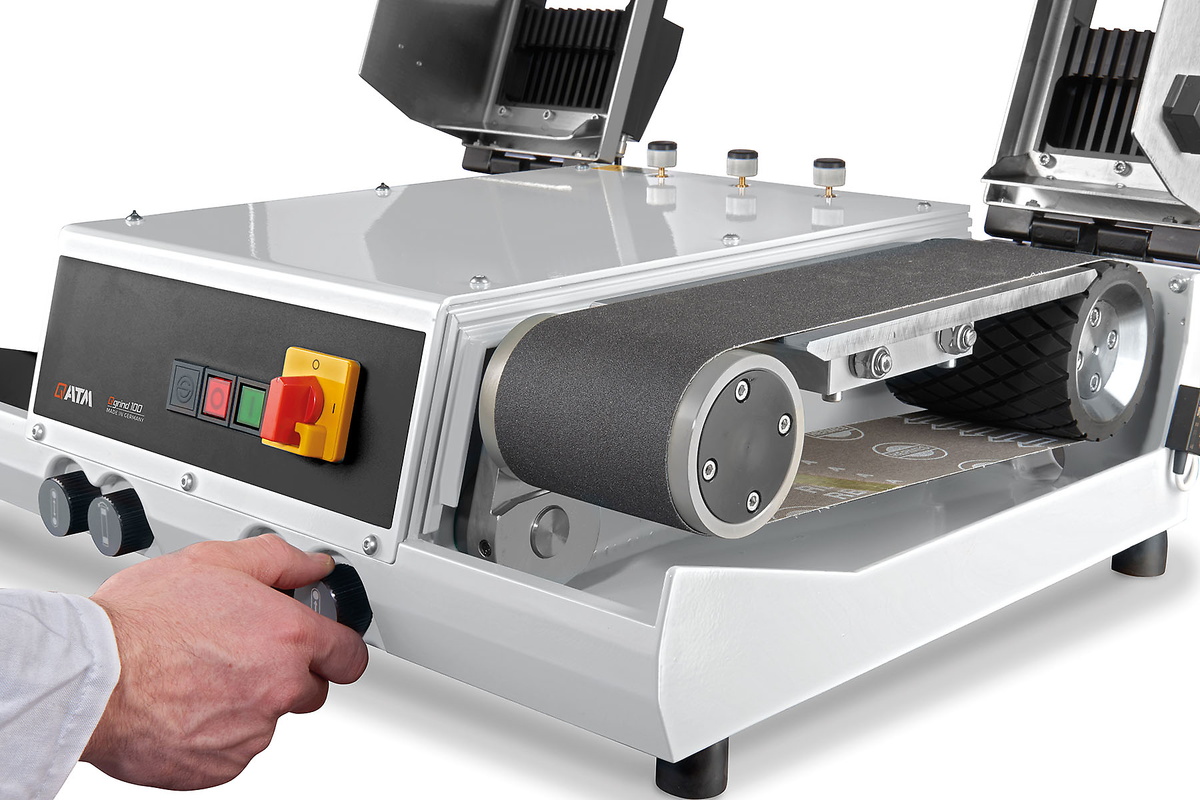

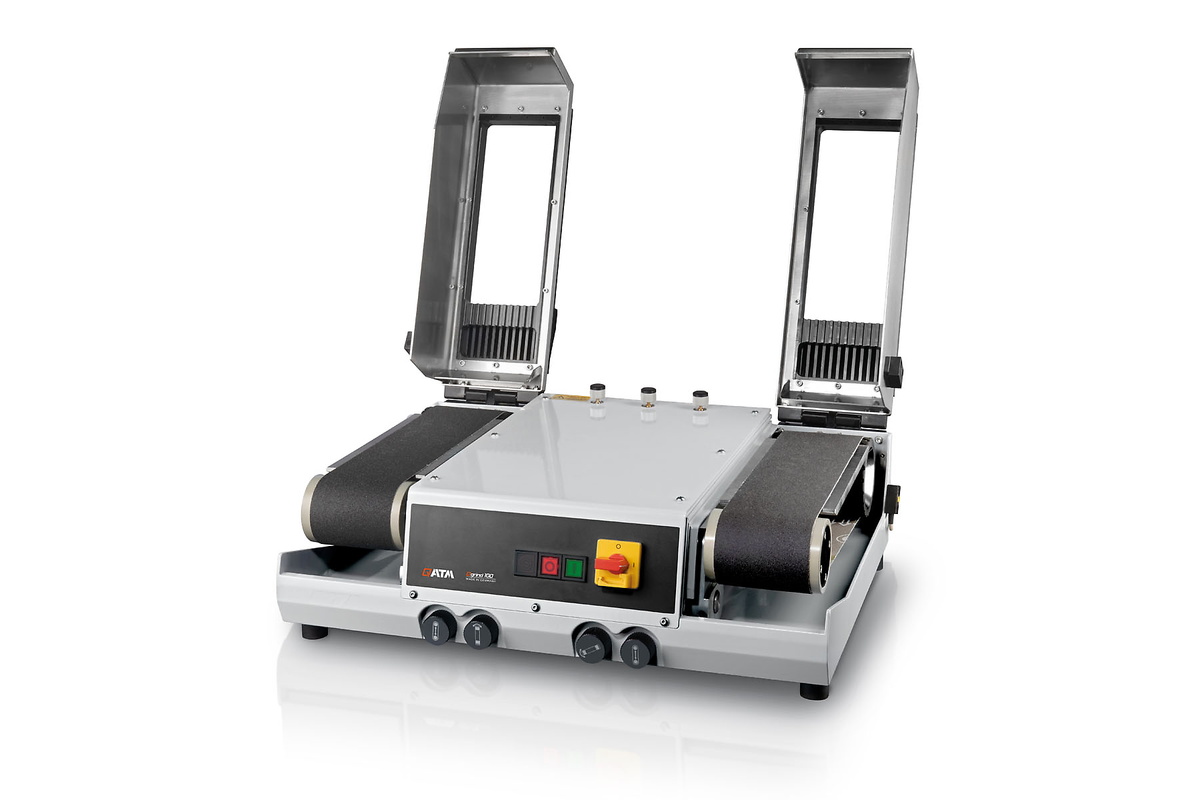

Both shroud covers are made of stainless steel and are simply opened backwards. This allows free access to the individual belts. Rotate the front tension wheel to loosen the belt which can then be removed from the side. Similarly, by rotating the adjustment wheel, the new belt can be centred onto the middle of the working surface.

Water-cooling

A water film is created over the whole width of the front end of the belt. Waste material generated is carried to the back with the water and both are drained-off into the machine. Drain-offs are separated, one to the left, one to the right

Drive

A powerful motor drives both belts at the same time. The rubber coated drive wheels, which are fitted with a special tread, prevent the belt from slipping.
