QATM的布氏硬度计范围包括显微和宏观硬度测试型号。除了布氏硬度测试外,所有型号也都适用于多种测试方法,范围从半自动操作到全自动化。QATM产品的特点是操作舒适、精细的工程设计和准确的结果。

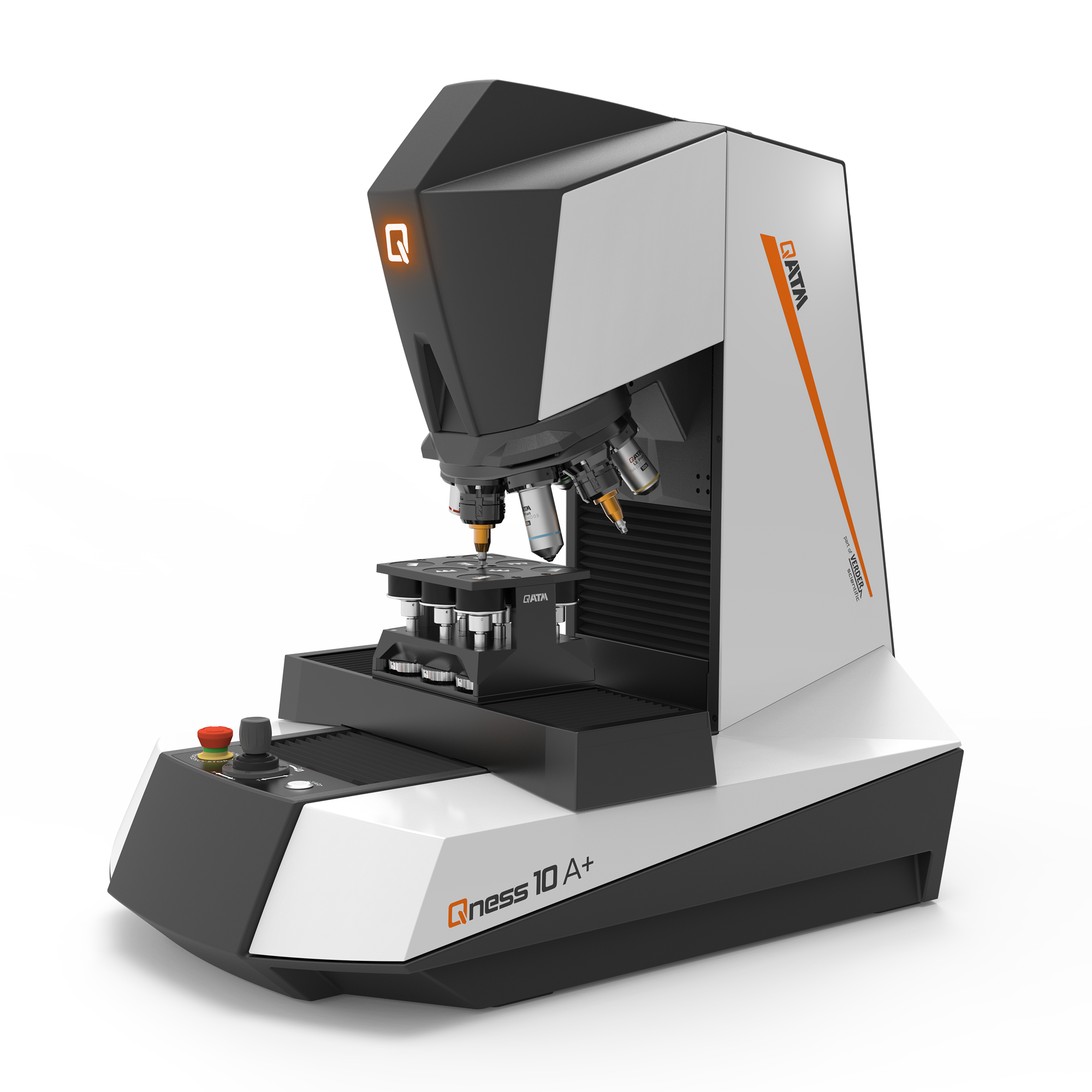

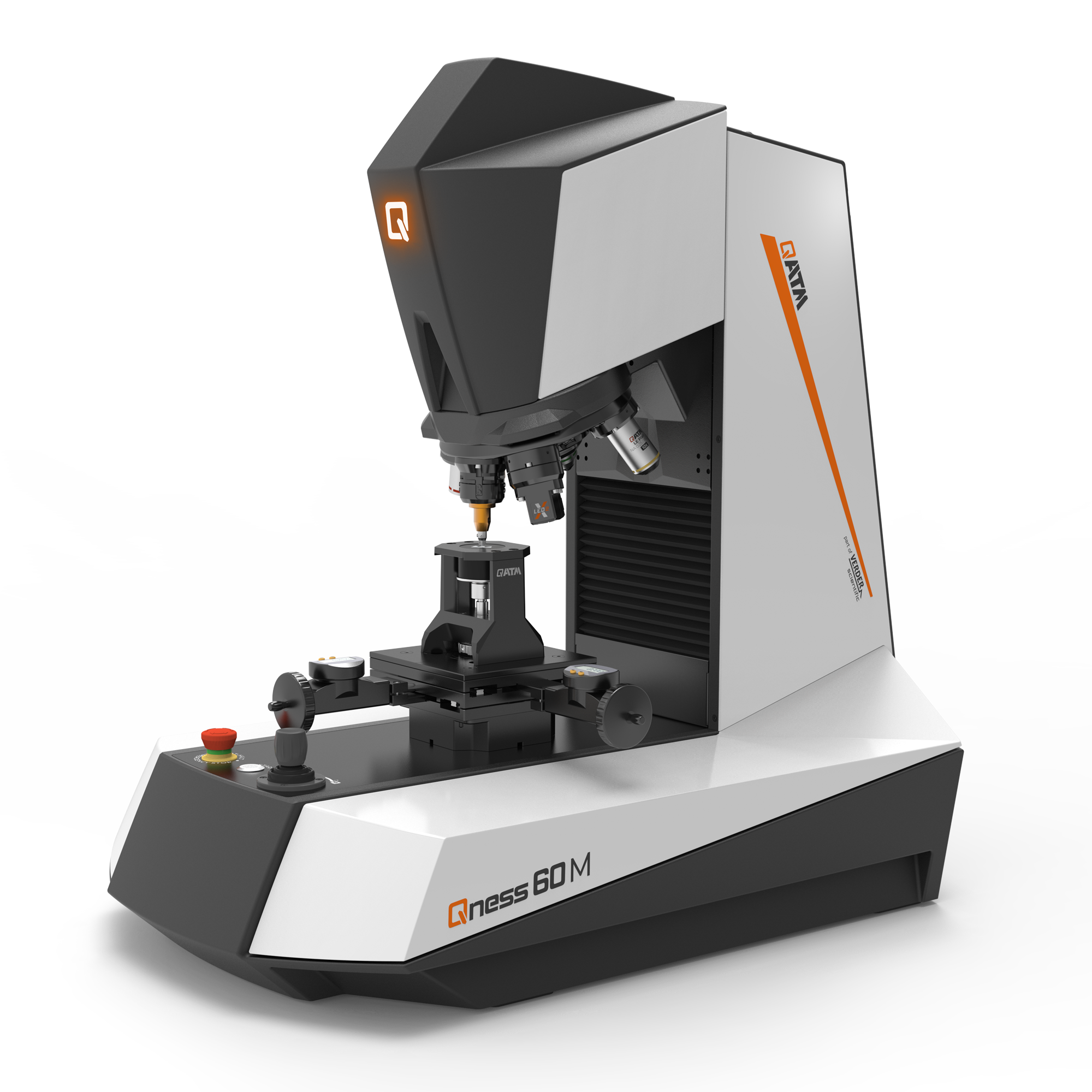

显微布氏硬度计 试验力范围: 0.25 g – 62.5 kg

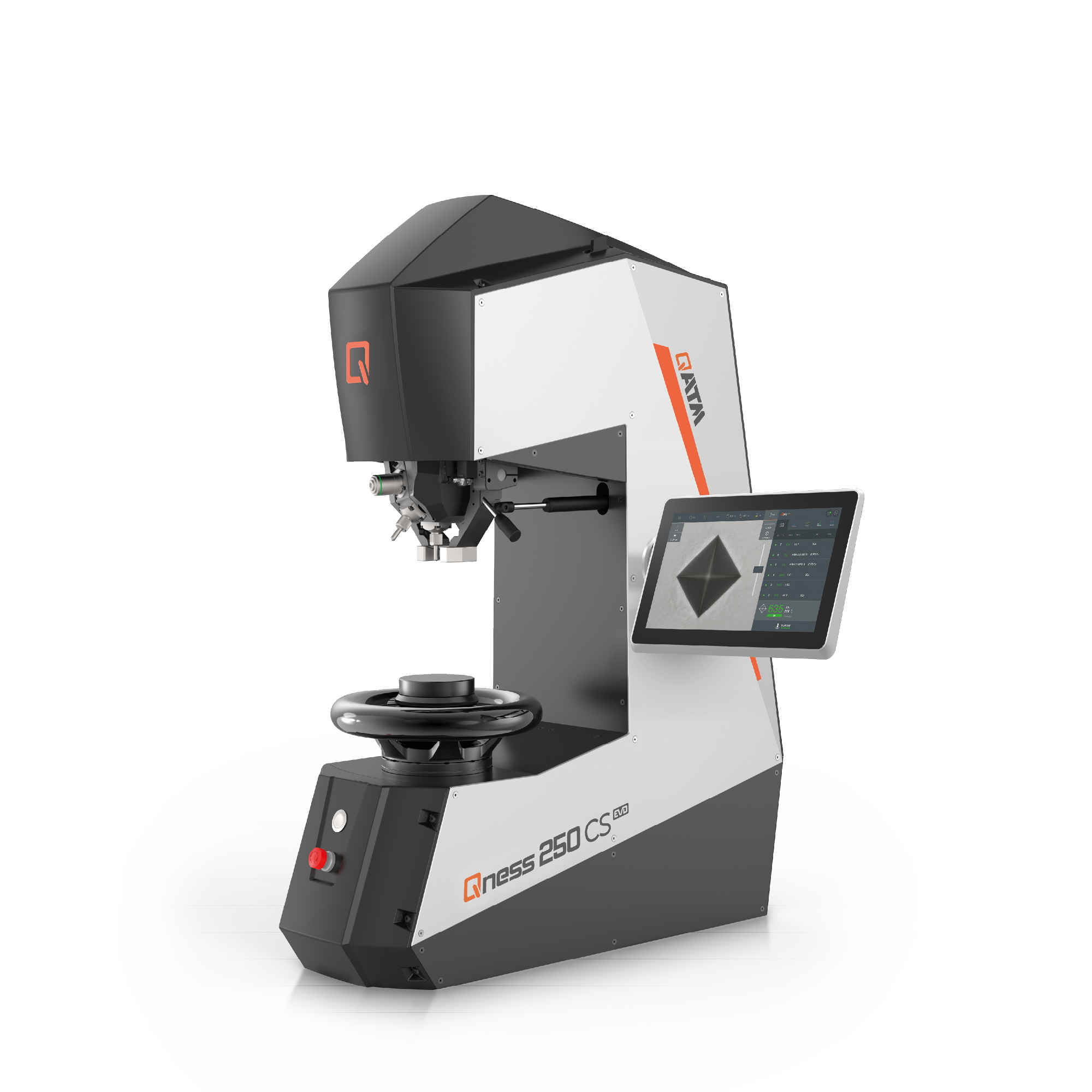

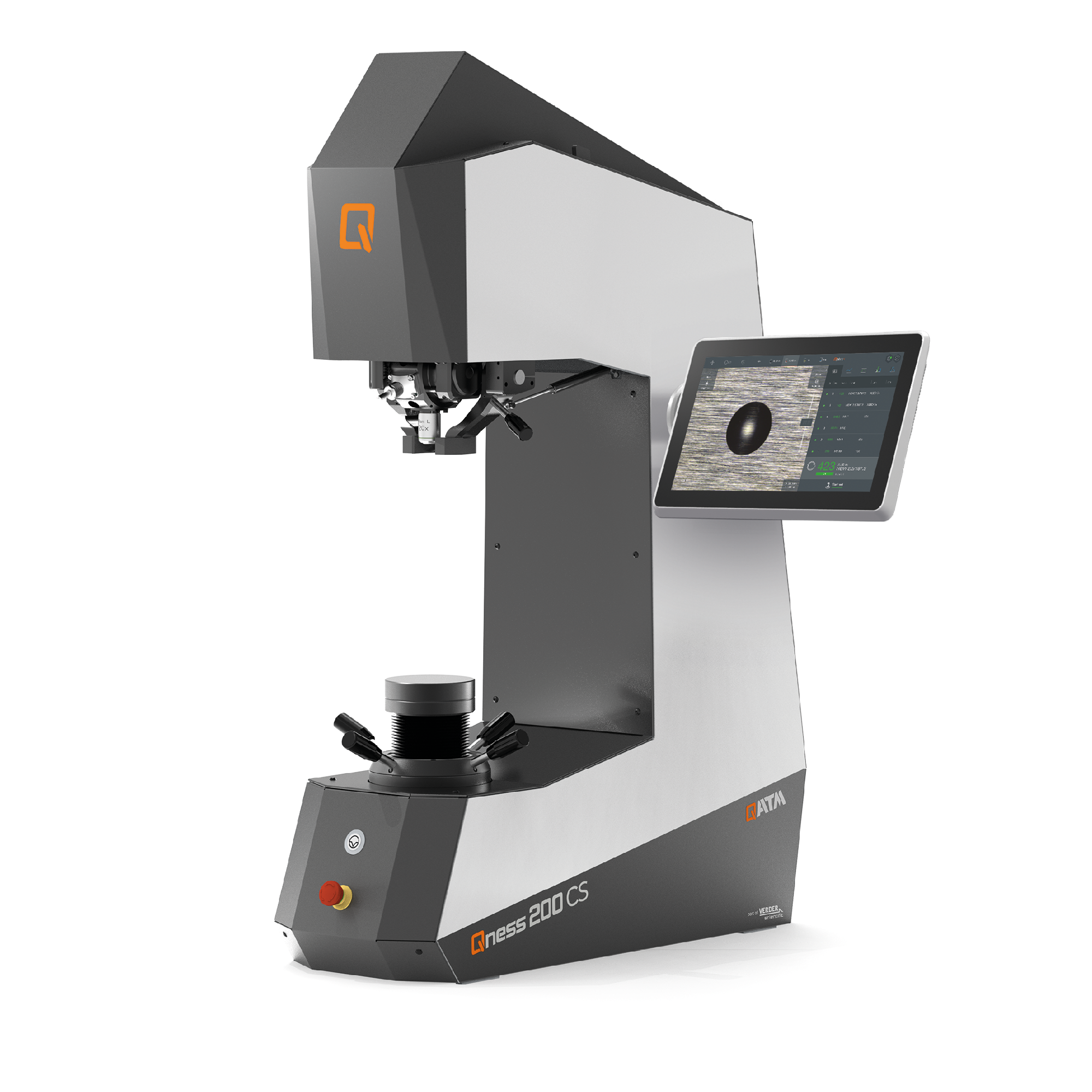

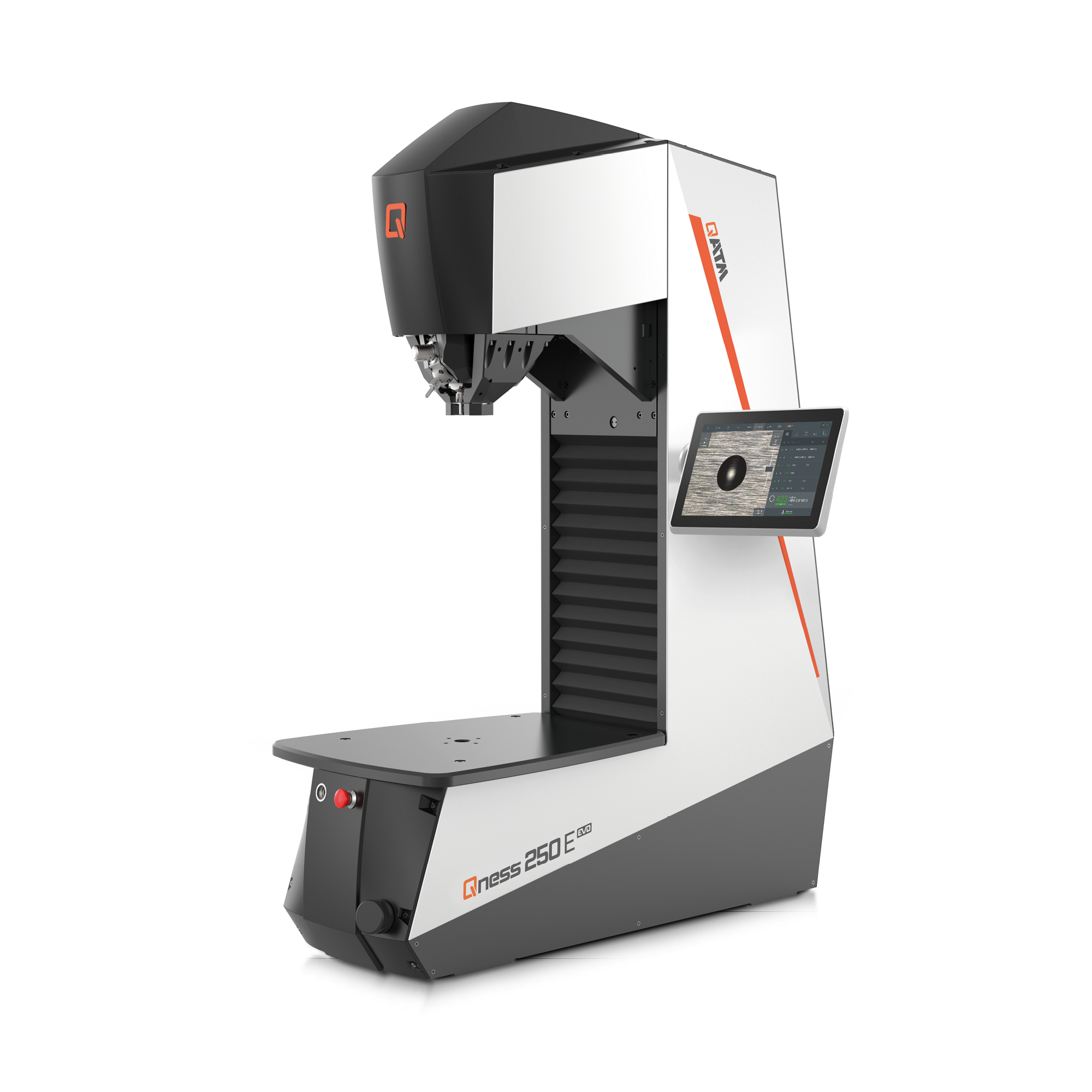

宏观布氏硬度计 试验力范围: 0.3 kg – 3000 kg

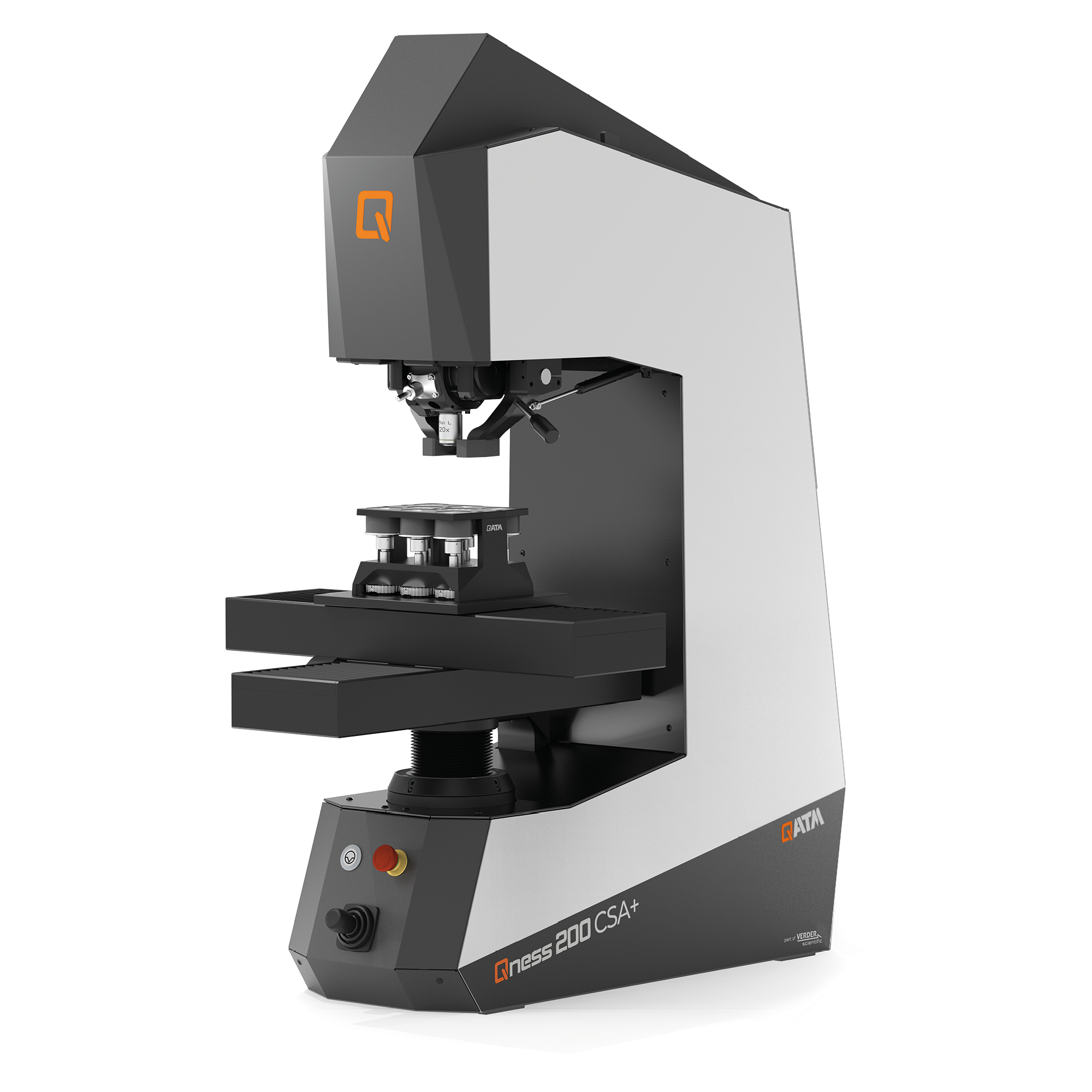

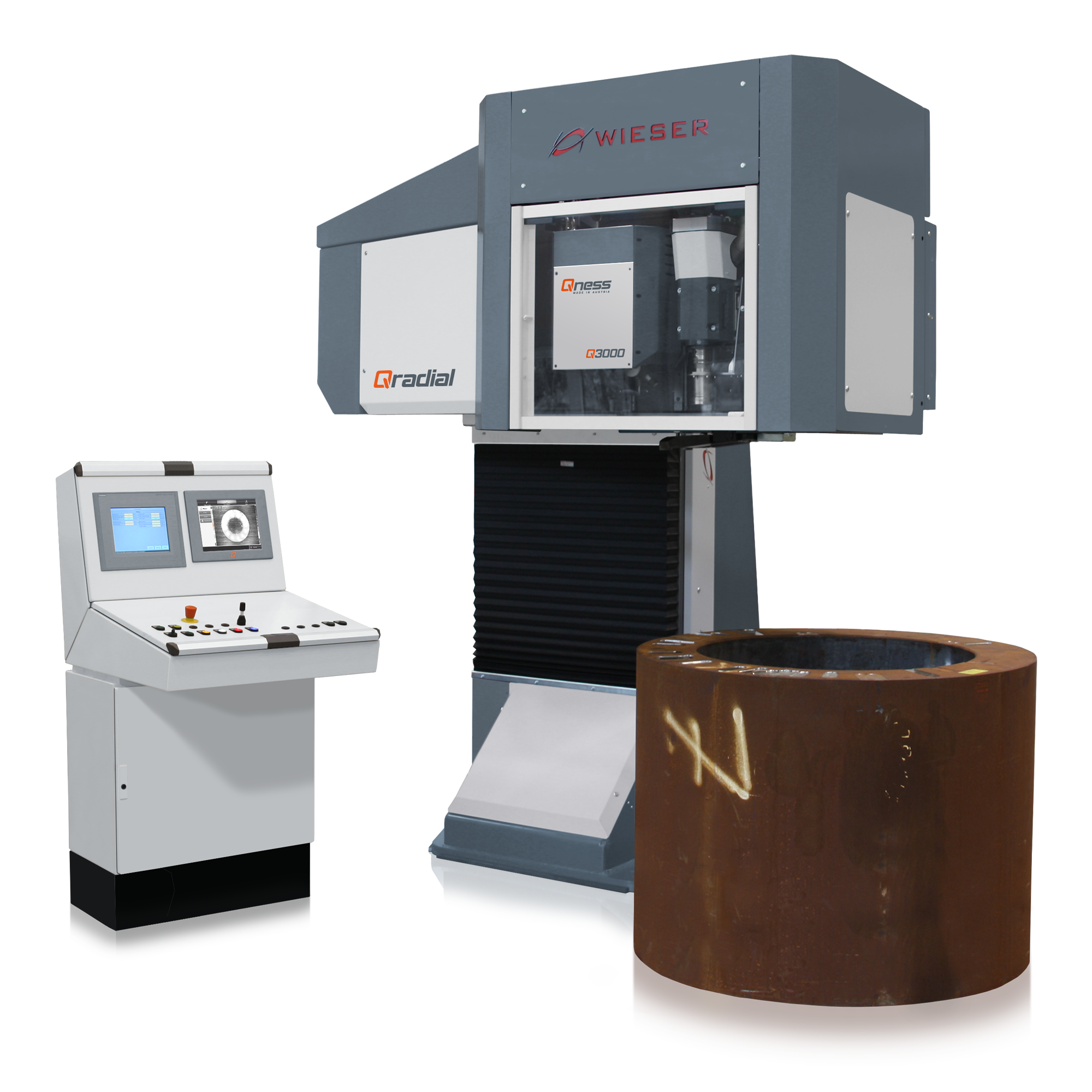

全自动布氏硬度计 试验力范围: 0.3 kg – 3000 kg

.

背景信息 布氏硬度测试 (DIN EN ISO 6506)

Johann August Brinell(瑞典)在1900年巴黎的世界展览上展示了他新的硬度测试方法。 在该方法中,一个碳化物球以一定的力垂直地压入样品的表面。这将在样品表面中形成一个压痕。压痕的直径d是使用测量显微镜确定的,然后计算出布氏硬度值或参考相应的表格。

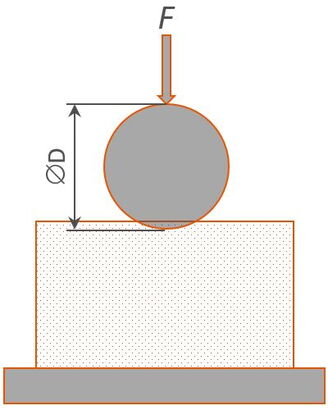

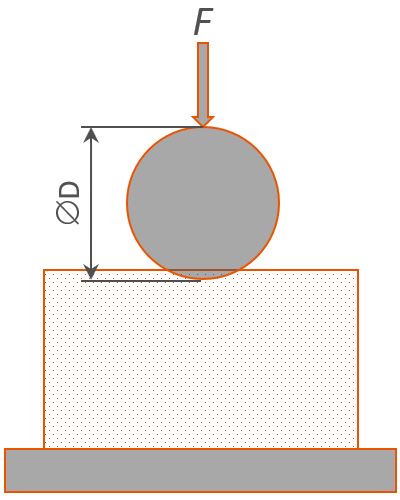

1. 直径为D的硬质金属球的压痕和作用在试样上的测试力F

直径为D的硬质金属球的压痕和作用在试样上的测试力F

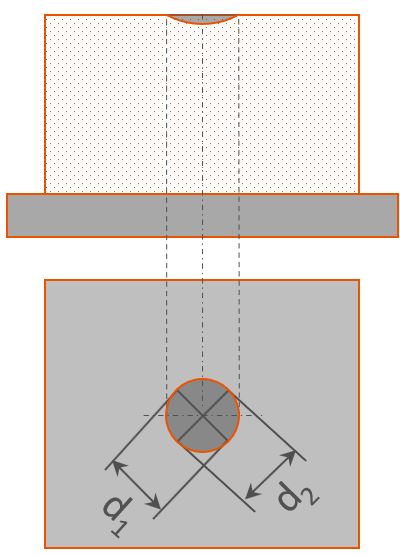

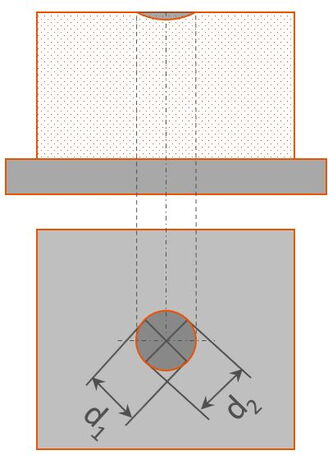

2. 测量压痕的对角线长度d

测量压痕的对角线长度d

布氏硬度的计算

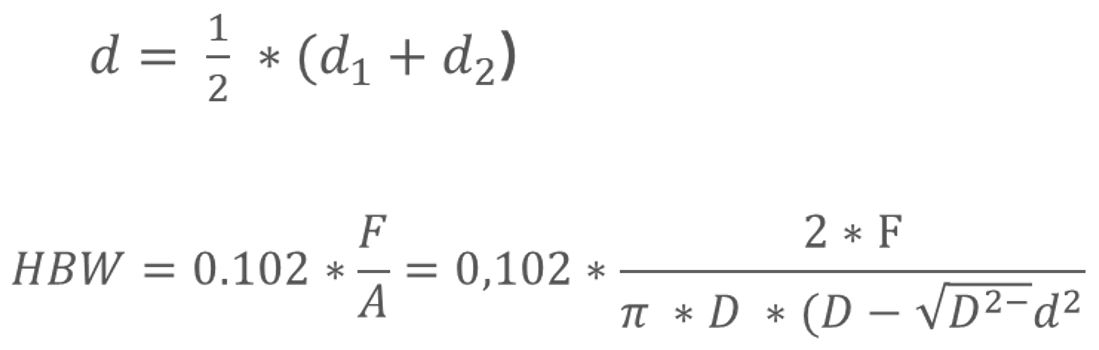

布氏硬度的计算公式:

布氏硬度的计算


对于布氏硬度测试, 适宜的测试参数的选择起着决定性的作用。
对于非常小或非常大的压入深度,布氏测试方法会变得不精确。出于这个原因, 必须选择测试力以满足下面的平均压痕直径条件:

0,24 * D < d <0,6 * D

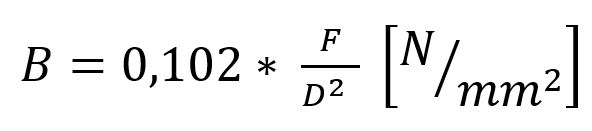

为满足这些条件, 引入了“应力水平 B”。这取决于要测试的材料分类。

布氏硬度的计算


应力水平根据下面的表格来选择:

布氏硬度计的应力水平B



材料

Stress level B [N/mm²]

球径D [mm]

测试力F [N]

Recordable Hardness Range [HBW]

钢和铸钢

镍和钛合金

铸铁 ≥ 140 HBW

铜及铜合金 ≥ 200 HBW

30

1
2,5
5
10

2,94,2
1839
7355
29420

95 – 650

轻金属及其合金 ≥ 35 HBW



15

1
2,5
5
10

-
-
-
14710

48 – 327

Cast iron < 140 HBW

Cu and Cu alloys

350-200 HBW



10

1
2,5
5
10

98,07
612,9
2452
9807

 32 – 218

铜及铜合金 < 35 HBW

轻金属及其合金

≥ 35 < HBW <  80

5

1
2,5
5
10

49,03
306,5
1226
4903

16 – 109

轻金属及其合金 ≥ 35 HBW

2,5

1
2,5
5
10

24,52
153,2
612,9
2452

8 – 55

铅和锡

1

1
2,5
5
10

9,807
61,29
245,2
98,7

3 – 22

根据标准DIN EN ISO 6506
只有 >1 mm直径的球可以用来测试铸铁

确定应力程度后,可根据表格确定测试力F和球直径D。原则上,球的直径应尽可能大,以便覆盖尽可能大的区域从而尽可能代表样品表面的一部分。
在相同载荷程度下,不同球直径确定的硬度值只能在有限程度内进行比较。用相同的球直径但不同的载荷程度确定的硬度值没有可比性。因此,在给出硬度值时,必须始终给出所有参数。

布氏硬度测试结果

根据标准DIN EN IS 6506-1,布氏硬度测试的结果按下面形式表示 :

310 HBW 2,5 / 187,2 / 20   ⇒   布氏硬度值

310 HBW 2,5 / 187,2 / 20   ⇒   布氏硬度缩写

310 HBW 2,5 / 187,2 / 20   ⇒   球直径,单位mm

310 HBW 2,5 / 187,2 / 20   ⇒   测试力 [N] = 9.807 * 测试力规格

310 HBW 2,5 / 187,2 / 20   ⇒

Application time of the test force
(omitted if it is between 1-15 s)

布氏硬度测试的进一步先决条件

为符合硬度测试标准,需满足更多的先决条件:

布氏硬度测试的进一步先决条件

测试温度

  • 正常要求: 10°C bis 35°C
  • 各种高要求: 23°C ± 5°C

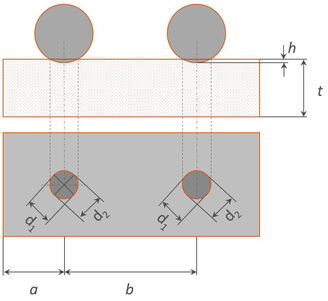

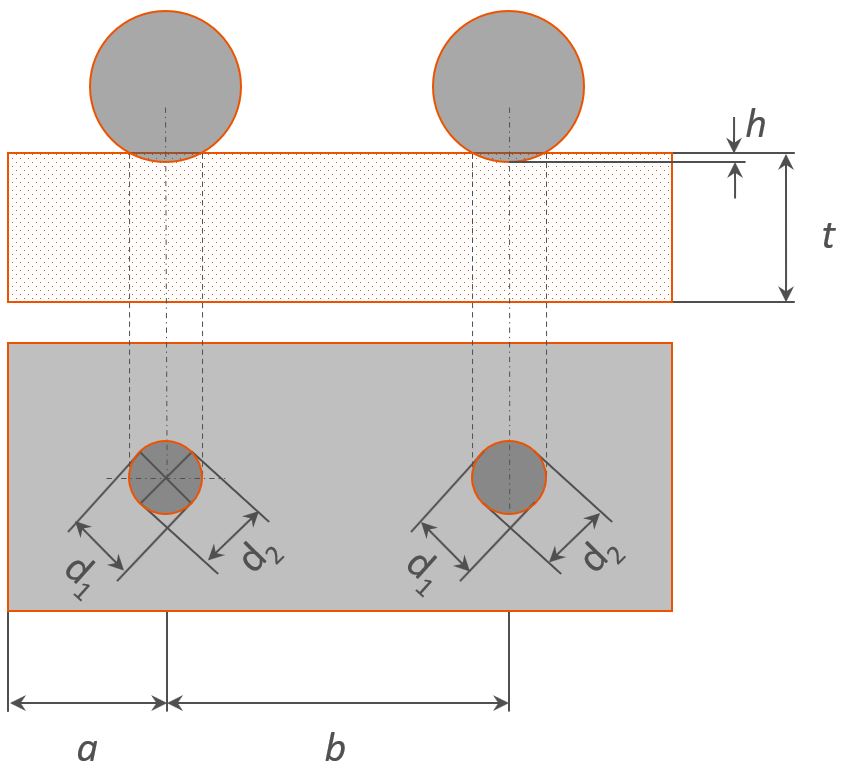

压痕间和压痕到边缘的距离

  • a ≥ 2,5 * d
  • b ≥ 3,5 * d

布氏硬度计 - 常见问题

What is a Brinell hardness tester used for?

A Brinell hardness tester is used to determine the hardness of materials by pressing a hard steel or carbide ball into the surface under a specific load. It's commonly used for testing metals and alloys to assess their suitability for various applications.

How does the Brinell hardness test work?

The test involves pressing a ball of a specific diameter into the material's surface under a predetermined load. The diameter of the indentation left on the surface is then measured, and the Brinell hardness number (BHN) is calculated using the load and the indentation size.

What materials are suitable for Brinell hardness testing?

Brinell hardness testing is ideal for metals and alloys with coarse or uneven grain structures, such as cast iron, aluminum, and steel. It's particularly useful for materials that might not provide reliable results with other hardness testing methods.

What are the advantages of using a Brinell hardness tester?

The Brinell test is advantageous for its ability to test large samples and materials with coarse grain structures. It provides a broader average of hardness due to the size of the indentation, making it less affected by surface conditions.

What factors can affect the accuracy of a Brinell hardness test?

Accuracy can be influenced by factors such as the surface finish of the specimen, the alignment of the tester, the consistency of the applied load, and the precise measurement of the indentation diameter. Proper calibration and maintenance of the equipment are essential for accurate results.
