便携式压痕测量

便携式压痕测量 Qmobile EVO Efficient & Precise One-Click Evaluation

Quick and easy Brinell hardness determination of existing indentations.

The Qmobile EVO is a mobile image evaluation unit, allowing for standard-compliant, portable Brinell evaluations in accordance with DIN EN ISO 6506 and ASTM E-10.

The user-friendly Qpix T2 software runs on an industrial tablet and enables testing directly in the field for fast data acquisition and excellent quality control.

对布氏硬度测试压痕的便携式测量

Consignment includes case
超现代的技术
通过带直射光模块的内置显微镜进行图像评估
可根据客户确定的应用更换测试头
创新型的QATM控制 – Qpix T12
与工业兼容的平板电脑
通过界面进行数据输出 (USB 2.0)
符合人体工程学系统设计

便携式压痕测量 Qmobile EVO 性能指标

^{Standard evaluation}

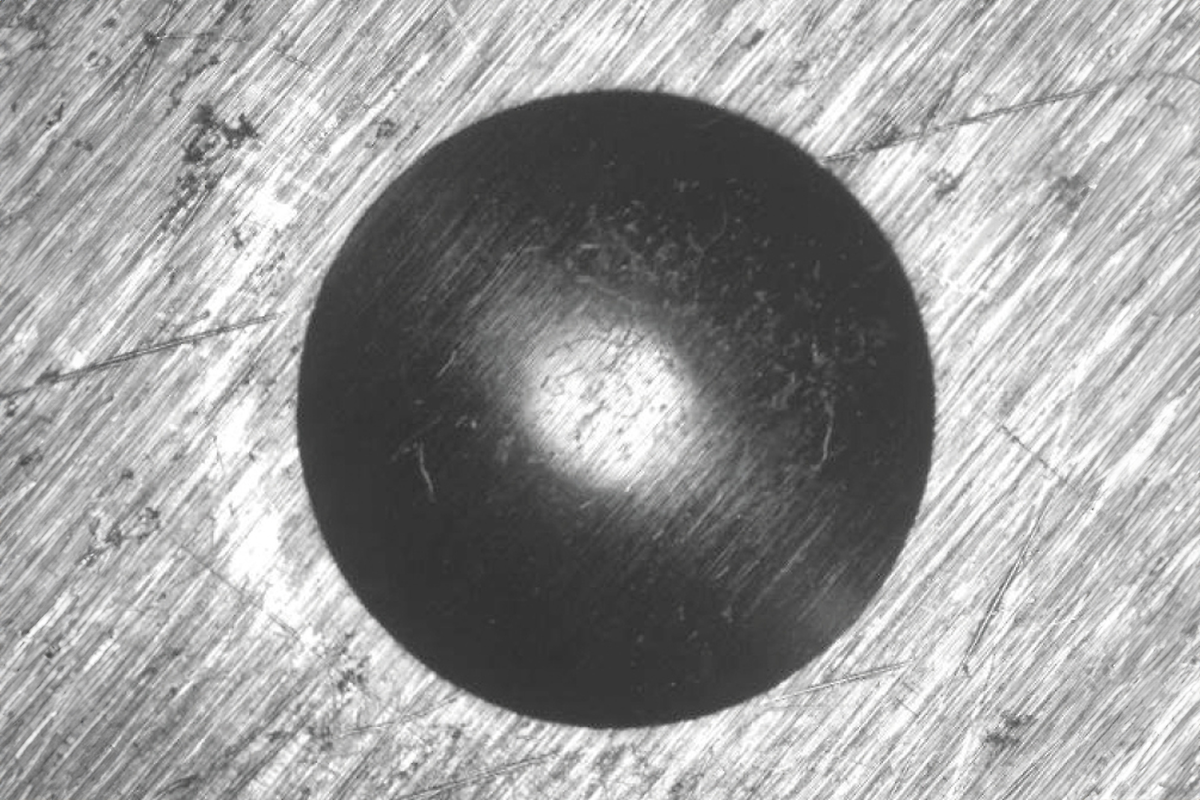

^{Evaluation with Brinell XLED technology}

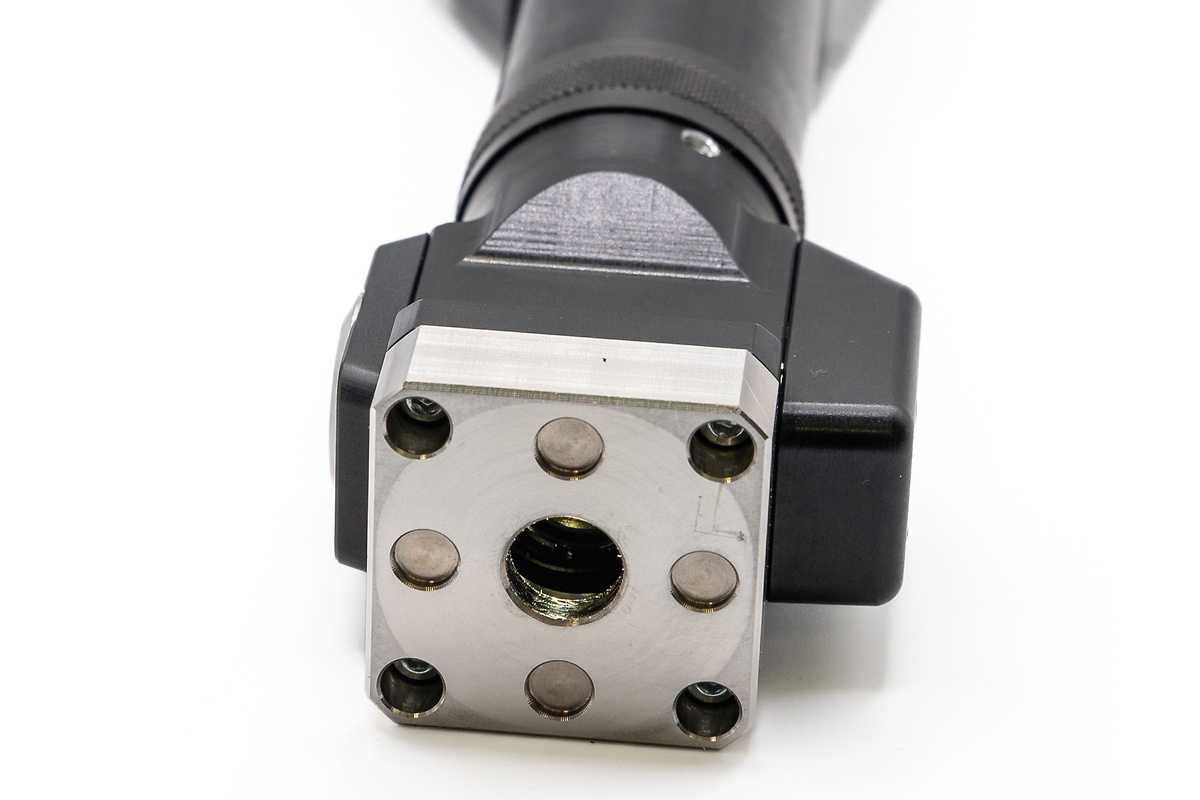

^{Replaceable support}

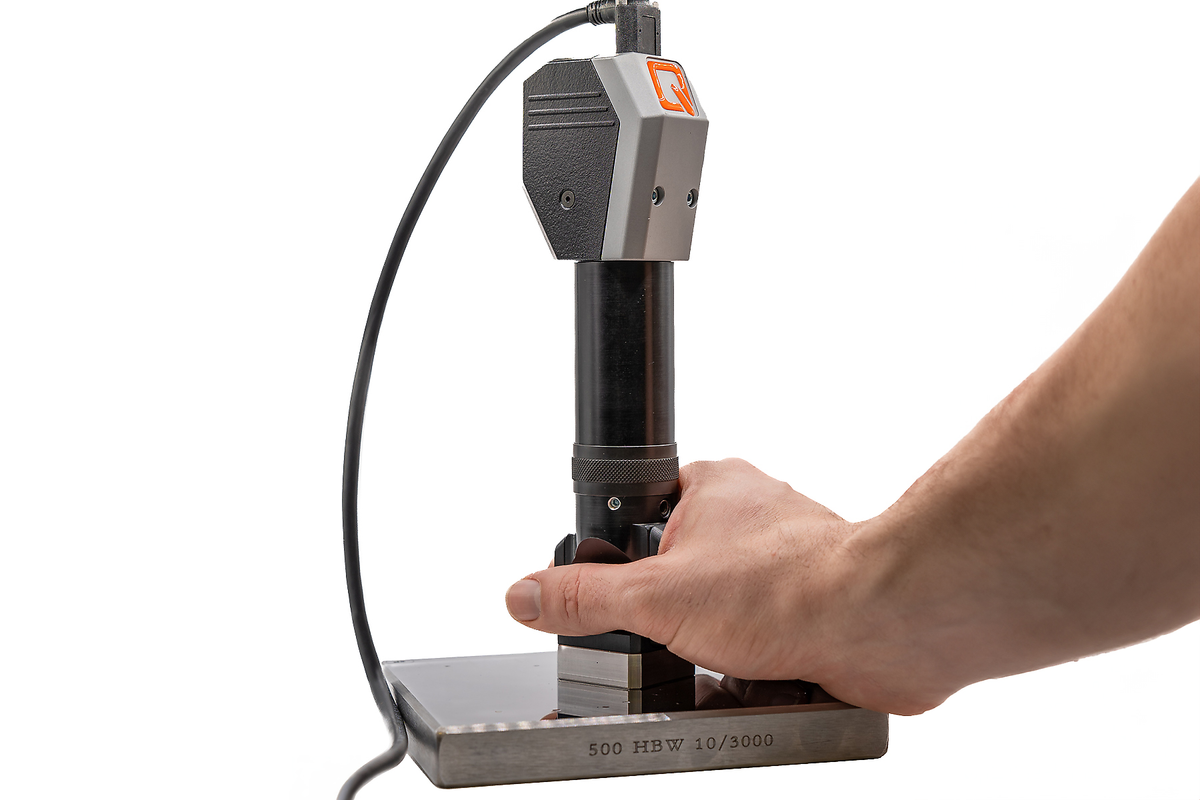

^{Indirect calibration using a hardness test block}

便携式压痕测量 Qmobile EVO 技术参数

Hardness test evaluation	Brinell: HBW 10/3000, HBW 5/750, HBW 2.5/187.5
视场	7.9 x 5.9 mm
相机	5 Megapixel
界面	1 x USB 3.0
Weight of Qmobile EVO	0.7 kg
Tablet screen	11.6”
选项	Operation via external PC
